FC-LC Single-core metal flanges Adapter SM/MM Low IL 0.3dB High Performance
Product Details:
| Place of Origin: | China, Shenzhen |
| Brand Name: | DF/OEM/Nuetral |
| Certification: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Model Number: | FC-LC Single-core metal flanges Adapter |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiable |
|---|---|
| Price: | $ 6.5/per |
| Packaging Details: | Blister box+Carton |
| Delivery Time: | 5-9 working days depends on QTY |
| Payment Terms: | Western Union,T/T,MoneyGram/Paypal |
| Supply Ability: | 1000PCS/Day |
|
Detail Information |
|||
| Product Name: | FC-LC Single-core Metal Flanges Adapter SM/MM Low IL 0.3dB High Performance | Insert Loss: | ＜0.2dB |
|---|---|---|---|
| Return Loss: | SM≥45dB | Repeatability: | ＜0.2dB |
| Optical Fiber Types Of: | SM/MM | Storage Temp Range(℃): | -40 ℃ - +75 ℃ |
| Certificate: | CE/ROHS/REACH | ||
| Highlight: | FC-LC fiber optic adapter,single-core metal flange adapter,low insertion loss fiber adapter |
||
Product Description

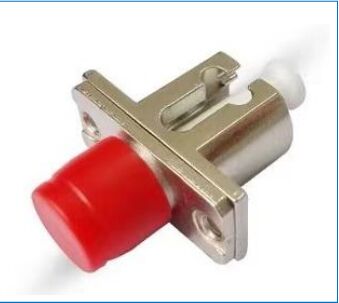

FC-LC Single-core Metal Flanges Adapter SM/MM Low IL 0.3dB High Performance
This adapter differs from ordinary adapters and is primarily used for connecting two ends with different inserting core diameters.
Applications
- Telecommunication
- CATV
- LAN & WAN
- Network
- Broadband
- FTTH
Features
- SM and MM connector can be used interchangeably
- Precision connection with sleeve
- Low insertion loss, High echo loss
- Good interchangeability and reliability
- High precision of mechanical dimensions accuracy
- Meet IEC and ROHS standards
Technical Parameters
| Parameter | Specification |
|---|---|
| Interchangeability(dB) | ≤ 0.30 |
| Insertion Loss(dB) | ≤ 0.50 |
| Repeatability(dB) | ≤ 0.30 |
| Casing Material | Zirconium dioxide ceramics |
| Storage Temperature(℃) | -40℃ to +85℃ |
| Operating Temperature Range(℃) | -20℃ to +70℃ |
Why Choose TAKFLY?
Manufacturing Excellence
- Over 25 years of manufacturing experience in fiber optic products
- More than 500 assembly workers with 5+ years of experience
- 10+ R&D Engineers dedicated to product innovation
- 16 sets of Germany imported injection machines and 16 production lines
- 30+ sets of testing equipment including OTDR, 3D, VFL, IL & RL test instruments, tension strength testers, crush resistance testers, power meter testers, and light checkers
- OEM branding available
- Regular participation in major industry exhibitions: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition
Quality Control
- Raw material incoming inspection with spot checks before production
- Comprehensive inspection after each manufacturing process
- Thorough inspection of work-in-progress
- Complete finished product inspection before packaging
- Final spot checks before shipping
Delivery & Packaging
- Samples: 1-3 working days
- Mass production orders: 3-7 working days
- Flexible packaging options: Plastic bags, cartons, and pallets available according to customer requirements
