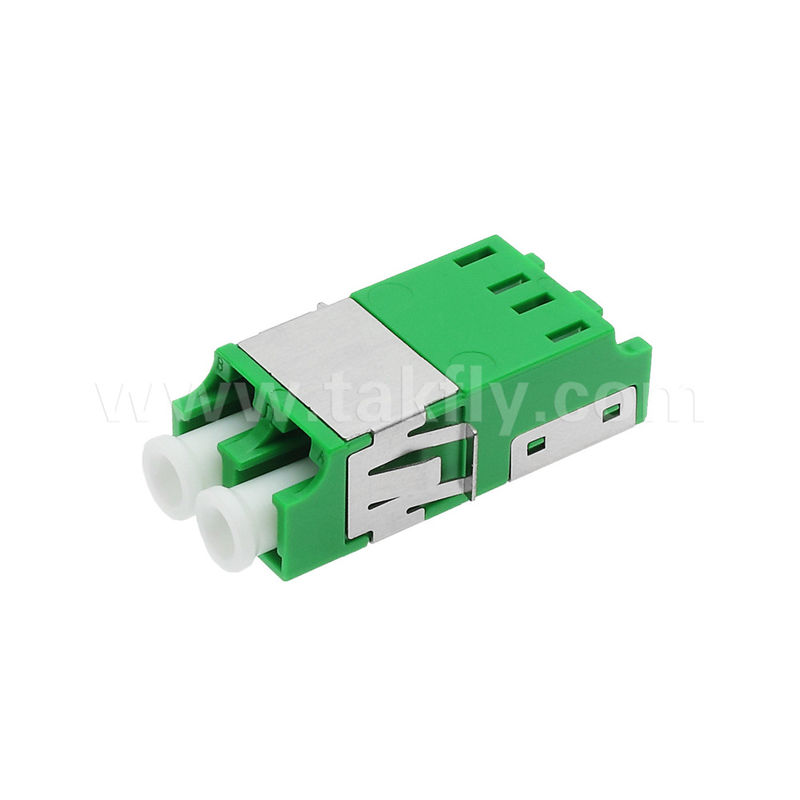

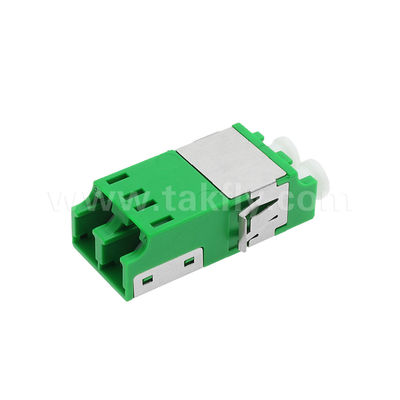

LC Duplex Fiber Optic Adapter Dust Proof Waterproof with Low Insertion Loss
Product Details:
| Place of Origin: | Guangdong, SHENZHEN |
| Brand Name: | TAKFLY |
| Certification: | CE,ROHS,REACH,ISO9001,ISO14001 |
| Model Number: | DF-5501 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Pices |
|---|---|
| Price: | US$0.01 ~ US$1200/PC |
| Packaging Details: | spone + box + carton |
| Delivery Time: | 3-7working days |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union, |
|
Detail Information |
|||
| Model No: | Fiber Optic Fast Connector | Atorage Temperatuture: | -40°C~85℃ |
|---|---|---|---|
| Wiring Devices: | ODF | Color: | Black |
| Free Sample: | Yes | Connector Outer Diameter: | 3.0mm, 2.0mm, 0.9mm |
| Housing Color: | Blue, Green, Beige | Transmission Medium: | Single-Mode |
| Feature: | Waterproof | Material: | Plastic |
| Interchangeability: | ≤0.2dB | Fiber Mode: | 62.5/125µm OM1, 50/125µm OM2 |
| Port: | Fiber Hub Box From NINGBO Port | Model Name: | Fiber Optics Connector |
| Weight: | 2kg | Repeatability: | ≤0.2dB |
| Fiber Diameter: | 125μm | Assembly Type: | Mechanical |
| Connector Module: | 3.0mm | Connector Cable Od: | 0.9mm ,2.0mm, 3.0mm |
| Durability: | ≥1000 Times | Production Capacity: | 700000pieces/Month |
| Polishing Type: | UPC, APC | Filler: | Optical Silicone Grease |
| Endurance: | 500 Cycles | Operating Temperature: | -40°C To +85°C |
| Connector Return Loss: | SMF: UPC≥50, APC≥60 ;MMF: ≥30 | Salt Spray: | 500h |
| Installation Time: | Within 60s ( No Fiber Cut ) | ||
| Highlight: | V2 LC Duplex Dust Proof Adapter,Green LC Duplex Dust Proof Adapter,HD LC Duplex Dust Proof Adapter |
||
Product Description
LC Duplex Dust Proof Adapter V2 HD of Green Without Flange
Product Features
- 9.4mm height, enabling high-strength, high-density assembly
- Built-in light baffle provides dust-proof and laser radiation protection
- Highly reliable structure design
- Built with high performance material
Applications
- Telecommunication
- CATV
- LAN & WAN
- Network
- Broadband
- FTTH
Technical Parameters
| Insertion Loss | <0.2dB |
| Extraction Force | LC1-2.5N, SC2-5N |
| Durability | 500 cycles |
| Temperature Range | -40°C to +80°C |
Available Configurations
| Colour | Meeting Standards | Sleeve | Flange | Port |
|---|---|---|---|---|
| Blue | RoHS | Ceramics | Without | 2/4/6/8/12 |
| Aqua | UL 94-V0 | Ceramics | Without | 2/4/6/8/12 |
| Rose | IEC61754-20-2012 | Ceramics | Without | 2/4/6/8/12 |
| Green | IEC61300 | Ceramics | Without | 2/4/6/8/12 |
Frequently Asked Questions
Q: Are you a manufacturer?
A: Yes, we are a manufacturer, FTTH solution and data center total solution provider in Shenzhen, China, established in 2000.
Q: What's your MOQ?
A: MOQ can be 1 pcs, but the price is not competitive. More quantity, the price will be more competitive.
Q: Can you quote FOB price?
A: Yes. We can deliver by air, DHL, TNT, UPC, FEDEX, etc. For big quantity we will deliver it by sea. We can quote price with freight and lead time for you, after you let us know detailed requirements with quantity. We have competitive shipping forwarders.
Q: How is your quality?
A: Our production is according to IEC, Europe standard. CE, ISO, RoHS, CPR, and ANATEL certified. All products are 100% tested before delivery.
Q: What's your lead time?
A: It depends on the quantity and products. For fiber optic patch cord, the lead time can be 2-3 working days within 5000 pcs. We keep regular products in stock and can handle urgent orders.
Q: What's your warranty?
A: Depending on different products, we have 1 year warranty for patch cord since delivery, but only responsible for non-artificial damage. For artificial damage, we can repair it for free, freight will be paid by your side.
Q: What's your packing?
A: International export standard package. If you need to print your logo on the packing, please let us know before we quote.
Q: Can you offer OEM/ODM?
A: Yes, we can. All products accept OEM/ODM. We can sign the Confidentiality Agreement.
Q: Can I have a sample?
A: It depends on which products. Free sample provided under $10 USD. Freight will be paid by buyer before delivery.
Q: How can I order?
A:
- Send mail or inquiries with product name, specification, and quantity to us. Provide your receive address if you need FOB, CIF, CFR price.
- We will offer our quotation with lead time.
- After quotation confirmed, we will send a PI with our bank account.
- Production will be arranged after payment received.
- Confirm the consignee with you before we deliver.
- The tracking number will be provided after delivery.
Q: What is your payment term?
A: T/T, Western Union, Paypal, at once. For big amounts, can be 50% deposit in advance, 50% balance paid before delivery.
With the same quality standard, if you could get better price from the market, TAKFLY also could support you same price.
