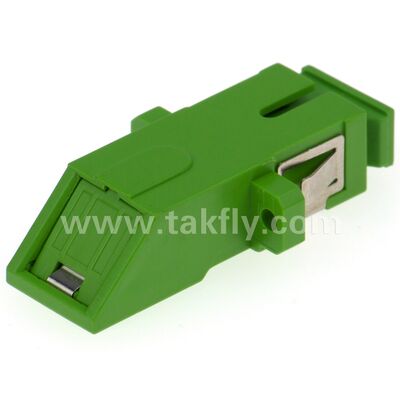

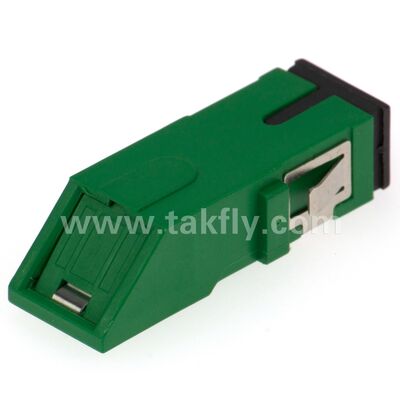

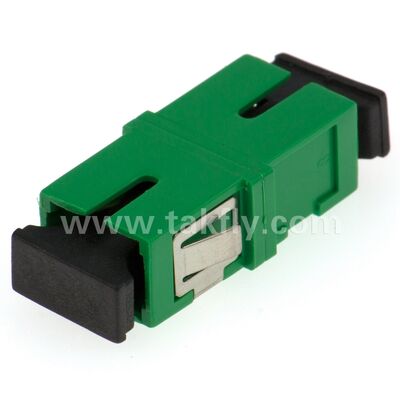

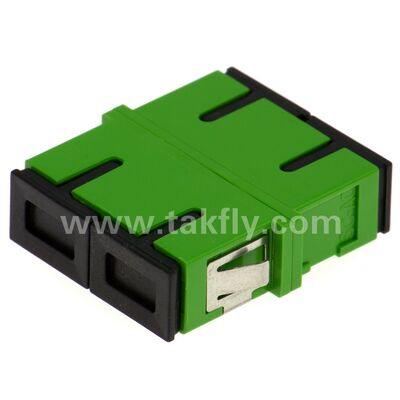

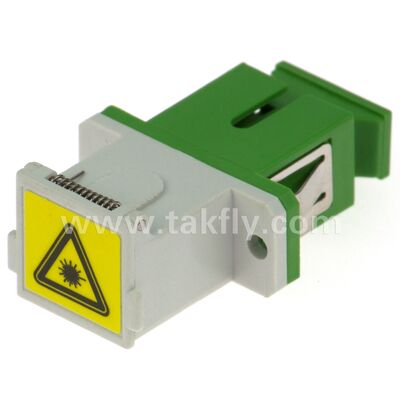

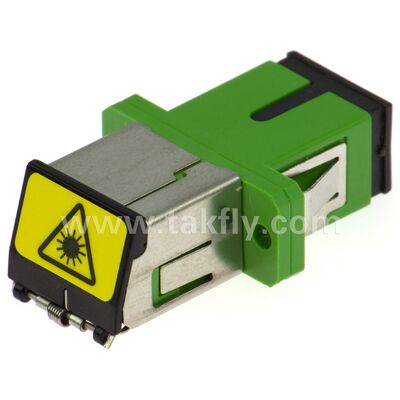

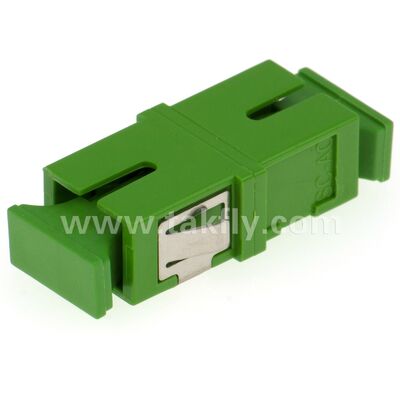

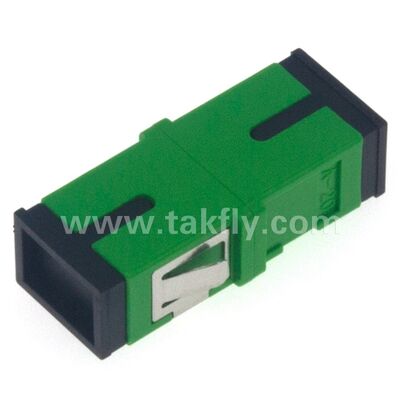

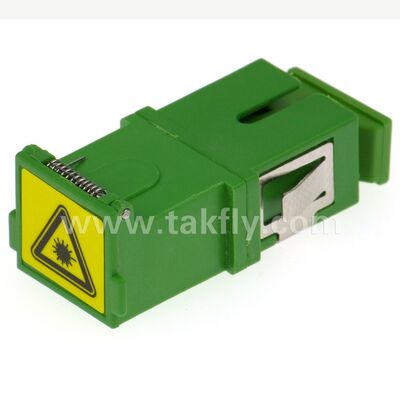

SC Zirconia Sleeve Fiber Optic Adapter with Duplex Option and Flangeless Configuration
Product Details:
| Place of Origin: | Guangdong, SHENZHEN |
| Brand Name: | TAKFLY |
| Certification: | CE,ROHS,REACH,ISO9001,ISO14001 |
| Model Number: | DF-5501 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Pices |
|---|---|
| Price: | US$0.01 ~ US$1200/PC |
| Packaging Details: | spone + box + carton |
| Delivery Time: | 3-7working days |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
|
Detail Information |
|||
| Model No: | Fiber Optic Fast Connector | Atorage Temperatuture: | -40°C~85℃ |
|---|---|---|---|
| Wiring Devices: | ODF | Color: | Black |
| Free Sample: | Yes | Connector Outer Diameter: | 3.0mm, 2.0mm, 0.9mm |
| Housing Color: | Blue, Green, Beige | Transmission Medium: | Single-Mode |
| Feature: | Waterproof | Material: | Plastic |
| Interchangeability: | ≤0.2dB | Fiber Mode: | 62.5/125µm OM1, 50/125µm OM2 |
| Port: | Fiber Hub Box From NINGBO Port | Model Name: | Fiber Optics Connector |
| Weight: | 2kg | Repeatability: | ≤0.2dB |
| Fiber Diameter: | 125μm | Assembly Type: | Mechanical |
| Connector Module: | 3.0mm | Connector Cable Od: | 0.9mm ,2.0mm, 3.0mm |
| Durability: | ≥1000 Times | Production Capacity: | 700000pieces/Month |
| Polishing Type: | UPC, APC | Filler: | Optical Silicone Grease |
| Endurance: | 500 Cycles | Operating Temperature: | -40°C To +85°C |
| Connector Return Loss: | SMF: UPC≥50, APC≥60 ;MMF: ≥30 | Salt Spray: | 500h |
| Installation Time: | Within 60s ( No Fiber Cut ) | ||
Product Description

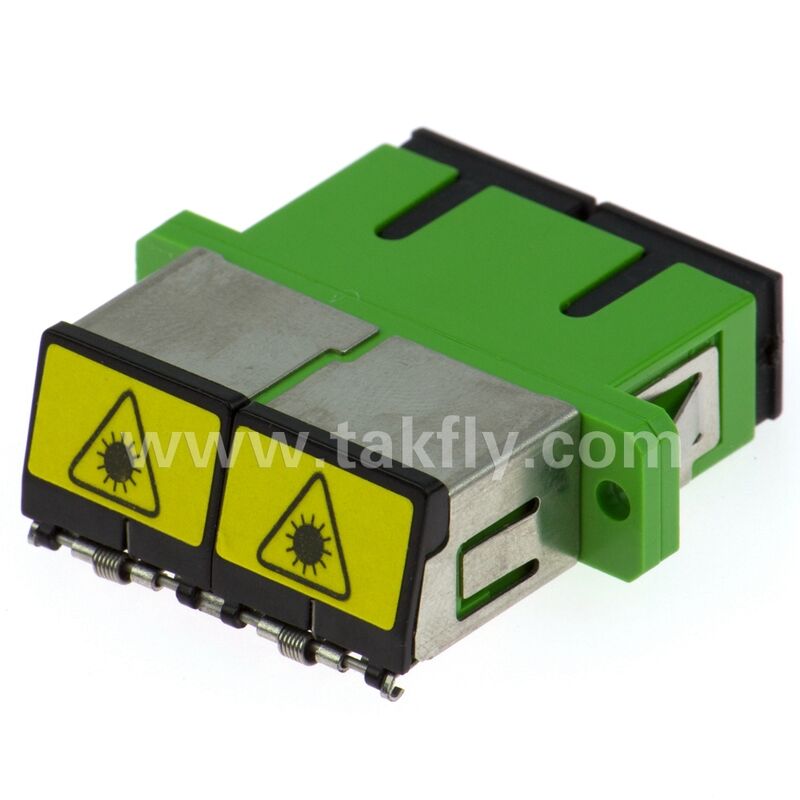

SC Zirconia Sleeve with Flange Option for Duplex and Flangeless Configuration Adapter
Technical Parameters
| Product | SC Adapter |
|---|---|
| Mode | SM | MM |
| Insertion Loss | ≤0.2dB |
| Mating Durability (500 times) | Additional Loss ≤0.1dB |
| Temperature Stability (-40℃~85℃) | Additional Loss ≤0.2dB |
| Operating Temperature | -40℃~+85℃ |
| Storage Temperature | -40℃~+85℃ |
Product Features
- Single mode and Multimode compatibility
- Zirconia sleeves for superior performance
- NTT standard compatible
- Available without flanges or with flange for duplex, saving panel space
- Meet JIS5974 and bellcore GR-326 standards
- Compliant with IEC874-14 & IEC874-19
- All parts compliant with ROHS requirements
Applications
- Telecommunication systems
- CATV networks
- LAN & WAN infrastructure
- Network installations
- Broadband applications
- FTTH deployments
Frequently Asked Questions
How is your quality?
Our production follows IEC and European standards. We are CE, ISO, RoHS, CPR, and ANATEL certified. All products undergo 100% testing before delivery.
What's your MOQ?
MOQ can be 1 piece, but pricing is more competitive with larger quantities.
What's your lead time?
Lead time depends on quantity and product type. For fiber optic patch cords, lead time is 2-3 working days for orders up to 5000 pieces. We maintain stock for regular products and can accommodate urgent orders.
What's your warranty?
We offer 1-year warranty for patch cords from delivery date, covering non-artificial damage only. For artificial damage, we provide free repair services with freight paid by the customer.
What is your payment term?
We accept T/T, Western Union, Paypal, and MoneyGram. For large amounts, we require 50% deposit in advance with 50% balance paid before delivery.
What's your packing?
We use international export standard packaging. Custom logo printing is available upon request during quotation.
Are you a manufacturer?
Yes, we are a manufacturer and FTTH solution/data center total solution provider based in Shenzhen, China, established in 2000.
Can you offer OEM/ODM?
Yes, all products accept OEM/ODM services. We can sign Confidentiality Agreements.
Can you quote FOB price?
Yes. We deliver by air (DHL, TNT, UPS, FEDEX) or by sea for large quantities. We provide competitive shipping solutions with detailed quotes based on your requirements.
Can I have a sample?
Free samples are available for products under $10 USD. Freight costs are paid by the buyer before delivery.
How can I order?
- Send inquiry with product name, specification, quantity, and delivery address
- We provide quotation with lead time
- After confirmation, we send Proforma Invoice with bank details
- Production begins after payment receipt
- Confirm consignee details before delivery
- Tracking number provided after shipment
With the same quality standard, if you find better pricing in the market, TAKFLY can match the same price.
