LC Square Bare Fiber Adapter SM/MM Low IL 0.2dB High Performance
Product Details:
| Place of Origin: | China, Shenzhen |
| Brand Name: | DF/OEM/Nuetral |
| Certification: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Model Number: | LC Square Bare Fiber Adapter SM/MM Low IL 0.2dB High Performance |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiable |
|---|---|
| Price: | negotiable denpend on QTY |
| Packaging Details: | Blister box+Carton |
| Delivery Time: | 5-9 working days depends on QTY |
| Payment Terms: | Western Union,T/T,MoneyGram/Paypal |
| Supply Ability: | 1000PCS/Day |
|
Detail Information |
|||
| Product Name: | LC Square Bare Fiber Adapter SM/MM Low IL 0.2dB High Performance | Ferrule The Inside Diameter Of: | 125/126/127um |
|---|---|---|---|
| Ferrule Outside Diameter: | 2.5mm /1.25mm | Intertion Loss: | <0.2 DB |
| Return Loss: | <0.2 DB | Optical Fiber Types Of: | SM/MM |
| Plug And Pull Frequency: | ＞1000times | Storage Temp Range(℃): | -40℃~+ 80℃ |
| Certificate: | CE/ROHS/REACH | ||
| Highlight: | LC square fiber optic adapter,SM/MM fiber adapter low IL,high performance bare fiber adapter |
||
Product Description

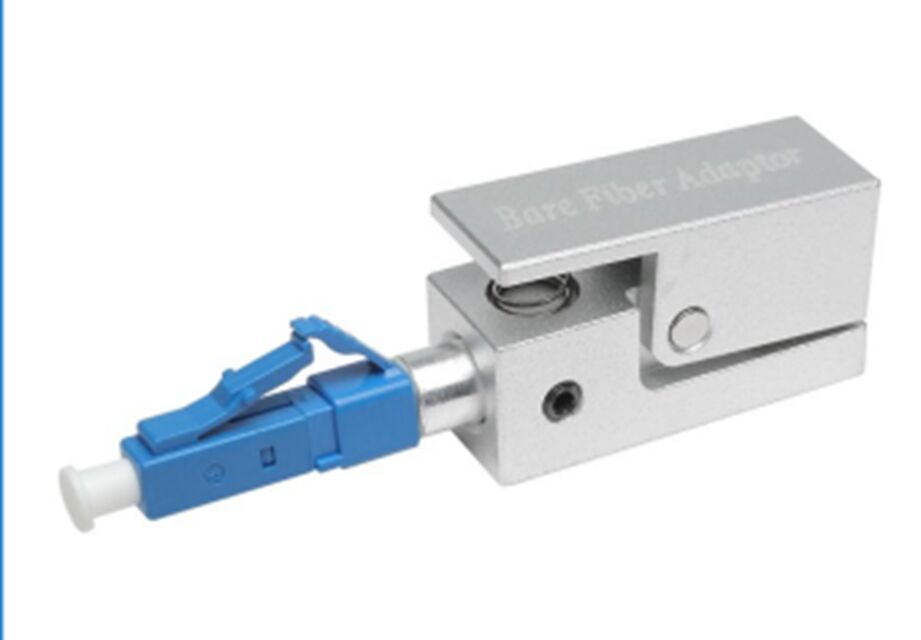

LC Square Bare Fiber Adapter SM/MM Low IL 0.2dB High Performance
LC Square Bare Fiber Adapter SM/MM Low IL 0.2dB High Performance
LC Square Bare Fiber Adapter Overview
Bare fiber adapter is an auxiliary tool for optical fiber data testing. Because the bare adapter plug hole and bare fiber through the hole without epoxy glue and any medium, the bare fiber is easy to be inserted and pulled out and repeatedly used, and has low insertion loss and easy operate.
LC Square Bare Fiber Adapter Applications
- Acting on bare fiber, temporary connection OTDR, optical power meter, light source and other fiber port data and test instrumentation equipment
- Temporary connection of optical fiber and emergency repair of optical fiber
- The use of rubber-clamped fiber, the fiber test more round bare fiber adapter less impact, the device manufacturers to test better
LC Square Bare Fiber Adapter Features
- Easy to operate intuitive, can be observed by the naked eye
- Single mode and multimode fiber are available
- The use of unique metal sheet crimp fiber clamp design, safe, reliable, low insertion loss
- The inserts and through holes are free of epoxy glue and any medium, easy to nail fiber insert, pull out and repeat multiple use
- The ferrule and connector modules can be replaced, the size of the ferrule and the connector can be customized and can be varied
FC Round Bare Fiber Adapter Parameters
| Parameter | Specification |
|---|---|
| Ferrule inside diameter | 125/126/127μm |
| Ferrule outside diameter | 2.5mm / 1.25mm |
| Insertion loss | <0.2dB |
| Repeatability | <0.2dB |
| Optical fiber types | SM/MM |
| Plug and pull frequency | >1000 times |
| Storage temperature range | -40℃ to +80℃ |
Why Choose TAKFLY
Manufacturing Excellence
- Over 25 years of manufacturing experience in fiber optic products
- More than 500 assembly workers with 5+ years of experience
- 10+ R&D Engineers dedicated to product innovation
- 16 sets of Germany imported injection machines and 16 production lines
- 30+ sets of testing equipment including OTDR, 3D, VFL, IL & RL test instruments, tension strength testers, crush resistance testers, power meter testers, and light checkers
- OEM branding available
- Regular participation in major industry exhibitions: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition
Quality Control
- Raw material incoming inspection with spot checks before production
- Comprehensive inspection after each manufacturing process
- Thorough inspection of work-in-progress
- Complete finished product inspection before packaging
- Final spot checks before shipping
Delivery & Packaging
- Samples: 1-3 working days
- Mass production orders: 3-7 working days
- Flexible packaging options: Plastic bags, cartons, and pallets available according to customer requirements
Interested in our products or have questions?
Feel free to contact us at any time for more information or technical support.
