Fiber Optic PLC Splitter specification
Product Details:
| Place of Origin: | China, Shenzhen |
| Brand Name: | DF/OEM/Nuetral |
| Certification: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Model Number: | Fiber Optic PLC Splitter |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiable |
|---|---|
| Price: | negotiable denpend on QTY |
| Packaging Details: | Blister box+Carton |
| Delivery Time: | 5-9 working days depends on QTY |
| Payment Terms: | Western Union, T/T, MoneyGram/Paypal |
| Supply Ability: | 1000PCS/Day |
|
Detail Information |
|||
| Product Name: | Fiber Optic PLC Splitter Specification | Operating Wavelength(nm): | 1260 ~ 1650 |
|---|---|---|---|
| Type（1*N）: | 1*2 1*4 1*8 1*16 1*32 1*64 | Max.Insertion Loss（dB）: | 3.9 7.2 10.3 13.5 16.8 20.3 |
| Min.Return Loss（dB）: | 55 | Fiber Type: | ITU-T G657A1 , G657A2 And G.652D |
| Max.Temperature Stability（dB）: | 0.5( Typical 0.3 ) | Operating Temperature（℃）: | -40 ~ +85 |
| Fiber Brand: | Corning, YOFC, OFS, Draka | ||
| Highlight: | Fiber Optic PLC Splitter specifications,PLC Splitter fiber optic component,Fiber optic splitter with warranty |
||
Product Description

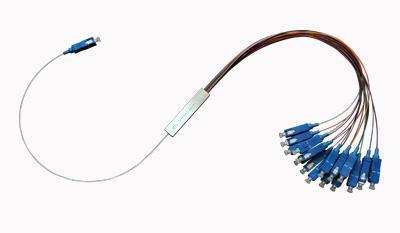

Fiber Optic PLC Splitter
Product Overview
PLC (Planar Lightwave Circuit) Splitter is a power distribution device based on integrated quartz substrate technology. Single Mode PLC 1×N and 2×N Splitters uniformly divide optical signals from one or two inputs to multiple outputs. These splitters can also operate in reverse to combine multiple signals into one or two fibers.
Applications
- Telecommunication sector
- PON Systems
- FTTH (Fiber to the Home)
- CATV
- Video Transmission
Product Features
- Broadband Operation Wavelength
- Low Insertion Loss
- Low PDL (Polarization Dependent Loss)
- Compact Design
- Excellent Channel-to-Channel Uniformity
- High Reliability and Stability
Technical Specifications
| Parameter | Value |
|---|---|
| Operating Wavelength (nm) | 1260 ~ 1650 |
| Fiber Type | ITU-T G657A1, G657A2 and G.652D |
| Max. Temperature Stability (dB) | 0.5 (Typical 0.3) |
| Operating Temperature (°C) | -40 ~ +85 |
| Storage Temperature (°C) | -40 ~ +85 |
1×N Splitter Performance
| Type | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 |
|---|---|---|---|---|---|---|
| Max. Insertion Loss (dB) | 3.9 | 7.2 | 10.3 | 13.5 | 16.8 | 20.3 |
| Max. Uniformity (dB) | 0.8 | 0.8 | 0.8 | 1.0 | 1.5 | 2.0 |
| Max. PDL (dB) | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 |
2×N Splitter Performance
| Type | 2×2 | 2×4 | 2×8 | 2×16 | 2×32 | 2×64 |
|---|---|---|---|---|---|---|
| Max. Insertion Loss (dB) | 4.2 | 7.5 | 10.6 | 13.9 | 17.2 | 20.8 |
| Max. Uniformity (dB) | 0.8 | 1.0 | 1.2 | 1.5 | 1.8 | 2.0 |
| Max. PDL (dB) | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 |
Note: All measurements are made at room temperature, and connectors are not included.
Packaging Dimensions
1×N Splitter Packaging
| Package Type | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 |
|---|---|---|---|---|---|---|
| Basic Metal Box (L×W×H mm) | 40×4×4 | 40×4×4 | 40×4×4 | 50×7×4 | 60×7×4 | 60×12×4 |
| Mini Module Metal Box (mm) | 60×7×4 | 60×7×4 | 60×7×4 | 60×12×4 | 80×20×6 | 100×40×6 |
| Module Plastic Box (mm) | 100×80×10 | 100×80×10 | 100×80×10 | 120×80×18 | 120×80×18 | 140×115×18 |
2×N Splitter Packaging
| Package Type | 2×2 | 2×4 | 2×8 | 2×16 | 2×32 | 2×64 |
|---|---|---|---|---|---|---|
| Basic Metal Box (L×W×H mm) | 60×7×4 | 60×7×4 | 60×7×4 | 60×7×4 | 60×7×4 | 80×12×4 |
| Mini Module Metal Box (mm) | 70×7×4 | 70×7×4 | 70×7×4 | 80×12×4 | 80×20×6 | 100×40×6 |
| Module Plastic Box (mm) | 100×80×10 | 100×80×10 | 100×80×10 | 120×80×18 | 120×80×18 | 140×115×18 |
