FTTH Fiber Optic PLC Splitter 1x16 Low Insertion Loss
Product Details:
Place of Origin: | Shenzhen, China |
Brand Name: | TAKFLY |
Certification: | CE, ROHS, Reach, ISO9001, ISO14001 |
Model Number: | PLC Splitter |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 Piece |
---|---|
Price: | USD |
Packaging Details: | Carton |
Delivery Time: | 3-7 Working Days After Received the Payment |
Payment Terms: | T/T, Western Union, Paypal etc. |
Detail Information |
|||
Product Name: | FTTH 1x16 Rack Mount Fiber Optic PLC Splitter | Fiber Connector Type: | SC / LC / ST / FC / E2000 / DIN / D4 Etc. |
---|---|---|---|
Package Style: | Rack Mount, ABS Plastic Box, Mini Steel Box | Fiber Type: | Singlemode G.657A1 |
Configuration Type: | 1x2 / 4 / 8 / 16 /32 /64 Ways | Operating Bandwidth: | 1260~1650nm |
Application: | FTTH FTTB FTTX PON CATV,FTTX Systems/PON Networks/CATV Links/Optical Signal Distribution,LAN,CATV Metro,Networking | Warranty: | 2 Years |
High Light: | FTTH Fiber Optic PLC Splitter,1650nm plc optical splitter,Fiber Optic PLC Splitter 1x16 |
Product Description

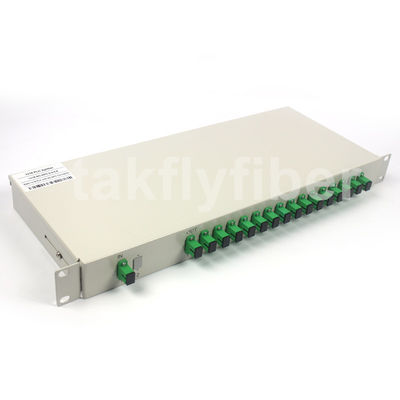

FTTH 1x16 Rack Mount Fiber Optic PLC Splitter
1x16 Fiber PLC Splitter - Introduction :
PLC (Planar Lightwave Circuit) splitters are Single Mode Splitters with an even split ratio from one input fiber to multiple output fibers.
Takfly provides a various of 1×N and 2×N PLC splitters, including 1×2 to 1×64 and 2×2 to 2×64 1U Rack Mount type fiber PLC splitters.
Single Mode PLC 1×N and 2×N Splitter divide uniformly optical signals from one or two inputs to multiple outputs, and spliter can be operated in reverse direction to combine multiple signals into fiber or two fibers.
1x16 Fiber PLC Splitter - Applications :
● Telecommunication sector
● PON Syster
● FTTH
● CATV
● Video Transmission
1x16 Fiber PLC Splitter - Feature :
● Broadband Operation Wavelength
● Low Insertion loss
● Low PDL
● Compact Design
● Good channel-to-channel uniformity
● High Reliability and Stability
1x16 Fiber PLC Splitter- Specification :
Item | Parameter | |||||
Operating Wavelength(nm) | 1260 ~ 1650 | |||||
Type(1*N) | 1*2 | 1*4 | 1*8 | 1*16 | 1*32 | 1*64 |
Insertion Loss(dB) | 3.9 | 7.2 | 10.3 | 13.5 | 16.8 | 20.3 |
Max.Uniformity(dB) | 0.8 | 0.8 | 0.8 | 1.0 | 1.5 | 2.0 |
Min.Return Loss(dB) | 55 | |||||
Max.PDL(dB) | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 |
Type(2*N) | 2*2 | 2*4 | 2*8 | 2*16 | 2*32 | 2*64 |
Max.Insertion Loss(dB) | 4.2 | 7.5 | 10.6 | 13.9 | 17.2 | 20.8 |
Max.Uniformity(dB) | 0.8 | 1.0 | 1.2 | 1.5 | 1.8 | 2.0 |
Min.Return Loss(dB) | 55 | |||||
Max.PDL(dB) | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 |
Fiber Type | ITU-T G657A1 , G657A2 and G.652D | |||||
Max.Temperature Stability(dB) | 0.5( Typical 0.3 ) | |||||
Operating Temperature(℃) | -40 ~ +85 | |||||
Storage Temperature(℃) | -40 ~ +85 |
All measurement are made at room temperature, and connectors not included
1x16 Fiber PLC Splitter - Picture :
