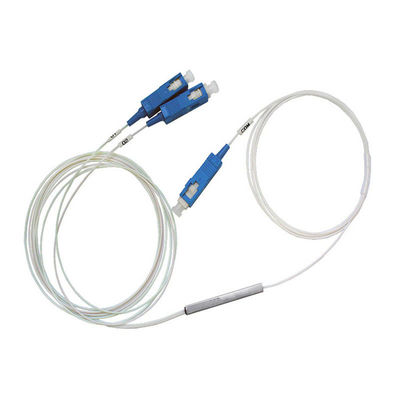

1x2 SC APC Single Mode Fiber Optic PLC Splitter Hydrel Fiber Cable Mini Steel Tube
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | Takfly/OEM |
| Certification: | CE, ISO, RoHS, CPR, FCC |
| Model Number: | SC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50 pcs |
|---|---|
| Price: | Can be negotiated |
| Packaging Details: | standard export packing |
| Delivery Time: | 3-15 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram, Paypal |
| Supply Ability: | 100000 pcs/ Month |
|
Detail Information |
|||
| Product Name: | 1x2 SC APC Single Mode Hydrel Fiber Cable Mini Steel Tube PLC Splitter | Connector: | SC |
|---|---|---|---|
| Mode: | SM | Cable Diameter: | 0.9mm |
| Cable Color: | White | Packing: | Mini Steel Tube |
| Length: | Input 1M; Output 1M | Operating Wavelength(nm): | 1260 ~ 1650 |
| Type: | 1*2 | Max.Insertion Loss（dB）: | 3.9 |
| Max.Uniformity（dB）: | 0.8 | Min.Return Loss（dB: | 55 |
| Max.PDL（dB）: | 0.2 | Fiber Type: | ITU-T G657A1 , G657A2 And G.652D |
| Max.Temperature Stability （dB）: | 0.5( Typical 0.3 ) | Operating Temperature（℃: | -40 ~ +85 |
| Storage Temperature（℃）: | -40 ~ +85 | ||
| High Light: | 1x2 SC APC Fiber Optic PLC Splitter,1x2 fiber splitter,0.9mm Fiber Optic PLC Splitter |
||
Product Description
Fiber Optic PLC Splitter Product Name:
1x2 SC APC single mode Hydrel fiber cable mini steel tube PLC splitter
Fiber Optic PLC Splitter introduction:
A fiber optic splitter is a device used to separate and connect light wave energy. It allocates the light energy transmitted in one fiber to two or more fibers at a given scale or synthesizes the light energy transmitted in multiple fibers into one fiber. A light passive device that decomposes a fiber optic signal into multiple optical signal outputs.
When a single-mode fiber conducts a light signal, the energy of light is not entirely concentrated in the fiber core propagation A small amount is transmitted through a cladding close to the fiber core, that is, if the fiber core of the two fibers is close enough, the mold field of the light transmitted in one fiber can enter another optical fiber signal to be redistributed in the two fibers
Fiber Optic PLC Splitter Feature:
- Broadband Operation Wavelength
- Low Insertion loss
- Low PDL
- Compact Design
- Good channel-to-channel uniformity
- High Reliability and Stability
Fiber Optic PLC Splitter Application:
- Telecommunication sector
- PON System
- FTTH
- CATV
- Video Transmission
Fiber Optic PLC Splitter Parameter:
1×N PLC Splitter
(Measured at room temperature and excludes connector loss)
| Type | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | ||
| Fiber Type | ITU-T G657A1 , G657A2 and G.652D | ||||||
| Operating Wavelength (nm) | 1260~1650 | ||||||
| Insertion Loss (dB) | Typical | 3.6 | 6.8 | 10.0 | 13.0 | 16.0 | |
| (P/S) Max | 3.8/4.0 | 7.1/7.3 | 10.2/10.5 | 13.5/13.7 | 16.5/16.8 | ||
| Loss Uniformity (dB) | Max | 0.6 | 0.6 | 0.8 | 1.2 | 1.5 | |
| Polarization Dependent Loss (dB) | Max | 0.15 | 0.15 | 0.25 | 0.3 | 0.3 | |
| Directivity (dB) | Min | 55 | |||||
| Return Loss (dB) | Min | UPC:50 APC:55 | |||||
| Operating Temperature(℃) | -40~85 | ||||||
| Storage Temperature(℃) | -40~85 | ||||||
2×N PLC Splitter
(Measured at room temperature and excludes connector loss)
| Type | 2×2 | 2×4 | 2×8 | 2×16 | 2×32 | 2×64 | |
| Fiber Type | ITU-T G657A1 , G657A2 and G.652D | ||||||
| Operating Wavelength (nm) | 1260~1650 | ||||||
| Insertion Loss (dB) | Typical | 4.0 | 7.0 | 10.5 | 13.5 | 16.5 | 20.5 |
| (P/S) Max | 4.1/4.3 | 7.4/7.6 | 10.8/11.0 | 14.3/14.5 | 17.3/17.5 | 20.7/21.5 | |
| Loss Uniformity (dB) | Max | 0.8 | 0.8 | 1.5 | 2.0 | 2.5 | 2.5 |
| Polarization Dependent Loss (dB) | Max | 0.2 | 0.2 | 0.3 | 0.4 | 0.4 | 0.4 |
| Directivity (dB) | Min | 55 | |||||
| Return Loss (dB) | Min | UPC:50 APC:55 | |||||
| Operating Temperature(℃) | -40~85 | ||||||
| Storage Temperature(℃) | -40~85 | ||||||
Package Dimensions
| Port | 1x2 | 2x2 | 1x4 | 2x4 | 1x8 | 2x8 | 1x16 | 2x16 | 1x32 | 2x32 | 1x64 | 2x64 |
How to order Fiber Optic PLC Splitter:
1. Connector type : SC / FC / LC / ST/ E2000
2. Mode type : single mode UPC and APC
3. Cable diameter : 0.9 / 2.0 / 3.0 mm
4. Packing type : mini steel tupe / ABS box
5. fiber count : 1xN, 2xN(1x2,1x4, 2x2, 2x4,etc)
FQA :
1. Q: Are you a manufacturer?
A: yes, we are a manufacturer, FTTH solution, and data center total solution provider in Shenzhen, China, established in 2000.
2. Q: What's your MOQ?
A: MOQ can be 1 pcs, but the price is not competitive. With more quantity, the price will be more competitive.
3. Q: Can you quote the FOB price?
A: yes. We can deliver by air, DHL, TNT, UPC, FEDEX, etc. For big quantity, we will deliver it by sea.
We can quote the price with freight and lead time for you after you let us know detailed requirements with quantity.
We have competitive shipping forwarders. For more solutions, you can feel free to contact us.
4. Q: How is your quality?
A: Our production is according to IEC, Europe standard. CE, ISO, RoHS, CPR, and ANATEL certified.
All the products are 100% test before delivery.
5. Q: What's your lead time?
A: It depends on the quantity and products. For fiber optic patch cord, the lead time can be 2 -3 working days within 5000 pcs. We keep the regular products in stock. Also, we can deal with urgent orders.
6. Q: What's your warranty?
A: Depends on different products, we have1 years warranty for the patch cord since delivery, but only responsible for non-artificial damage. For artificial damage, we can repair it for you for free, freight will be paid by your side.
7. Q: What's your packing?
A: International export standard package. If you need to print your logo on the packing, please let us know before we quote.
8. Q: Can you offer OEM/ODM?
A: yes, we can. all products accept OEM /ODM. we can sign the Confidentiality Agreement.
9. Q: Can I have a sample?
A: It depends on which products, Free samples provide under 10 USD. Freight will be paid by the buyer before delivery.
10. Q: How can I order?
A:1.send mail or inquiries with product name, specification, and quantity to us. Provide your receive address if you need FOB, CIF, CFR price.
2.We will offer our quotation with lead time.
3.After the quotation confirmed, we will send a PI with our bank account.
4.Production will be arranged after the payment received.
5.Confirm the consignee with you before we deliver it.
6.The tracking number will be provided after the delivery.
- Q: What your payment term?
A: T/T, Western Union, Paypal, MoneyGram at once. For big amounts, can be 50% deposit in advance, 50% balance paid before delivery.
