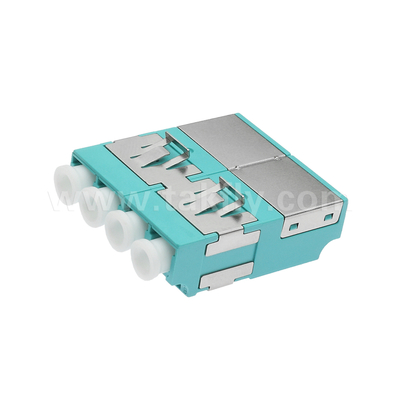

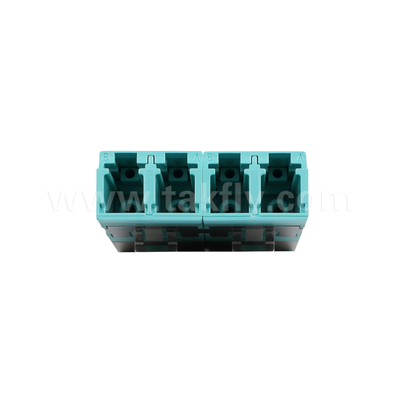

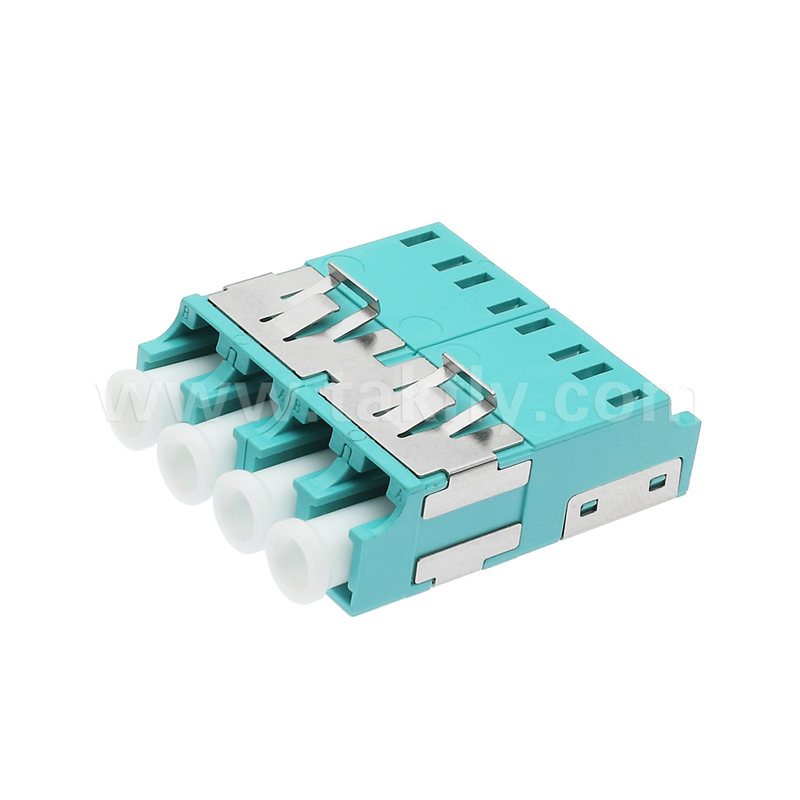

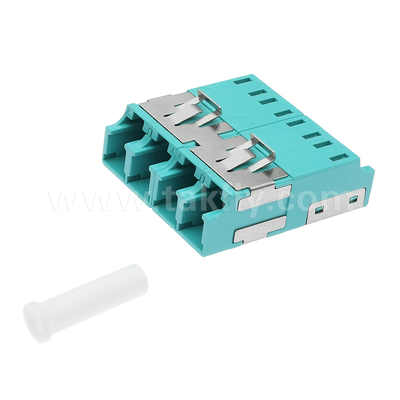

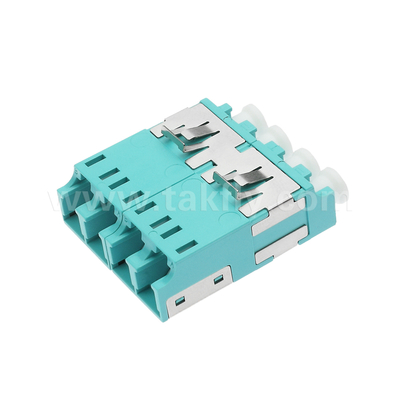

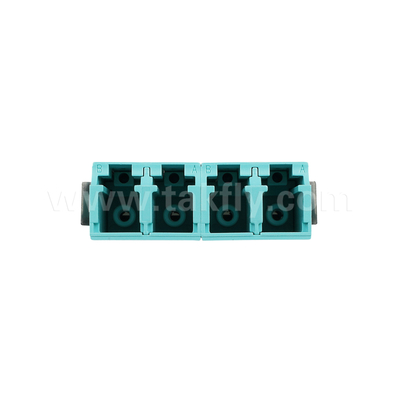

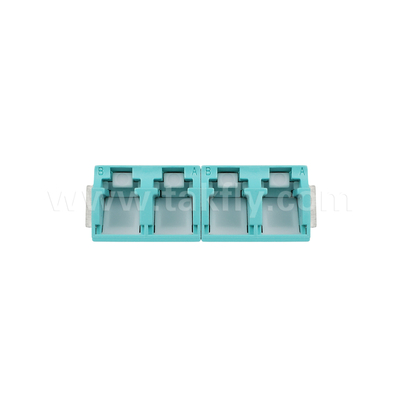

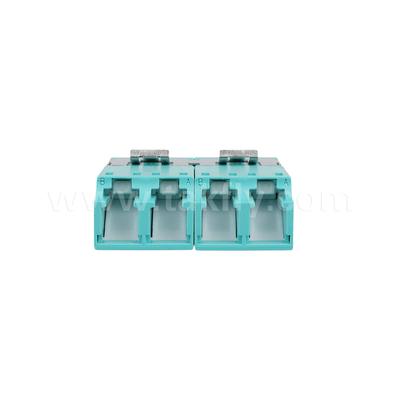

LC Quad Fiber Optic Adapter APC UPC Multimode Without Flange
Product Details:
| Place of Origin: | China |
| Brand Name: | OEM |
| Certification: | CE/REACH/RoHS |
| Model Number: | TK-FOA-LCQ-888 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 |
|---|---|
| Price: | 1.42~1.50USD |
| Packaging Details: | Carton box 55*40*35cm |
| Delivery Time: | 3~5 days |
| Payment Terms: | T/T,Western Union,MoneyGram |
| Supply Ability: | 100000/week |
|
Detail Information |
|||
| Insertion Loss: | ≤0.2dB | Fiber Count: | Quad |
|---|---|---|---|
| Color: | Blue/Aqua/Rose/Green | Operating Temperature: | -40~85℃ |
| Highlight: | LC Quad fiber optic adapter,multimode fiber adapter without flange,APC UPC fiber optic connector |
||
Product Description
High Density Built-in Light Baffle Fiber Optic Adapter/Coupler
Product Attributes
| Attribute | Value |
|---|---|
| Insertion loss | ≤0.2dB |
| Fiber count | Quad |
| Color | Blue/Aqua/Rose/Green |
| Operating temperature | -40~85℃ |
Product Description
Fiber optic adapter is the component applicable for the connection between fiber optic connectors, which can help couple the output power from the transmitting fiber into the receiving fiber at the maximum. Moreover, it's also mainly used for the connection between the cables or the cables and the equipment as well. LC adapters from TAKFLY are featured with easy installation, low insertion loss, good interchangeability and high & low temperature resistance.
Features
- 9.4mm height, enabling high-strength, high-density assembly.
- Built-in light baffle provides dust-proof and laser radiation protection.
- Highly reliable structure design.
- Built with high performance material.
Specifications
| Colour | Meeting Standards | Sleeve | Flange | Port |
|---|---|---|---|---|
| Blue | RoHS | Ceramics | Without | 2/4/6/8/12 |
| Aqua | UL 94-V0 | Ceramics | Without | 2/4/6/8/12 |
| Rose | IEC-61754-20-2012 | Ceramics | Without | 2/4/6/8/12 |
| Green | IEC 61300 | Ceramics | Without | 2/4/6/8/12 |
