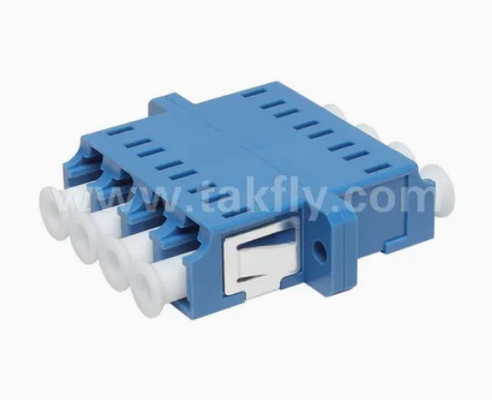

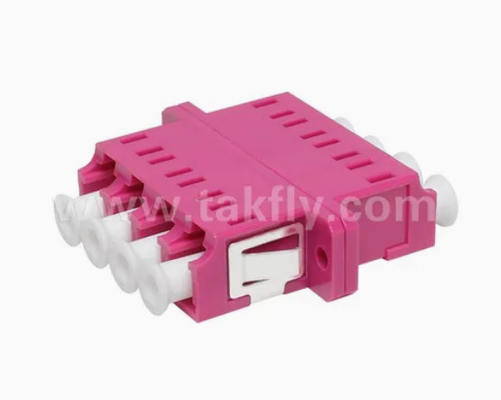

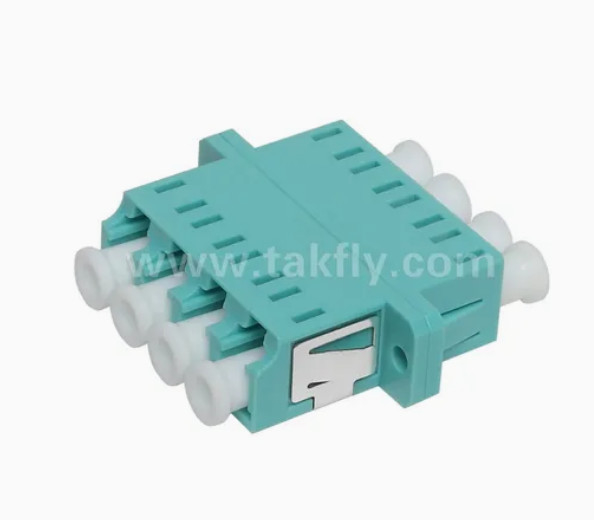

LC Quad APC Upc 4 Cores Fiber Optic Adapter with Flange Simplex and Duplex Body Style Insertion Loss ≤0.2dB
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | OEM/Takfly |
| Certification: | CE, ROHS, EMC |
| Model Number: | TK-AD-LC-4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Can be negotiated |
| Delivery Time: | 3-7 work days |
| Payment Terms: | Western Union, MoneyGram, L/C, T/T |
|
Detail Information |
|||
| Product Name: | LC 4 Cores Fiber Optical Adapter | Body Style: | Simplex、Duplex |
|---|---|---|---|
| Insertion Loss: | ≤0.2dB | Return Loss: | ≥45dB |
| Material: | Matel | Operating Temperature(℃): | -40~+85 |
| Storage Temperature: | -40~+85 | ||
| Highlight: | LC Quad Fiber Optic Adapter,Duplex Body Style Fiber Optic Adapter,4 Cores Fiber Optic Adapter |
||
Product Description
Fiber optic adaptors is also called mating sleeves, which are used to connect optical connectors of same type, such as LC, SC and FC,ST Optical adapters are widely uses in light distribution frame(ODF), the optical fiber communications equipment, the measuring appliance and so on.
The optical adaptor connects fiber transmission by its placket tube. We offer various shapes of high-performance adapters to ensure maximum connectivity between the fiber jumper. In order to fix a varity of board level, our company designed various sophisticated fixed flange.
Features:
Low insertion loss, high return loss
Good compatibility
High precision of mechanical dimensions
High reliability & stability
Ceramic or Bronze Sleeve
PC, APC, UPC optional
Simplex / Duplex
Application:
Local Area Network
CATV System
Telecommunication Networks
Equipment Test
Order Information
1. Type: SC, LC, ST, FC, MU, E2000, Hybrid
2. Endface type: PC UPC APC.
3. Singlemode or Multimode.
4. Simplex, Dumplex or Quad.
Packaging & Delivery
Packaging Detail: Each one package in a plastic box, and then package it with a specification in a carton about 60mm*60mm*80mm volume.
Delivery Detail: Delivered Within One Week after Order Confirmed
Duplex ST Adapter Specification
FAQ:
Q: Are you a manufanufacturer?
A: yes, we are a manufacturer, FTTH solution, and data center total solution provider in Shenzhen, China, established in 2000.
Q: Do you provide OEM service ?
A: Yes, we can print your logo or label on the products or on the box.
Q: Can you provide free samples ?
A: Some of low value samples can be free for you, but you need pay for the shipping cost.
Q: What is your delivery time ?
A: Generally, sample: 3~5 working days. Formal order: 7-10 working days.
Q: What's your payment terms ?
A: We accept T/T, Western Union, Paypal, L/C
For samples: 100% payment. Formal order: 30%~100% as deposit, balance payment before shipment.
