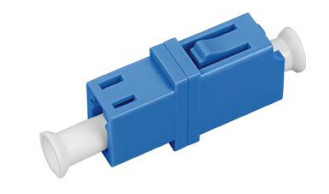

Single Mode and Multimode LC Fiber Optic Adapter for Network
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | OEM/Takfly |
| Certification: | CE, ROHS, EMC |
| Model Number: | TK-AD-LC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Can be negotiated |
| Delivery Time: | 3-7 work days |
| Payment Terms: | Western Union, MoneyGram, L/C, T/T |
|
Detail Information |
|||
| Product Name: | LC Fiber Optical Adapter | Mode: | SM、MM |
|---|---|---|---|
| Insertion Loss: | <= 0.2dB | Storage Temperature(℃): | -40~+85 |
| Operating Temperature(℃): | -40~+85 | Mating Durability(500 Times): | Additional Loss≤0.1dB |
| Temperature Stability(-40℃～ 85℃): | Additional Loss≤0.2dB | ||
| Highlight: | Network LC Fiber Optic Adapter,Multimode LC Fiber Optic Adapter,Single Mode LC Fiber Optic Adapter |
||
Product Description
Fiber Optic Adapter / Adaptor is a fiber optic connector on the activities of linking components. The complete series of products, including FC, SC, ST, LC, MTRJ, widely used in optical distribution frames (ODF), and optical fiber communications equipment, instrumentation, performance is stable and reliable.
Features:
1. Single mode and Multimode
2. Zirconia sleeves
3. NTT standard compatible
4. Meet JIS5974 and bellcore GR-326 standard
5. Compliant with IEC874-14 & IEC874-19
6. All parts compliant with ROHS
Application:
Telecommunication
CATV
LAN & WAN
Network
Broadband
FTTH
Duplex ST Adapter Specification
| Item | Parameter |
| Part No. | TK-AD-LC |
|
Mating Durability(500 times)
|
Additional Loss≤0.1dB
|
| Mode | SM,MM |
|
Temperature Stability(-40℃～85℃)
|
Additional Loss≤0.2dB
|
| Body Style | Duplex |
| Material | Metal |
| Insertion Loss | <= 0.2dB |
| Operating Temperature(℃) | -40~+85 |
| Storage Temperature(℃) | -40~+85 |
FAQ:
Q: Are you a manufanufacturer?
A: yes, we are a manufacturer, FTTH solution, and data center total solution provider in Shenzhen, China, established in 2000.
Q: Do you provide OEM service ?
A: Yes, we can print your logo or label on the products or on the box.
Q: Can you provide free samples ?
A: Some of low value samples can be free for you, but you need pay for the shipping cost.
Q: What is your delivery time ?
A: Generally, sample: 3~5 working days. Formal order: 7-10 working days.
Q: What's your payment terms ?
A: We accept T/T, Western Union, Paypal, L/C
For samples: 100% payment. Formal order: 30%~100% as deposit, balance payment before shipment.
