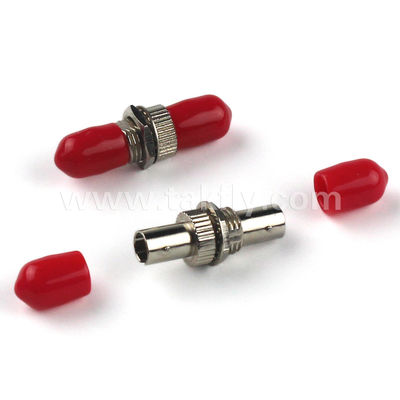

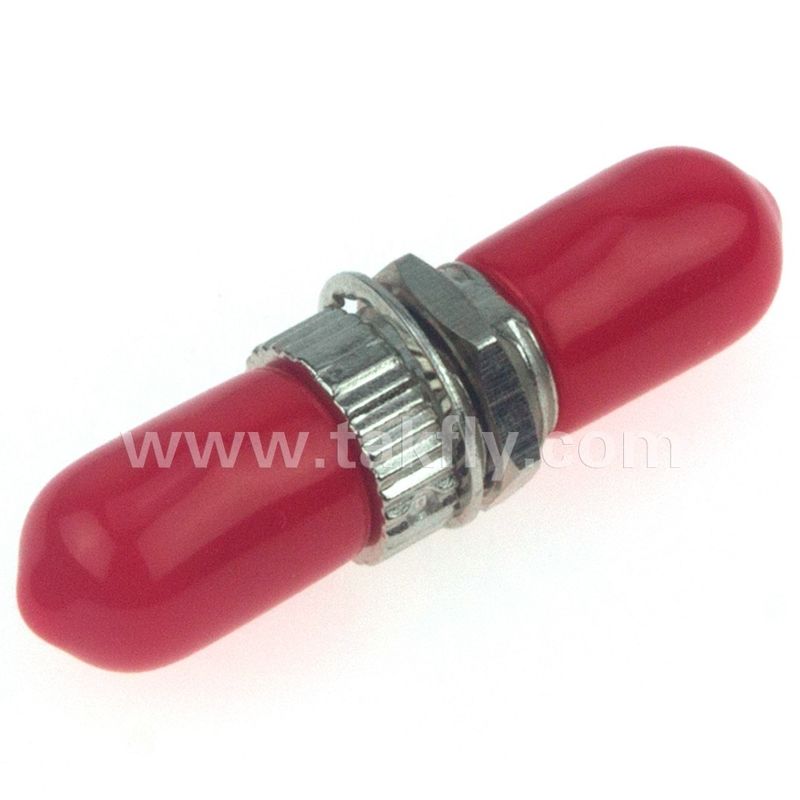

Single Mode Metal Adapter Simplex ST for Seamless Fiber Connections
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | OEM/Takfly |
| Certification: | CE, ROHS, EMC |
| Model Number: | TK-AD-ST |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Can be negotiated |
| Delivery Time: | 3-7 work days |
| Payment Terms: | Western Union, MoneyGram, L/C, T/T |
|
Detail Information |
|||
| Product Name: | ST Fiber Optical Adapter | Body Style: | Simplex |
|---|---|---|---|
| Insertion Loss: | ≤0.2dB | Return Loss: | ≥45dB |
| Material: | Matel | Operating Temperature(℃): | -40~+85 |
| Highlight: | Simplex ST Metal Adapter,Single Mode Metal Adapter,Seamless Fiber Connections Metal Adapter |
||
Product Description
Features:
1. Single mode and Multimode
2. Zirconia sleeves
3. NTT standard compatible
4. Available without flanges or with flange for duplex, saving panel space
5. Meet JIS5974 and bellcore GR-326 standard
6. Compliant with IEC874-14 & IEC874-19
7. All parts compliant with ROHS
Application:
Telecommunication
CATV
LAN & WAN
Network
Broadband FTTH
Duplex ST Adapter Specification
| Item | Parameter |
| Part No. | TK-AD-ST |
| Connector Type | ST |
| Polish Type | APC |
| Mounting Type | Full Flanged |
| Body Style | simplex |
| Material | Metal |
| Insertion Loss | ≤0.2dB |
| Operating Temperature(℃) | -40~+85 |
| Storage Temperature(℃) | -40~+85 |
FAQ:
Q: Are you a manufanufacturer?
A: yes, we are a manufacturer, FTTH solution, and data center total solution provider in Shenzhen, China, established in 2000.
Q: Do you provide OEM service ?
A: Yes, we can print your logo or label on the products or on the box.
Q: Can you provide free samples ?
A: Some of low value samples can be free for you, but you need pay for the shipping cost.
Q: What is your delivery time ?
A: Generally, sample: 3~5 working days. Formal order: 7-10 working days.
Q: What's your payment terms ?
A: We accept T/T, Western Union, Paypal, L/C
For samples: 100% payment. Formal order: 30%~100% as deposit, balance payment before shipment.
Want to Know more details about this product
