• FTTH NTT Fiber Optic Adaptor Female Connector Duplex Hybrid SC ST ODF
  • FTTH NTT Fiber Optic Adaptor Female Connector Duplex Hybrid SC ST ODF
FTTH NTT Fiber Optic Adaptor Female Connector Duplex Hybrid SC ST ODF

FTTH NTT Fiber Optic Adaptor Female Connector Duplex Hybrid SC ST ODF

Product Details:

Place of Origin: Shenzhen, China
Brand Name: Takfly/OEM
Certification: CE, ISO, RoHS, CPR, FCC
Model Number: SC-ST

Payment & Shipping Terms:

Minimum Order Quantity: 50pcs
Price: Can be negotiated
Packaging Details: International export packing
Delivery Time: 3-15 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 15000 pcs/ day
Get Best Price Contact Now

Detail Information

Product Name: SC To ST Duplex Fiber Optic Adaptor Metal Material Female Connector Connector Type: SC-ST
Fiber Count: Duplex Color: Color
Mode: MM/ SM Insertion Loss: SM≤0.2dB ; MM≤0.3dB
Mating Durability(500 Timer): Additional Loss≤0.1dB,Return Loss Variability<5dB Temperature Stability(-40℃~85℃): Additional Loss≤0.2dB,Return Loss Variability<5dB
Operating Temperature: -40℃~+85℃ Storage Temperature: -40℃~+85℃
High Light:

FTTH Fiber Optic Adaptor

,

NTT Fiber Optic Adaptor

,

ODF Fiber Optical Adapter

Product Description

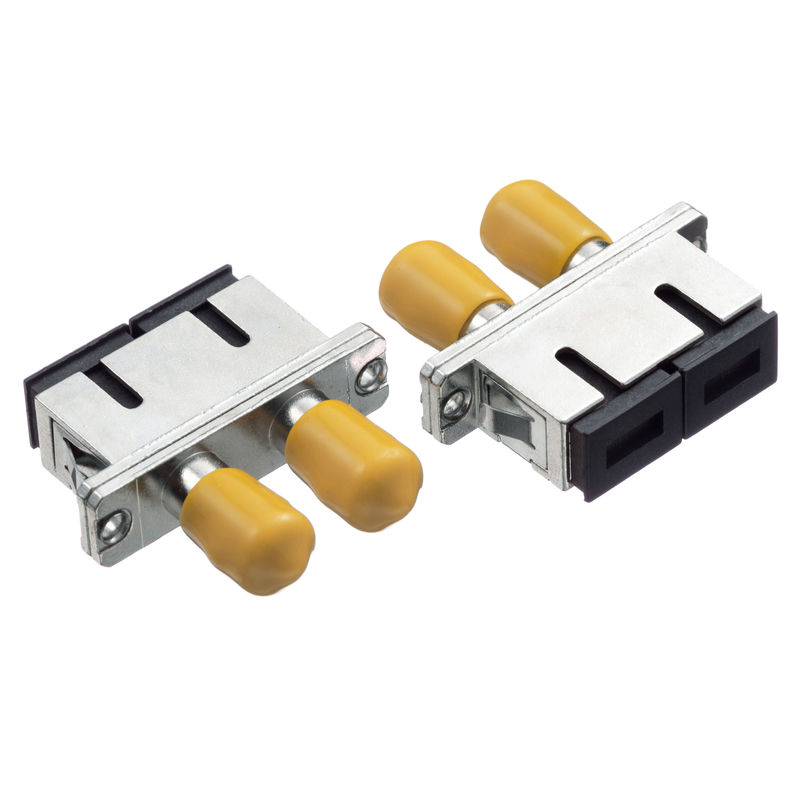

SC To ST Duplex Hybird Fiber Optic Adaptor Metal Material Female Connector





Fiber Optic Adapter Description:



The SC to ST duplex type adaptor is used to connecting the SC duplex patch cord and ST duplex patch cord. It is an SC shape on one side, and an ST shape on another side. So that it can connect the SC connector with the ST connector.



SC to ST duplex hybird adaptor means it can switch the SC patch cord to ST patch cord connection. For example, when your patch panel is ST port, but you have many SC patch cords in stock, then you only need to buy some SC to ST hybird adaptors, then the SC patch cord can be used to connect with the patch panel.



This series of products has a complete variety and is widely used in optical fiber distribution frames (ODF), optical communication equipment, meters, etc. The performance is stable and reliable, and the connection performance between the fiber jumpers is guaranteed.





Fiber Optic Adapter Features:



  • Single-mode and Multimode
  • Zirconia sleeves or Phosphor bronze sleeves
  • NTT standard compatible
  • Available without flanges or with flange for duplex, saving panel space
  • LC 8 Port high density for patch panel mount applications
  • Meet JIS5974 and Bellcore GR-326 standard
  • Compliant with IEC874-14 & IEC874-19
  • All parts compliant with ROHS


Fiber Optic Adapter Application:



  • Telecommunication
  • CATV
  • LAN & WAN
  • Network
  • Broadband
  • FTTH



Fiber Optic Adapter Parameter:



Parameter Unit



MPO, MTP, E2000, LC, SC, FC, ST, MU, MTRJ, SMA,DIN



SM

MM



PC



UPC



APC



PC



Insertion Loss (Typical)

dB ≤0.2 ≤0.2 ≤0.2 ≤0.2



Return Loss

dB ≥45 ≥50 ≥60 ≥30



Exchangeability

dB ≤0.2



Repeatability

dB ≤0.2



Durability

Time >1000



Operating Temperature

°C -40~75



Storage Temperature

°C -45~85



More Fiber Optic Adapter types:



FTTH NTT Fiber Optic Adaptor Female Connector Duplex Hybrid SC ST ODF 0



FQA :

1. Q: Are you a manufacturer?
A: yes, we are a manufacturer, FTTH solution, and data center total solution provider in Shenzhen, China, established in 2000.

2. Q: What's your MOQ?
A: MOQ can be 1 pcs, but the price is not competitive. With more quantity, the price will be more competitive.

3. Q: Can you quote the FOB price?
A: yes. We can deliver by air, DHL, TNT, UPC, FEDEX, etc. For big quantity, we will deliver it by sea.

We can quote the price with freight and lead time for you after you let us know detailed requirements with quantity.

We have competitive shipping forwarders. For more solutions, you can feel free to contact us.

4. Q: How is your quality?
A: Our production is according to IEC, Europe standard. CE, ISO, RoHS, CPR, and ANATEL certified.

All the products are 100% test before delivery.

5. Q: What's your lead time?
A: It depends on the quantity and products. For fiber optic patch cord, the lead time can be 2 -3 working days within 5000 pcs. We keep the regular products in stock. Also, we can deal with urgent orders.

6. Q: What's your warranty?
A: Depends on different products, we have1 years warranty for the patch cord since delivery, but only responsible for non-artificial damage. For artificial damage, we can repair it for you for free, freight will be paid by your side.

7. Q: What's your packing?
A: International export standard package. If you need to print your logo on the packing, please let us know before we quote.

8. Q: Can you offer OEM/ODM?
A: yes, we can. all products accept OEM /ODM. we can sign the Confidentiality Agreement.

9. Q: Can I have a sample?
A: It depends on which products, Free samples provide under 10 USD. Freight will be paid by the buyer before delivery.

10. Q: How can I order?
A:1.send mail or inquiries with product name, specification, and quantity to us. Provide your receive address if you need FOB, CIF, CFR price.

2.We will offer our quotation with lead time.

3.After the quotation confirmed, we will send a PI with our bank account.

4.Production will be arranged after the payment received.

5.Confirm the consignee with you before we deliver it.

6.The tracking number will be provided after the delivery.

  • Q: What your payment term?
    A: T/T, Western Union, Paypal, MoneyGram at once. For big amounts, can be 50% deposit in advance, 50% balance paid before delivery.



How to order fiber optic adapter:



  • Connector tyep have: MPO, MTP,E2000, LC, SC, FC, ST, MU, MTRJ, SMA, DIN,etc
  • Fiber count: simplex, duplex, quad, 6 ports, 8 ports.
  • Mode type have: single-mode, multimode
  • Types: female-female, male-female,bare fiber adapter,etc
  • Connector type: LC-LC, LC-SC, LC-FC, LC-ST,LC-E2000, SC-SC, SC-LC, SC-FC, SC-ST,etc.
  • LC, SC adapter has a flange and without flange type.
