APC E2K SM Female Fiber Adapter Zirconia Hybrid single mode NTT
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | Takfly/OEM |
| Certification: | CE, ISO, RoHS, CPR, FCC |
| Model Number: | E2K |
Payment & Shipping Terms:
| Minimum Order Quantity: | 200pcs |
|---|---|
| Price: | Can be negotiated |
| Packaging Details: | International export packing |
| Delivery Time: | 3-15 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram, Paypal |
| Supply Ability: | 15000 pcs/ day |
|
Detail Information |
|||
| Product Name: | E2K SM Green Female Fiber Optic Plastic Hybrid Adaptor Zirconia Type Fiber Accessories | Connector Type: | E2000 |
|---|---|---|---|
| Fiber Count: | 1 Fiber | Color: | Green APC |
| Type: | Female | Ferrule Material: | Zirconia |
| Material: | Plastic | Insertion Loss: | SM≤0.2dB ; MM≤0.3dB |
| Mating Durability(500 Timer): | Additional Loss≤0.1dB,Return Loss Variability<5dB | Temperature Stability(-40℃～85℃): | Additional Loss≤0.2dB,Return Loss Variability<5dB |
| Operating Temperature: | -40℃～+85℃ | Storage Temperature: | -40℃～+85℃ |
| High Light: | E2K SM Female Fiber Adapter,APC Female Fiber Adapter,NTT Single Mode Fiber Adapter |
||
Product Description
E2K SM Green female fiber optic plastic hybrid adaptor Zirconia type fiber accessories
Fiber Optic Adapter Description:

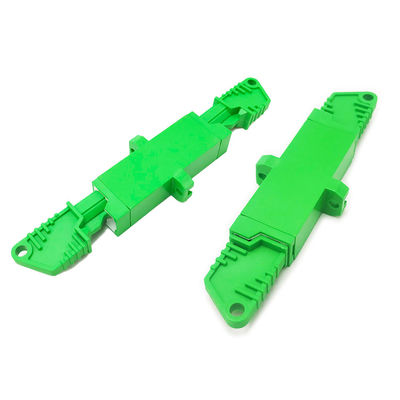

The green color E2K adaptor is an APC polishing type, it is for connecting two pcs of the simplex patch cord. From the picture, we can see the adaptor is a female to a female type. It does not have the E2K connector with a ferrule on two sides. The out shelf is plastic material, so that the weight is not heavy, inside of the adaptor is Zirconia ferrule, which can make the connection more exactly.
The E2000 adapter has a Precision connection with the sleeve. SM and MM connectors can be used interchangeably. The application of the E2K adaptor is to connect the patch cord from the outside of the patch panel to the inside of the patch panel. The distribution cable will be dropped from the com port, and splice with pigtails in the patch panel. All fibers will come out from the patch panel so that it must need adaptors on the patch panel to connect the patch cord in the outside of the patch panel.
This adapter with Low insertion loss, so that the insertion loss is very less during the data transmission, high return loss. High precision of mechanical dimensions. Working Temperature Range can be -40℃~+75℃The E2K adaptor has a very important function between the connection and data transmission. Because if we need many fibers cable to transmit the data, then we will use the trunk cable or mini cable. At the end of the fibers or data center, we need to separate the cable into many functions, so that we need the adaptor to connect both sides together.
Fiber Optic Adapter Features:
- Single-mode and Multimode
- Zirconia sleeves or Phosphor bronze sleeves
- NTT standard compatible
- Available without flanges or with flange for duplex, saving panel space
- LC 8 Port high density for patch panel mount applications
- Meet JIS5974 and Bellcore GR-326 standard
- Compliant with IEC874-14 & IEC874-19
- All parts compliant with ROHS
Fiber Optic Adapter Application:
- Telecommunication
- CATV
- LAN & WAN
- Network
- Broadband
- FTTH
Fiber Optic Adapter Parameter:
| Parameter | Unit |
MPO, MTP, E2000, LC, SC, FC, ST, MU, MTRJ, SMA,DIN |
|||
|
SM |
MM | ||||
|
PC |
UPC |
APC |
PC |
||
|
Insertion Loss (Typical) |
dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 |
|
Return Loss |
dB | ≥45 | ≥50 | ≥60 | ≥30 |
|
Exchangeability |
dB | ≤0.2 | |||
|
Repeatability |
dB | ≤0.2 | |||
|
Durability |
Time | >1000 | |||
|
Operating Temperature |
°C | -40~75 | |||
|
Storage Temperature |
°C | -45~85 | |||
Fiber Optic Adapter Application:
More Fiber Optic Adapter types:
FQA :
1. Q: Are you a manufacturer?
A: yes, we are a manufacturer, FTTH solution, and data center total solution provider in Shenzhen, China, established in 2000.
2. Q: What's your MOQ?
A: MOQ can be 1 pcs, but the price is not competitive. With more quantity, the price will be more competitive.
3. Q: Can you quote the FOB price?
A: yes. We can deliver by air, DHL, TNT, UPC, FEDEX, etc. For big quantity, we will deliver it by sea.
We can quote the price with freight and lead time for you after you let us know detailed requirements with quantity.
We have competitive shipping forwarders. For more solutions, you can feel free to contact us.
4. Q: How is your quality?
A: Our production is according to IEC, Europe standard. CE, ISO, RoHS, CPR, and ANATEL certified.
All the products are 100% test before delivery.
5. Q: What's your lead time?
A: It depends on the quantity and products. For fiber optic patch cord, the lead time can be 2 -3 working days within 5000 pcs. We keep the regular products in stock. Also, we can deal with urgent orders.
6. Q: What's your warranty?
A: Depends on different products, we have1 years warranty for the patch cord since delivery, but only responsible for non-artificial damage. For artificial damage, we can repair it for you for free, freight will be paid by your side.
7. Q: What's your packing?
A: International export standard package. If you need to print your logo on the packing, please let us know before we quote.
8. Q: Can you offer OEM/ODM?
A: yes, we can. all products accept OEM /ODM. we can sign the Confidentiality Agreement.
9. Q: Can I have a sample?
A: It depends on which products, Free samples provide under 10 USD. Freight will be paid by the buyer before delivery.
10. Q: How can I order?
A:1.send mail or inquiries with product name, specification, and quantity to us. Provide your receive address if you need FOB, CIF, CFR price.
2.We will offer our quotation with lead time.
3.After the quotation confirmed, we will send a PI with our bank account.
4.Production will be arranged after the payment received.
5.Confirm the consignee with you before we deliver it.
6.The tracking number will be provided after the delivery.
- Q: What your payment term?
A: T/T, Western Union, Paypal, MoneyGram at once. For big amounts, can be 50% deposit in advance, 50% balance paid before delivery.
How to order fiber optic adapter:
- Connector tyep have: MPO, MTP,E2000, LC, SC, FC, ST, MU, MTRJ, SMA, DIN,etc
- Fiber count: simplex, duplex, quad, 6 ports, 8 ports.
- Mode type have: single-mode, multimode
- Types: female-female, male-female,bare fiber adapter,etc
- Connector type: LC-LC, LC-SC, LC-FC, LC-ST,LC-E2000, SC-SC, SC-LC, SC-FC, SC-ST,etc.
- LC, SC adapter has a flange and without flange type.
