OM5 Duplex LC MM Fiber Optic Adapter Multimode Patch Cord Testing
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | Takfly/OEM |
| Certification: | CE, ISO, RoHS, CPR, FCC |
| Model Number: | LC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500pcs |
|---|---|
| Price: | Can be negotiated |
| Packaging Details: | International export packing |
| Delivery Time: | 3-15 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram, Paypal |
| Supply Ability: | 15000 pcs/ day |
|
Detail Information |
|||
| Product Name: | OM5 Duplex LC MM Fiber Optic Adapter For LC Multimode Patch Cord Testing | Connector Type: | LC |
|---|---|---|---|
| Fiber Count: | DX | Color: | Lime |
| Mode: | MM | Insertion Loss: | SM≤0.2dB ; MM≤0.3dB |
| Mating Durability(500 Timer): | Additional Loss≤0.1dB,Return Loss Variability<5dB | Temperature Stability(-40℃～85℃): | Additional Loss≤0.2dB,Return Loss Variability<5dB |
| Operating Temperature: | -40℃～+85℃ | Storage Temperature: | -40℃～+85℃ |
| High Light: | MM Fiber Optic Adapter,OM5 duplex lc adapter,OM5 Fiber Optic Adapter |
||
Product Description

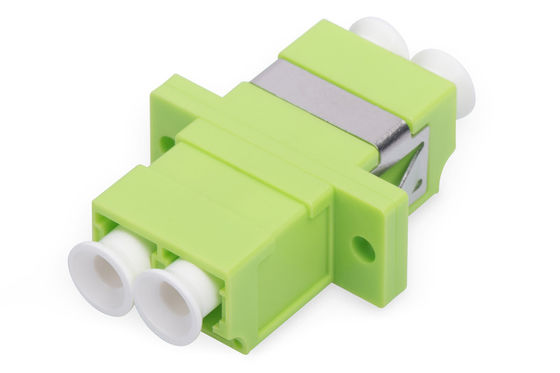

OM5 Duplex LC MM Fiber Optic Adapter For LC Multimode Patch Cord Testing
Fiber Optic Adapter Description:
OM5 Duplex LC MM Fiber Optic Adapter is the same color as the OM5 fiber optic cable, it is lime color. There are many kinds of materials used to produce adapters, and LC and SC adapters are produced using different materials. The adapter materials are PC, PC + GF, PC + ABS, and ABS.
OM5 multimode LC duplex adaptor is the high-density type adaptor compared with SC type adaptor. Different connector type adapters, different core numbers, and requirements for performance, accuracy, and stability are different, and the materials used are also different.
LC adaptors have single-mode and multimode types. The single-mode adaptor has UPC blue color, APC green color. Multimode types have beige color, OM3 aqua color, OM4 magenta color, and OM5 lime color. The size of the LC adapter is relatively small, the accuracy requirements are also high, and the stability requirements are also high, so there is a certain degree of difficulty in production.
Fiber Optic Adapter Features:
- Single-mode and Multimode
- Zirconia sleeves or Phosphor bronze sleeves
- NTT standard compatible
- Available without flanges or with flange for duplex, saving panel space
- LC 8 Port high density for patch panel mount applications
- Meet JIS5974 and Bellcore GR-326 standard
- Compliant with IEC874-14 & IEC874-19
- All parts compliant with ROHS
Fiber Optic Adapter Application:
- Telecommunication
- CATV
- LAN & WAN
- Network
- Broadband
- FTTH
Fiber Optic Adapter Parameter:
| Parameter | Unit |
MPO, MTP, E2000, LC, SC, FC, ST, MU, MTRJ, SMA,DIN |
|||
|
SM |
MM | ||||
|
PC |
UPC |
APC |
PC |
||
|
Insertion Loss (Typical) |
dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 |
|
Return Loss |
dB | ≥45 | ≥50 | ≥60 | ≥30 |
|
Exchangeability |
dB | ≤0.2 | |||
|
Repeatability |
dB | ≤0.2 | |||
|
Durability |
Time | >1000 | |||
|
Operating Temperature |
°C | -40~75 | |||
|
Storage Temperature |
°C | -45~85 | |||
Fiber Optic Adapter Drawing:
More Fiber Optic Adapter types:
How to order fiber optic adapter:
- Connector tyep have: MPO, MTP,E2000, LC, SC, FC, ST, MU, MTRJ, SMA, DIN,etc
- Fiber count: simplex, duplex, quad, 6 ports, 8 ports.
- Mode type have: single-mode, multimode
- Types: female-female, male-female,bare fiber adapter,etc
- Connector type: LC-LC, LC-SC, LC-FC, LC-ST,LC-E2000, SC-SC, SC-LC, SC-FC, SC-ST,etc.
- LC, SC adapter has a flange and without flange type.
