Product Details:

Place of Origin: Shenzhen, China
Brand Name: Takfly/OEM
Certification: CE, RoHS,REACH, ISO9001,ISO14001
Model Number: SC

Payment & Shipping Terms:

Minimum Order Quantity: 1000pcs
Price: US$0.01~US$0.12
Packaging Details: International export packing
Delivery Time: 3-15 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 20000 pcs/ day
Get Best Price Contact Now

Detail Information

Product Name: SM MM SC Duplex Fiber Optic Adapter Connector Type: SC
Fiber Count: Duplex Color: Green , Blue , Beige, Aqua , Violet
Mode Type: Singlemode, Multimode, SM , MM Insertion Loss: SM≤0.2dB,MM≤0.3dB
Mating Durability(500 Timer): Additional Loss≤0.1dB,Return Loss Variability<5dB Temperature Stability(-40℃~85℃): Additional Loss≤0.2dB,Return Loss Variability<5dB
Operating Temperature: -40℃~+85℃ Storage Temperature: -40℃~+85℃
Certificate: CE/ROHS/REACH/ISO9001/ISO14001 Application: FTTH FTTX Network
Material: Plastic
Highlight:

SM Fiber Optic Adapter

,

MM sc duplex adapter

,

MM Fiber Optic Adapter

Product Description

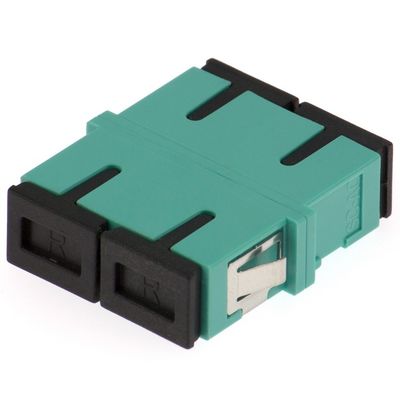

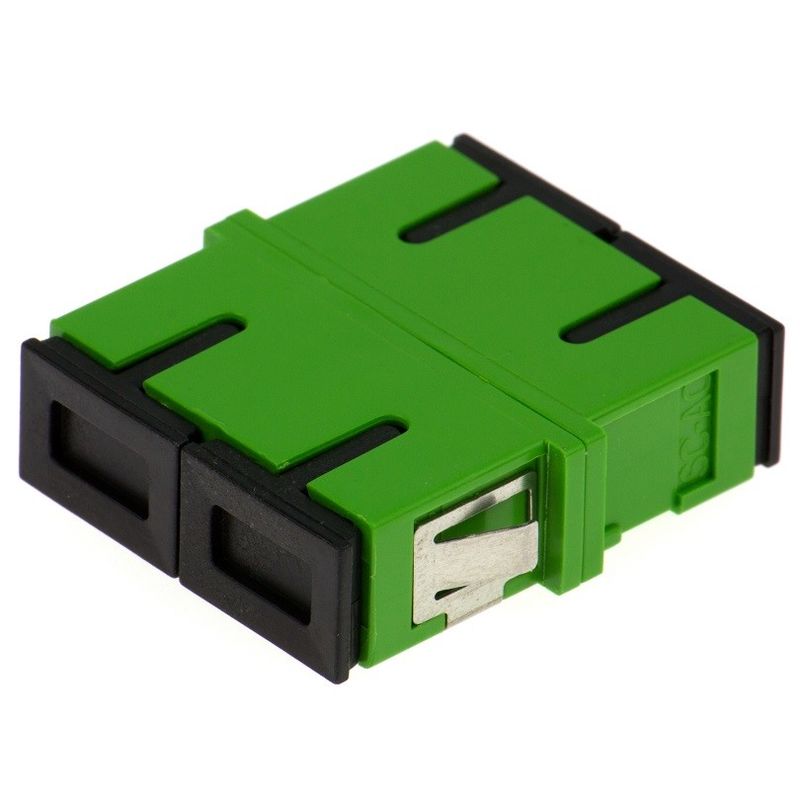

Flangeless or With Flange SM MM SC Duplex Fiber Optic Adapter Green Blue Beige Aqua Violet



Fiber Optic Adapter Description:



Takfly offers High-quality SC Duplex Fiber Optic Adapter with optional for with flange or flangeless, Singlemode or Multimode, UPC or APC, Blue, Green, Beige, Aqua, Violet or OEM color are available.



The SC Duplex Fiber Optic Adapter is made of molded polymer material. Each SC Duplex fiber optic adapter can support two optical ports. It consists of Zirconia ceramic alignment sleeve that can provide precise alignment with the SC fiber optic connector connected to minimize the amount of optical loss.



SC Duplex Fiber Optic Adapter is also called Fiber Optic Coupler or Fibre Optica Adaptor. It allows you to patch together SC connectors or SC fiber patch cables quickly. The SC coupler is particularly suitable to connect single fiber SC for a fast, precisely, quality field connection.



Fiber Optic Adapter Features:

  • Single-mode and Multimode
  • Zirconia sleeves or Phosphor bronze sleeves
  • NTT standard compatible
  • Available without flanges or with flange for duplex, saving panel space
  • LC 8 Port high density for patch panel mount applications
  • Meet JIS5974 and Bellcore GR-326 standard
  • Compliant with IEC874-14 & IEC874-19
  • All parts compliant with ROHS, CE and REACH.

Fiber Optic Adapter Application:

  • Telecommunication
  • CATV
  • LAN & WAN
  • Network
  • Broadband
  • FTTH

Fiber Optic Adapter Parameter:

Product SC Adapter
Mode S.M(Zroz) M.M(P.B)
Insertion Loss ≤0.2dB ≤0.3dB
Mating Durability(500 timer) Additional Loss≤0.1dB,Return Loss Variability<5dB
Temperature Stability(-40℃~85℃) Additional Loss≤0.2dB,Return Loss Variability<5dB
Operating Temperature -40℃~+85℃
Storage Temperature -40℃~+85℃



More Fiber Optic SC Adapter:

Flangeless SM MM SC Duplex Fiber Optic Adapter Green Blue Beige Aqua Violet 0Flangeless SM MM SC Duplex Fiber Optic Adapter Green Blue Beige Aqua Violet 1



Why choose TAKFLY--Advantages as follows:
Professional manufacturer:

  • With more than 21 years manufacturing experience in Fiber optic products;
  • More than 450 assembly workers with 3 years experienced;
  • More than 10 R&D Engineers;
  • 16 Sets Germany imported Injection Machine and 16 Production Lines;
  • More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test instrument; tension strenth tester, Crush Resistance tester, Power meter tester, light checker, ect.
  • OEM Brand is acceptable.
  • Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia ,Global Soure Electronic Exhibition,etc.

Quality Control:

  • Spot check the raw material incoming inspection before production;
  • Fully check after every individual process finished;
  • Fully check production half done;
  • Fully check the finished products before packing;
  • Spot check before shipping;

Delivery:

  • Samples: 1-3 working days.
  • Mass Production Order: 3-7 working days.
  • Packaging: Plastic Bag, Carton and Pallet are available according to your request.
