• 0.2dB SC to SC APC Single Mode Fiber Optic Adapter Flangeless For FTTH FTTX
  • 0.2dB SC to SC APC Single Mode Fiber Optic Adapter Flangeless For FTTH FTTX
  • 0.2dB SC to SC APC Single Mode Fiber Optic Adapter Flangeless For FTTH FTTX
0.2dB SC to SC APC Single Mode Fiber Optic Adapter Flangeless For FTTH FTTX

0.2dB SC to SC APC Single Mode Fiber Optic Adapter Flangeless For FTTH FTTX

Product Details:

Place of Origin: Shenzhen, China
Brand Name: Takfly/OEM
Certification: CE, ISO, RoHS, CPR, FCC
Model Number: LC

Payment & Shipping Terms:

Minimum Order Quantity: 500pcs
Price: US$0.01~US$0.12
Packaging Details: International export packing
Delivery Time: 3-15 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 30000 pcs/ day
Get Best Price Contact Now

Detail Information

Product Name: SC APC Simplex Fiber Optic Adapter Connector Type: SC
Fiber Count: Simplex Color: Green/Blue/Beige/Aqua/Violet/OEM
Mode Type: Singlemode, Multimode Insertion Loss: ≤0.2dB
Mating Durability(500 Timer): Additional Loss≤0.1dB,Return Loss Variability<5dB Temperature Stability(-40℃~85℃): Additional Loss≤0.2dB,Return Loss Variability<5dB
Operating Temperature: -40℃~+85℃ Storage Temperature: -40℃~+85℃
Certificate: CE/ROHS/REACH/ISO9001/ISO14001
High Light:

0.2dB Single Mode Adapter

,

Takfly Single Mode Adapter

,

0.2dB SC APC Adapter

Product Description

0.2dB SC to SC APC Single Mode Fiber Optic Adapter Flangeless For FTTH FTTX





Fiber Optic Adapter Description:



Takfly's SM SC / APC Simplex Fiber Optic Adapter  is designed to connect one fiber optic cable or fiber optic connector together.



SM SC / APC Simplex Fiber Optic Adapter provides a great solution to meet the growing demand for small form factor, high-density fiber optic connectivity.



Fiber optic adapters, or fiber optic couplers are used to terminate or link the fibre optic cables or fibre optic connectors between two fibre optic lines. By linking two connectors precisely, fibre optic adapters allow the light sources to be transmitted at most and lower the loss as much as possible. Each fibre optic adapter is individually and rigorously tested and certified under Takfly fibre optic inspection processes to make sure low insertion loss, good interchangeability and re-producibility.



Fiber Optic Adapter Features:

  • Single-mode and Multimode
  • Zirconia sleeves or Phosphor bronze sleeves
  • NTT standard compatible
  • Available without flanges or with flange for duplex, saving panel space
  • LC 8 Port high density for patch panel mount applications
  • Meet JIS5974 and Bellcore GR-326 standard
  • Compliant with IEC874-14 & IEC874-19
  • All parts compliant with ROHS, CE and REACH.

Fiber Optic Adapter Application:

  • Telecommunication
  • CATV
  • LAN & WAN
  • Network
  • Broadband
  • FTTH

Fiber Optic Adapter Parameter:



Product SC Adapter
Mode S.M(Zroz) M.M(P.B)
Insertion Loss ≤0.2dB ≤0.3dB
Mating Durability(500 timer) Additional Loss≤0.1dB,Return Loss Variability<5dB
Temperature Stability(-40℃~85℃) Additional Loss≤0.2dB,Return Loss Variability<5dB
Operating Temperature -40℃~+85℃
Storage Temperature -40℃~+85℃



More Fiber Optic SC Adapter:

0.2dB SC to SC APC Single Mode Fiber Optic Adapter Flangeless For FTTH FTTX 0

Why choose TAKFLY--Advantages as follows:
Professional manufacturer:

  • With more than 21 years manufacturing experience in Fiber optic products;
  • More than 450 assembly workers with 3 years experienced;
  • More than 10 R&D Engineers;
  • 16 Sets Germany imported Injection Machine and 16 Production Lines;
  • More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test instrument; tension strenth tester, Crush Resistance tester, Power meter tester, light checker, ect.
  • OEM Brand is acceptable.
  • Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia ,Global Soure Electronic Exhibition,etc.

Quality Control:

  • Spot check the raw material incoming inspection before production;
  • Fully check after every individual process finished;
  • Fully check production half done;
  • Fully check the finished products before packing;
  • Spot check before shipping;

Delivery:

  • Samples: 1-3 working days.
  • Mass Production Order: 3-7 working days.

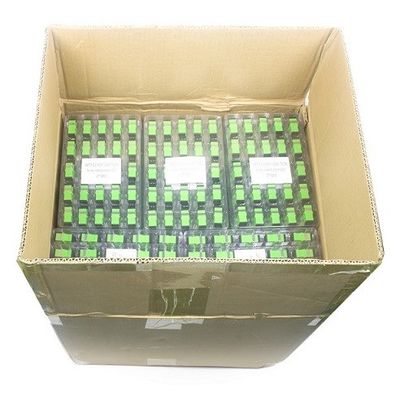

  • Packaging: Plastic Bag, Carton and Pallet are available according to your request.

Price: If your QTY is big, the price could be negotiated.



I have been working in this field more than 6 years, I believe, I could give you very good service and professional answers!



If you’re interested in our products or have any doubt, why not send me inquiry at once?
