LC APC Quad Fiber Optic Adapter SM Flangeless Green Color For Telecom Network
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | Takfly/OEM |
| Certification: | CE, ISO, RoHS, CPR, FCC |
| Model Number: | LC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500pcs |
|---|---|
| Price: | Can be negotiated |
| Packaging Details: | International export packing |
| Delivery Time: | 3-15 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram, Paypal |
| Supply Ability: | 15000 pcs/ day |
|
Detail Information |
|||
| Product Name: | LC APC Quad Fiber Optic Adapter | Connector Type: | LC |
|---|---|---|---|
| Fiber Count: | 4 Fibers | Color: | Green |
| Mode: | SM | Insertion Loss: | SM≤0.2dB ; MM≤0.3dB |
| Mating Durability(500 Timer): | Additional Loss≤0.1dB,Return Loss Variability<5dB | Temperature Stability(-40℃～85℃): | Additional Loss≤0.2dB,Return Loss Variability<5dB |
| Operating Temperature: | -40℃～+85℃ | Storage Temperature: | -40℃～+85℃ |
Product Description

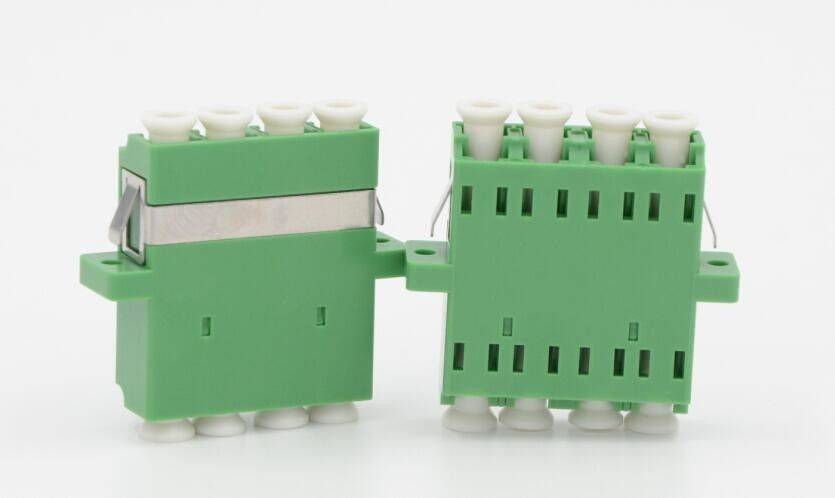

LC APC Quad Fiber Optic Adapter SM Flangeless Green Color For Telecom Network
Fiber Optic Adapter Description:
Takfly's LC APC Quad Fiber Optic Adapters have been designed to present a range of optic fibre connectors. The flangeless adaptors are constructed to allow fitting in the bulkheads without the need for screws or nuts. The housings are manufactured from a range of plastics and metals selected to provide the optimum performance.
Takfly's LC APC Quad Fiber Optic Adapters have been certified with CE, ROHS, REACH, ISO9001 and ISO14001.
It could be used in Patch Panel, Termination Box, FTTH Wall Outlet, Splice enclosure, ect.
Takfly has 32 Germany import injection machines for Fiber Optic Adapters, production capacity: 500K PCS/month.
Fiber Optic Adapter Features:
- Single-mode and Multimode
- Zirconia sleeves or Phosphor bronze sleeves
- NTT standard compatible
- Available without flanges or with flange for duplex, saving panel space
- LC 8 Port high density for patch panel mount applications
- Meet JIS5974 and Bellcore GR-326 standard
- Compliant with IEC874-14 & IEC874-19
- All parts compliant with ROHS, CE and REACH.
Fiber Optic Adapter Application:
- Telecommunication
- CATV
- LAN & WAN
- Network
- Broadband
- FTTH
Fiber Optic Adapter Parameter:
| Product | LC Adapter | |
| Mode | S.M(Zroz) | M.M(P.B) |
| Insertion Loss | ≤0.2dB | ≤0.3dB |
| Mating Durability(500 timer) | Additional Loss≤0.1dB,Return Loss Variability<5dB | |
| Temperature Stability(-40℃～85℃) | Additional Loss≤0.2dB,Return Loss Variability<5dB | |
| Operating Temperature | -40℃～+85℃ | |
| Storage Temperature | -40℃～+85℃ | |
Fiber Optic Adapter Drawing:
More Fiber Optic Adapter types:
Why choose TAKFLY--Advantages as follows:
Professional manufacturer:
- With more than 21 years manufacturing experience in Fiber optic products;
- More than 450 assembly workers with 3 years experienced;
- More than 10 R&D Engineers;
- 16 Sets Germany imported Injection Machine and 16 Production Lines;
- More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test instrument; tension strenth tester, Crush Resistance tester, Power meter tester, light checker, ect.
- OEM Brand is acceptable.
- Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia ,Global Soure Electronic Exhibition,etc.
Quality Control:
- Spot check the raw material incoming inspection before production;
- Fully check after every individual process finished;
- Fully check production half done;
- Fully check the finished products before packing;
- Spot check before shipping;
Delivery:
- Samples: 1-3 working days.
- Mass Production Order: 3-7 working days.
- Packaging: Plastic Bag, Carton and Pallet are available according to your request.
I have been working in this field more than 6 years, I believe, I could give you very good service and professional answers!
If you’re interested in our products or have any doubt, why not send me inquiry at once?
