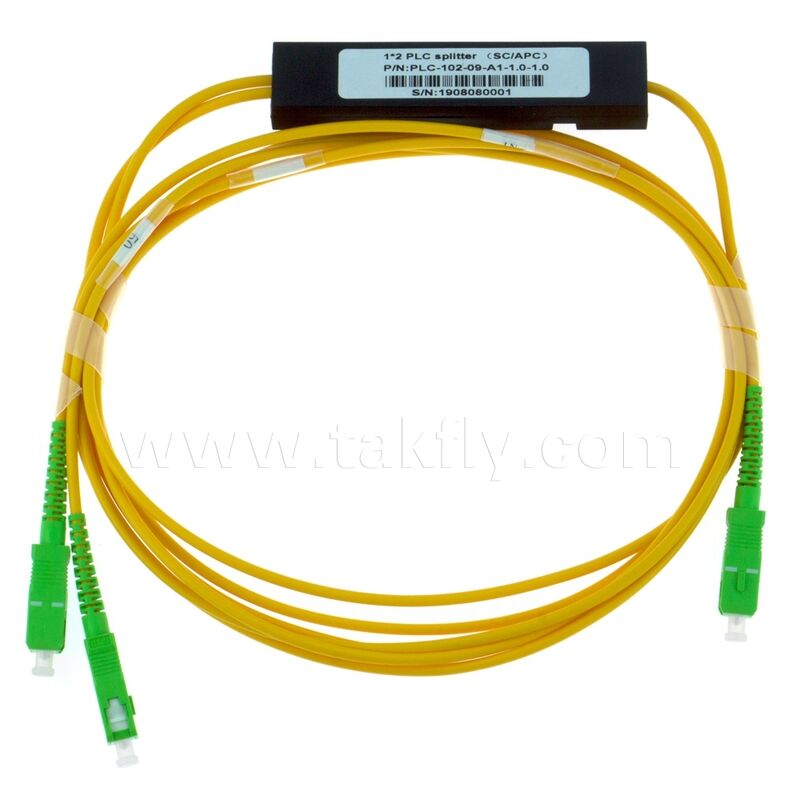

1x2 SC-APC ABS BoxPLC splitter with colored outlets
Product Details:
| Place of Origin: | China, Shenzhen |
| Brand Name: | OEM/Takfly |
| Certification: | CE, ROHS, REACH, ISO9001, ISO14001 |
| Model Number: | DF-PLC -1X2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Can be negotiated |
| Packaging Details: | blister packaging + carton |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T, Western Union, Paypal, |
| Supply Ability: | 50000pcs per month |
|
Detail Information |
|||
| Type: | Single-mode Fiber | Connector: | SC/APC |
|---|---|---|---|
| Allowed Lateral Pressure: | >1000(N/100mm) | Allowed Tensile Strength: | 1000N<10000N |
| Sheath Material: | PVC | Fiber Length: | Customized |
| Highlight: | 1x2 SC-APC ABS Box PLC splitter,1x2 PLC splitter colored outlets,SC-APC fiber optic PLC splitter |
||
Product Description
The 1x2 SC-APC ABS Box PLC Splitter with colored outlets is a compact optical power splitter built on an integrated quartz baseplate. Single-mode PLC 1×N and 2×N splitters uniformly divide optical signals from one or two inputs to multiple outputs, and the same device can operate in reverse to combine multiple signals into one or two fibers. The ABS box housing with color-coded output ports simplifies installation and fiber identification in dense network environments.
- Fiber To The Home (FTTH)
- Passive Optical Networks (PON / GPON / EPON)
- CATV Network (Cable Television Network) Communication Systems
- Fiber Optic Test Equipment
- Fiber Optic Sensing
- Local Area Networks (LAN)
- All-fiber construction for stable optical performance
- High reliability and long-term environmental stability
- Outstanding optical performance with low insertion loss and PDL
- Multiple fiber types available to suit different network requirements
| Parameter | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 | 2×2 | 2×4 | 2×8 | 2×16 | 2×32 | 2×64 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Operating Wavelength | 1260 to 1650 nm | |||||||||||
| P Level Insertion Loss (dB) | 3.8 | 7.2 | 10.3 | 13.5 | 16.8 | 20.1 | 4.2 | 7.4 | 10.6 | 13.9 | 17.2 | 20.5 |
| S Level Insertion Loss (dB) | 4.0 | 7.4 | 10.5 | 13.8 | 17.1 | 20.5 | 4.4 | 7.7 | 11.0 | 14.8 | 17.9 | 21.5 |
| Uniformity (dB) | 0.4 | 0.6 | 0.8 | 1.0 | 1.2 | 1.6 | 0.8 | 1.0 | 1.2 | 1.5 | 1.8 | 2.0 |
| PDL (dB) | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 |
| Return Loss (dB) | > 55 | |||||||||||
| Directivity (dB) | > 55 | |||||||||||
| Type of Fiber | ITU G657A | |||||||||||
| Operating Temperature | -40 to 85 °C | |||||||||||
| Pigtail Length | 1.5 +0.1/-0 m or customized | |||||||||||
| Parameter | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 | 2×2 | 2×4 | 2×8 | 2×16 | 2×32 | 2×64 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Operating Wavelength | 1260 to 1650 nm | |||||||||||
| P Level Insertion Loss (dB) | 4.0 | 7.4 | 10.5 | 13.7 | 17.0 | 20.3 | 4.4 | 7.6 | 10.8 | 14.1 | 17.4 | 20.7 |
| S Level Insertion Loss (dB) | 4.2 | 7.6 | 10.7 | 14.0 | 17.3 | 20.7 | 4.6 | 7.9 | 11.2 | 15.0 | 18.1 | 21.7 |
| Uniformity (dB) | 0.4 | 0.6 | 0.8 | 1.0 | 1.2 | 1.6 | 0.8 | 1.0 | 1.2 | 1.5 | 1.8 | 2.0 |
| PDL (dB) | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 |
| Return Loss (dB) | > 55 | |||||||||||
| Directivity (dB) | > 55 | |||||||||||
| Type of Fiber | ITU G657A | |||||||||||
| Operating Temperature | -40 to 85 °C | |||||||||||
| Pigtail Length | 1.5 +0.1/-0 m or customized | |||||||||||
- Low Insertion Loss: Low insertion loss, PDL, and excess loss deliver high optical performance.
- High Isolation: High isolation combined with good environmental stability.
- Customizable Length: Standard 1.5 m pigtail length, customizable to specific requirements.
- Wide Application: Suitable for FTTH, PON, CATV, LAN, and communication systems.
- Multiple Splitter Types: Available in 1×2, 1×4, 1×8, 1×16, 1×32, and other configurations.
- Quality Certified: CE, ISO, RoHS, CPR, and ANATEL certified products.
- OEM/ODM Service: OEM and ODM orders accepted with confidentiality agreements.
- Wide Operating Temperature: Reliable operation from -40 to 85 °C.
Equipped with a high-quality ferrule and professional polishing technology, the optical endface is precisely matched to achieve more stable transmission and efficient connection.
The PLC optical splitter is insensitive to wavelength and supports full-band signal transmission from 1260 to 1650 nm, ensuring consistent performance across the entire operating band.
