LGX Box PLC Splitter – Standardized Footprint for 1×2 to 2×64, Compatible with SC/LC Connectors
Product Details:
| Place of Origin: | Guangdong, SHENZHEN |
| Brand Name: | TAKFLY |
| Certification: | CE,ROHS,REACH,ISO9001,ISO14001 |
| Model Number: | QSFP28-4SFP28-xxx |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Pices |
|---|---|
| Price: | US$17.66 ~ US$70.63/PC |
| Packaging Details: | spone + box + carton |
| Delivery Time: | 3-7 working days |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
|
Detail Information |
|||
| Highlight: | LGX Box PLC Splitter SC/LC compatible,Fiber optic PLC splitter 1×2 to 2×64,Standardized footprint PLC splitter LGX Box |
||
|---|---|---|---|
Product Description

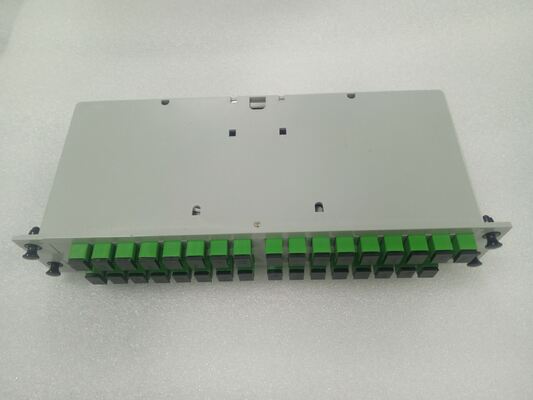

LGX Box PLC Splitter – Standardized Footprint for 1×2 to 2×64
Compatible with SC/LC connectors for fiber distribution frames, optical cross-connection cabinets, and ODF sub-racks.
Product Overview
The LGX box provides a standardized metal/plastic housing for PLC optical splitters, covering split ratios from 1×2 to 2×64. Available with SC or LC connectors (simplex/duplex) to meet your specific requirements.

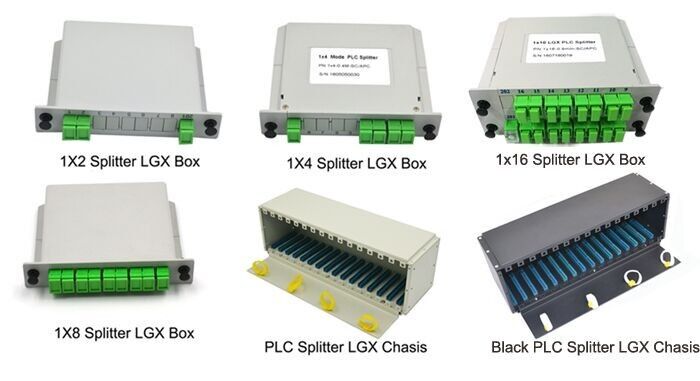

Package Dimensions vs. Split Ratio
Standard LGX box dimensions (L × W × H, in mm):
| Split Ratio | Connector Type | Length × Width × Height (mm) |
|---|---|---|
| 1×2 | SC / LC | 130 × 100 × 25 |
| 1×4 | SC / LC | 130 × 100 × 25 |
| 1×8 | SC / LC | 130 × 100 × 25 |
| 1×16 | SC / LC | 130 × 100 × 50 |
| 1×32 | LC | 130 × 100 × 50 |
| 1×32 | SC | 130 × 100 × 102 or 267 × 100 × 50 |
| 1×64 | LC | 130 × 180 × 102 |
| 1×64 | SC | 130 × 100 × 205 |
| 2×2 | SC / LC | 130 × 100 × 25 |
| 2×4 | SC / LC | 130 × 100 × 25 |
| 2×8 | SC / LC | 130 × 100 × 25 |
| 2×16 | SC / LC | 130 × 100 × 50 |
| 2×32 | LC | 130 × 100 × 50 |
| 2×32 | SC | 130 × 100 × 102 |
| 2×64 | LC | 130 × 100 × 50 |
Notes:
• Dimensions are typical for bare housing; slight variations may exist due to internal fiber routing
• For 1×32 SC version, two external dimensions available to fit different rack or tray depths
• All LGX boxes feature standard mounting holes compatible with mainstream ODF trays
• Dimensions are typical for bare housing; slight variations may exist due to internal fiber routing
• For 1×32 SC version, two external dimensions available to fit different rack or tray depths
• All LGX boxes feature standard mounting holes compatible with mainstream ODF trays
Measured Optical Performance
Factory measurement data for 1×4, 1×8, and 1×16 single mode PLC splitters:

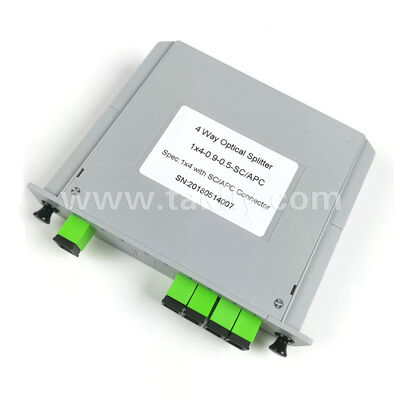

1×4 Single Mode PLC Splitter
| Operating Wavelength | 1260-1650 nm |
| P/N | 1x4-PLC-0-9-0.5-SA |
| Fiber Type | G.657A with Φ0.9mm loose tube |
| Connector Type | SC/APC |
| Operating Temperature | -40℃ to +85℃ |
| Insertion Loss | MAX 7.2 dB |
| PDL | MAX 0.2 dB |
| Return Loss | ≥55 dB |
1×8 Single Mode PLC Splitter
| Operating Wavelength | 1260-1650 nm |
| P/N | 1x8-PLC-0.9-0.5-SA |
| Fiber Type | G.657A with Φ0.9mm loose tube |
| Connector Type | SC/APC |
| Operating Temperature | -40℃ to +85℃ |
| Insertion Loss | MAX 10.5 dB |
| PDL | MAX 0.2 dB |
| Return Loss | >55 dB |

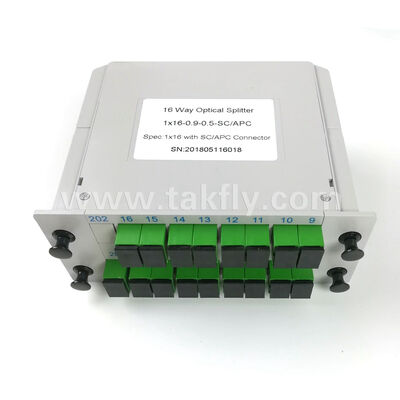

1×16 Single Mode PLC Splitter
| Operating Wavelength | 1260-1650 nm |
| P/N | 1-16-PLC-0.9-0.5-SA |
| Fiber Type | G.657A with Φ0.9mm loose tube |
| Connector Type | SC/APC |
| Operating Temperature | -40℃ to +85℃ |
| Insertion Loss | MAX 13.0 dB |
| PDL | MAX 0.25 dB |
| Return Loss | ≥55 dB |
Materials & Environmental Specifications
- Housing material: Cold-rolled steel (black coating) or flame-retardant ABS (optional)
- Fiber type: G.657A1 / G.652D (bend-insensitive available)
- Connectors: SC/APC, SC/UPC, LC/APC, LC/UPC (specify when ordering)
- Pigtail length: Standard 0.5 m / 1.0 m / 1.5 m, customizable
- Operating temperature: -40℃ to +85℃
- Storage temperature: -40℃ to +85℃
- Humidity: ≤95% (non-condensing)
Typical Applications
- ODF sub-rack integration - Direct slide-in compatibility with 19-inch LGX patch panels
- Optical cross-connect cabinets - High-port-count splitting in outdoor FTTx nodes
- Data centers - High-density fiber distribution
- CATV headends - Broadcast signal splitting
Customization Options
- Connector type and polish (APC/UPC)
- Pigtail length and fiber color
- Fiber type (G.657A2, OM3 multimode)
- Housing color and silkscreen labeling
Frequently Asked Questions
Product FAQs
Q1: What is the purpose of a 1×128 PLC splitter?
A1: Divides one input optical signal into 128 equal-power output signals. Commonly used in large-scale FTTH/PON networks and CATV optical distribution systems.
Q2: What is the typical insertion loss for a 1×128 splitter?
A2: Theoretical loss is approximately 21.0 dB. Total insertion loss is ≤23.0 dB (typical), with maximum ≤26.0 dB according to industry standards.
Q3: Can this splitter be used in reverse?
A3: Yes, PLC splitters are passive reciprocal devices. They can combine 128 input signals into one output fiber, but note that combined loss will be high (≥21 dB).
Q4: What connector types are available for the output panel?
A4: Standard options include SC/APC (most common for FTTH), SC/UPC, LC/UPC, or FC/APC. Contact us to confirm specific connector interfaces.
Q5: What rack height (U) does this panel require?
A5: Rack height depends on design and port density. 1×128 splitters typically come in 2U, 3U, or 4U heights. Contact us for exact dimensions.
Q6: How temperature stable is the splitter in outdoor cabinets?
A6: The device operates from -40℃ to +85℃, making it suitable for outdoor cabinets, headend rooms, or non-temperature-controlled central offices.
Q7: How many splitter modules are inside? Is it cascaded 1×16 or 1×32 modules?
A7: 1×128 splitters can be implemented with a single high-uniformity PLC chip or by cascading smaller modules. Contact our sales team for specific internal configuration details.
Q8: What is the warranty period?
A8: Standard warranty is 1 year, covering non-human defects with free repair for manufacturing defects.
Q9: Can I get a sample before bulk ordering?
A9: Yes, we provide samples. Please specify your connector and fiber length requirements.
Q10: How to clean output connectors on high-density panels?
A10: Use one-click cleaners or cassette cleaners with appropriate adapters (SC or LC). The front panel design allows individual cleaning without disturbing adjacent fibers.
