PLC Optical Splitter – From 1×2 to 2×64, G.657A1/G.652D Compatible
Product Details:
| Place of Origin: | Guangdong, SHENZHEN |
| Brand Name: | TAKFLY |
| Certification: | CE,ROHS,REACH,ISO9001,ISO14001 |
| Model Number: | QSFP28-4SFP28-xxx |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Pices |
|---|---|
| Price: | US$1.45 ~ US$43.18/PC |
| Packaging Details: | spone + box + carton |
| Delivery Time: | 3-7 working days |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
|
Detail Information |
|||
| Highlight: | PLC optical splitter 1x2 to 2x64,Fiber optic PLC splitter G.657A1 compatible,PLC splitter G.652D compatible |
||
|---|---|---|---|
Product Description

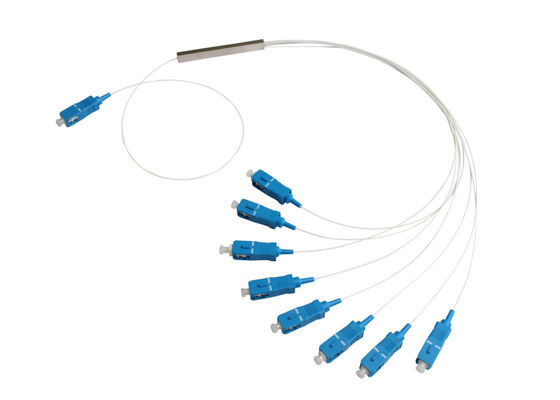

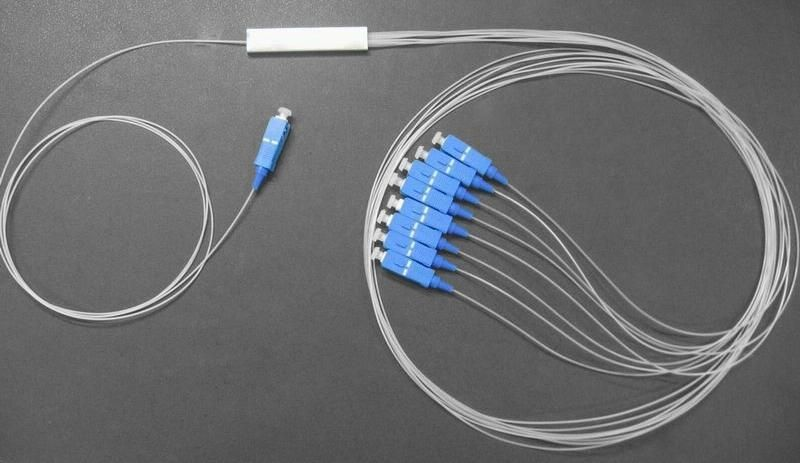

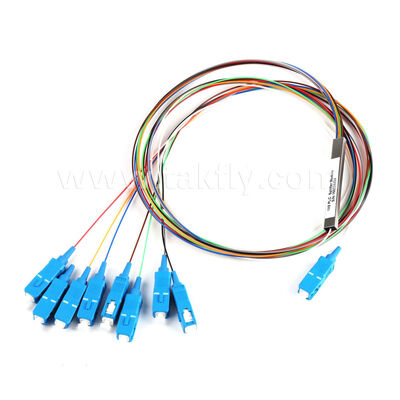

PLC Optical Splitter – From 1×2 to 2×64, G.657A1/G.652D Compatible
Product Overview
PLC (Planar Lightwave Circuit) splitters are optical power distribution devices built on integrated quartz substrates. Available in single-mode 1×N and 2×N configurations, these devices evenly split optical signals from input ports across multiple output ports. They can also function in reverse to combine multiple input signals into one or two output fibers.
Key Features
- Wide operating wavelength range
- Low insertion loss
- Low polarization dependent loss (PDL)
- Compact form factor
- Excellent uniformity among output ports
- High stability and long-term reliability
Applications
- Telecommunication systems
- Passive optical networks (PON)
- FTTH deployments
- CATV networks
- Video signal transmission
Technical Specifications
| Parameter | Value |
|---|---|
| Operating Wavelength | 1260 ~ 1650 nm |
| Fiber Type | ITU-T G657A1, G657A2 and G.652D |
| Max. Temperature Stability | 0.5 dB (Typical 0.3) |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -40°C to +85°C |
Performance Specifications
| Type | Max. Insertion Loss (dB) | Max. Uniformity (dB) | Max. PDL (dB) |
|---|---|---|---|
| 1×2 | 3.9 | 0.8 | 0.2 |
| 1×4 | 7.2 | 0.8 | 0.3 |
| 1×8 | 10.3 | 0.8 | 0.3 |
| 1×16 | 13.5 | 1.0 | 0.3 |
| 1×32 | 16.8 | 1.5 | 0.3 |
| 1×64 | 20.3 | 2.0 | 0.5 |
| 2×2 | 4.2 | 0.8 | 0.2 |
| 2×4 | 7.5 | 1.0 | 0.3 |
| 2×8 | 10.6 | 1.2 | 0.3 |
| 2×16 | 13.9 | 1.5 | 0.3 |
| 2×32 | 17.2 | 1.8 | 0.3 |
| 2×64 | 20.8 | 2.0 | 0.5 |
Minimum Return Loss: 55 dB for all types. All measurements performed at room temperature. Connector losses are excluded.
Frequently Asked Questions
Are you a manufacturer?
Yes, we are a manufacturer, FTTH solution and data center total solution provider in Shenzhen, China, established in 2000.
What's your MOQ?
MOQ can be 1 piece, but the price is not competitive. Larger quantities receive more competitive pricing.
Can you quote FOB price?
Yes. We can deliver by air, DHL, TNT, UPC, FEDEX, etc. For large quantities we deliver by sea. We provide quotes with freight and lead time based on your detailed requirements and quantity.
How is your quality?
Our production follows IEC and European standards. We are CE, ISO, RoHS, CPR, and ANATEL certified. All products are 100% tested before delivery.
What's your lead time?
It depends on quantity and products. For fiber optic patch cords, lead time is 2-3 working days for orders up to 5000 pieces. We keep regular products in stock and can handle urgent orders.
What's your warranty?
We offer 1-year warranty for patch cords from delivery date, covering non-artificial damage only. For artificial damage, we provide free repair with freight paid by customer.
What's your packing?
International export standard packaging. Custom logo printing available upon request before quotation.
Can you offer OEM/ODM?
Yes, all products accept OEM/ODM. We can sign Confidentiality Agreements.
Can I have a sample?
Free samples provided for products under $10. Freight is paid by the buyer before delivery.
How can I order?
1. Send inquiry with product name, specification, and quantity
2. We provide quotation with lead time
3. After confirmation, we send Proforma Invoice with bank details
4. Production begins after payment receipt
5. Confirm consignee details before delivery
6. Tracking number provided after shipment
2. We provide quotation with lead time
3. After confirmation, we send Proforma Invoice with bank details
4. Production begins after payment receipt
5. Confirm consignee details before delivery
6. Tracking number provided after shipment
What is your payment term?
T/T, Western Union, Paypal, MoneyGram. For large amounts: 50% deposit in advance, 50% balance paid before delivery.
