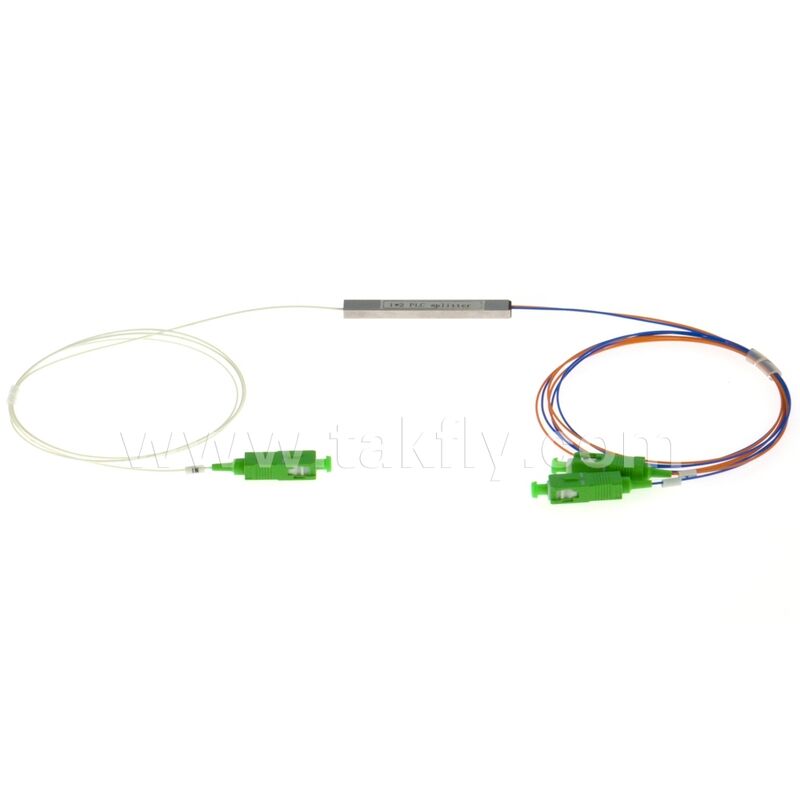

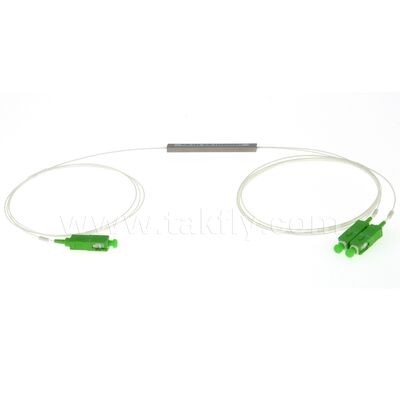

1x2 SC-APC 0.9mm/0.25mm steel tube PLC splitter with colored outlets
Product Details:
| Place of Origin: | China, Shenzhen |
| Brand Name: | OEM/Takfly |
| Certification: | CE, ROHS, REACH, ISO9001, ISO14001 |
| Model Number: | DF-PLC -1X2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Can be negotiated |
| Packaging Details: | blister packaging + carton |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T, Western Union, Paypal, |
| Supply Ability: | 50000pcs per month |
|
Detail Information |
|||
| Type: | Single-mode Fiber | Connector: | SC/APC |
|---|---|---|---|
| Allowed Lateral Pressure: | >1000(N/100mm) | Allowed Tensile Strength: | 1000N<10000N |
| Sheath Material: | PVC | Fiber Length: | Customized |
| Highlight: | 1x2 SC-APC PLC splitter,0.9mm steel tube PLC splitter,PLC splitter with colored outlets |
||
Product Description
The 1x2 SC-APC 0.9mm/0.25mm steel tube PLC splitter with colored outlets is a compact, high-performance optical power splitter built on an integrated quartz baseplate. Single mode PLC 1×N and 2×N splitters uniformly divide optical signals from one or two inputs to multiple outputs, and can also operate in reverse to combine multiple signals into one or two fibers.
- Fiber To The Home (FTTH)
- Passive Optical Networks (PON / GPON / EPON)
- CATV Network (Cable Television Network) Communication Systems
- Fiber Optic Test Equipment
- Fiber Optic Sensing
- Local Area Networks (LAN)
- All-fiber construction for dependable optical performance
- High reliability and long-term environmental stability
- Outstanding optical performance with low insertion loss and PDL
- Multiple fiber types available to suit different network requirements
- Low Insertion Loss: Features low insertion loss, PDL, and excess loss for high performance.
- High Isolation: Provides high isolation and good environmental stability.
- Customizable Length: Pigtail length is 1.5m or can be customized to specific requirements.
- Wide Application: Suitable for FTTH, PON, CATV, LAN, and communication systems.
- Multiple Splitter Types: Available in 1x2, 1x4, 1x8, 1x16, 1x32, and other configurations.
- Quality Certified: CE, ISO, RoHS, CPR, and ANATEL certified products.
- OEM/ODM Service: Accepts OEM and ODM orders with confidentiality agreements.
- Wide Operating Temperature: Operates reliably in temperatures ranging from -40 to 85 degrees Celsius.
| Parameter | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 | 2×2 | 2×4 | 2×8 | 2×16 | 2×32 | 2×64 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Operating Wavelength | 1260 to 1650 nm | |||||||||||
| P Level Insertion Loss (dB) | 3.8 | 7.2 | 10.3 | 13.5 | 16.8 | 20.1 | 4.2 | 7.4 | 10.6 | 13.9 | 17.2 | 20.5 |
| S Level Insertion Loss (dB) | 4.0 | 7.4 | 10.5 | 13.8 | 17.1 | 20.5 | 4.4 | 7.7 | 11.0 | 14.8 | 17.9 | 21.5 |
| Uniformity (dB) | 0.4 | 0.6 | 0.8 | 1.0 | 1.2 | 1.6 | 0.8 | 1.0 | 1.2 | 1.5 | 1.8 | 2.0 |
| PDL (dB) | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 |
| Return Loss (dB) | ≥ 55 | |||||||||||
| Directivity (dB) | ≥ 55 | |||||||||||
| Type of Fiber | ITU G657A | |||||||||||
| Operating Temperature | -40 ~ 85 °C | |||||||||||
| Pigtail Length | 1.5 +0.1/-0 m or customized | |||||||||||
| Parameter | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 | 2×2 | 2×4 | 2×8 | 2×16 | 2×32 | 2×64 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Operating Wavelength | 1260 to 1650 nm | |||||||||||
| P Level Insertion Loss (dB) | 4.0 | 7.4 | 10.5 | 13.7 | 17.0 | 20.3 | 4.4 | 7.6 | 10.8 | 14.1 | 17.4 | 20.7 |
| S Level Insertion Loss (dB) | 4.2 | 7.6 | 10.7 | 14.0 | 17.3 | 20.7 | 4.6 | 7.9 | 11.2 | 15.0 | 18.1 | 21.7 |
| Uniformity (dB) | 0.4 | 0.6 | 0.8 | 1.0 | 1.2 | 1.6 | 0.8 | 1.0 | 1.2 | 1.5 | 1.8 | 2.0 |
| PDL (dB) | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 |
| Return Loss (dB) | ≥ 55 | |||||||||||
| Directivity (dB) | ≥ 55 | |||||||||||
| Type of Fiber | ITU G657A | |||||||||||
| Operating Temperature | -40 ~ 85 °C | |||||||||||
| Pigtail Length | 1.5 +0.1/-0 m or customized | |||||||||||
Specifications are typical values; custom configurations and connector types are available on request.
Equipped with a high-quality ferrule and professional polishing technology, the optical endface is precisely matched to achieve more stable transmission and efficient connection.

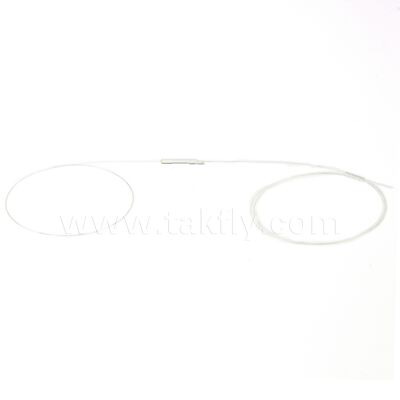

The mini steel tube PLC optical splitter delivers excellent performance parameters. It is insensitive to wavelength and supports full-band signal transmission from 1260 to 1650 nm.
