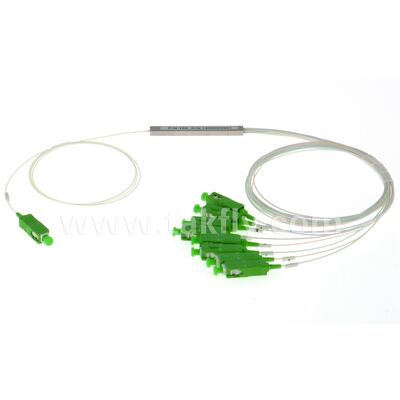

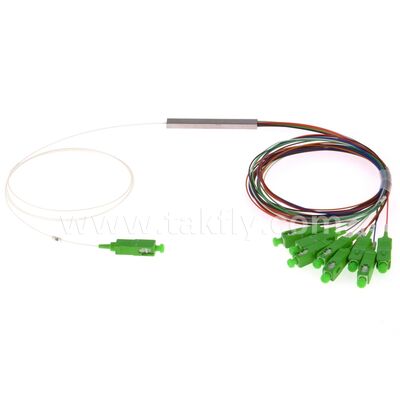

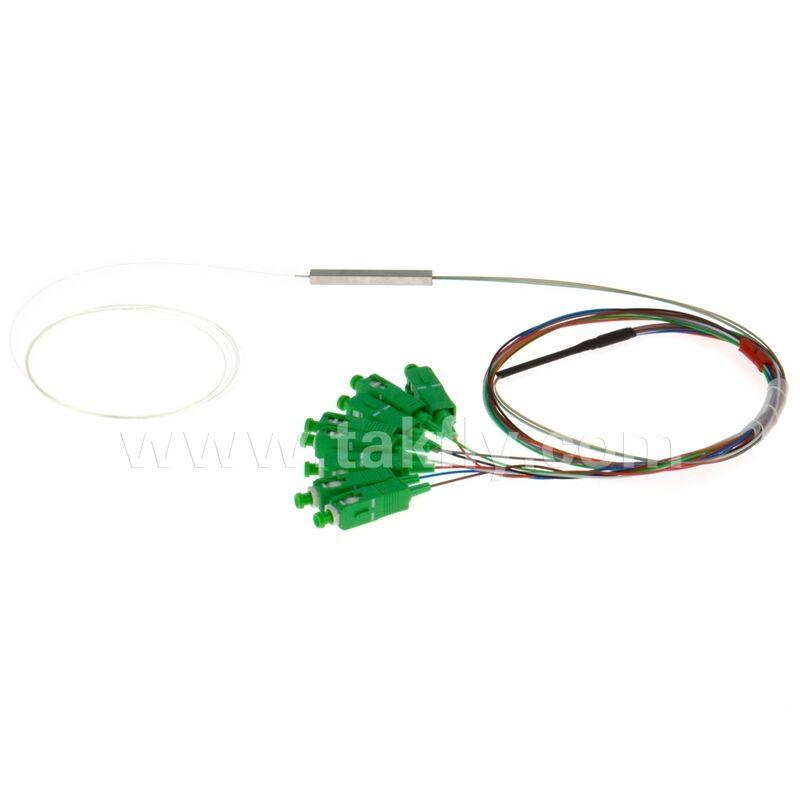

1X8 Sc/APC 0.9mm Steel Tube PLC Splitter in Telecommunincation
Product Details:
| Place of Origin: | China, Shenzhen |
| Brand Name: | OEM |
| Certification: | ISO, CE RoHS |
| Model Number: | DF-PLC -1X8 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Can be negotiated |
| Packaging Details: | blister packaging + carton |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T, Western Union, Paypal, |
| Supply Ability: | 50000pcs per month |
|
Detail Information |
|||
| Type: | Single-mode Fiber | Connector: | SC |
|---|---|---|---|
| Allowed Lateral Pressure: | >1000(N/100mm) | Allowed Tensile Strength: | 1000N<10000N |
| Sheath Material: | PVC | Fiber Length: | Customized |
| Highlight: | 1X8 SC/APC PLC Splitter,0.9mm Steel Tube PLC Splitter,Fiber Optic PLC Splitter Telecommunication |
||
Product Description
The 1×8 SC/APC 0.9mm steel tube PLC splitter is a planar lightwave circuit (PLC) power splitter built on an integrated quartz baseplate. Single-mode PLC 1×N and 2×N splitters uniformly divide optical signals from one or two inputs to multiple outputs, and can also operate in reverse to combine multiple signals into one or two fibers. This makes them ideal for passive optical networks and other high-density fiber distribution environments.
- Fiber To The Home (FTTH)
- Passive Optical Networks (PON / GPON / EPON)
- CATV Network (Cable Television Network) communication systems
- Fiber optic test equipment
- Fiber optic sensing
- Local Area Networks (LAN)
- All-fiber construction for stable optical performance
- High reliability and long-term environmental stability
- Outstanding optical performance with low insertion loss and PDL
- Multiple fiber types available to suit different network requirements
- Low Insertion Loss: Low insertion loss, PDL, and excess loss deliver high optical performance.
- High Isolation: High isolation and good environmental stability for reliable signal routing.
- Customizable Length: Standard pigtail length of 1.5m, customizable to specific requirements.
- Wide Application: Suitable for FTTH, PON, CATV, LAN, and communication systems.
- Multiple Splitter Types: Available in 1×2, 1×4, 1×8, 1×16, 1×32, and other configurations.
- Quality Certified: CE, ISO, RoHS, CPR, and ANATEL certified products.
- OEM/ODM Service: OEM and ODM orders accepted with confidentiality agreements.
- Wide Operating Temperature: Reliable operation from -40°C to 85°C.
| Parameter | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 | 2×2 | 2×4 | 2×8 | 2×16 | 2×32 | 2×64 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Operating Wavelength | 1260 to 1650 nm | |||||||||||
| P Level Insertion Loss (dB) | 3.8 | 7.2 | 10.3 | 13.5 | 16.8 | 20.1 | 4.2 | 7.4 | 10.6 | 13.9 | 17.2 | 20.5 |
| S Level Insertion Loss (dB) | 4.0 | 7.4 | 10.5 | 13.8 | 17.1 | 20.5 | 4.4 | 7.7 | 11.0 | 14.8 | 17.9 | 21.5 |
| Uniformity (dB) | 0.4 | 0.6 | 0.8 | 1.0 | 1.2 | 1.6 | 0.8 | 1.0 | 1.2 | 1.5 | 1.8 | 2.0 |
| PDL (dB) | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 |
| Return Loss (dB) | > 55 | |||||||||||
| Directivity (dB) | > 55 | |||||||||||
| Fiber Type | ITU G657A | |||||||||||
| Operating Temperature | -40 to 85 °C | |||||||||||
| Pigtail Length | 1.5 +0.1/-0 m or customized | |||||||||||
| Parameter | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 | 2×2 | 2×4 | 2×8 | 2×16 | 2×32 | 2×64 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Operating Wavelength | 1260 to 1650 nm | |||||||||||
| P Level Insertion Loss (dB) | 4.0 | 7.4 | 10.5 | 13.7 | 17.0 | 20.3 | 4.4 | 7.6 | 10.8 | 14.1 | 17.4 | 20.7 |
| S Level Insertion Loss (dB) | 4.2 | 7.6 | 10.7 | 14.0 | 17.3 | 20.7 | 4.6 | 7.9 | 11.2 | 15.0 | 18.1 | 21.7 |
| Uniformity (dB) | 0.4 | 0.6 | 0.8 | 1.0 | 1.2 | 1.6 | 0.8 | 1.0 | 1.2 | 1.5 | 1.8 | 2.0 |
| PDL (dB) | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 |
| Return Loss (dB) | > 55 | |||||||||||
| Directivity (dB) | > 55 | |||||||||||
| Fiber Type | ITU G657A | |||||||||||
| Operating Temperature | -40 to 85 °C | |||||||||||
| Pigtail Length | 1.5 +0.1/-0 m or customized | |||||||||||
Each splitter is assembled with a high-quality ferrule and professional polishing technology. Precise optical endface matching delivers more stable transmission and efficient connection.
TAKFLY's mini steel tube PLC optical splitter delivers excellent performance parameters. The PLC splitter is insensitive to wavelength and supports full-band signal transmission from 1260 to 1650 nm, ensuring consistent performance across the entire operating spectrum.
