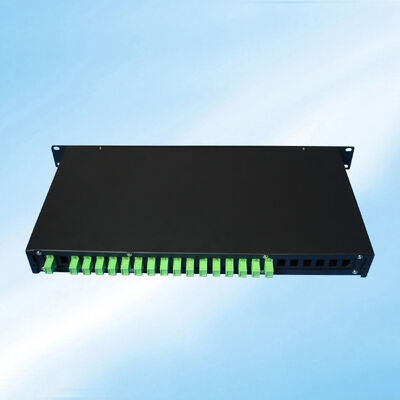

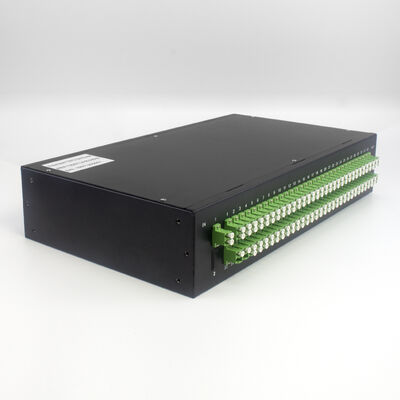

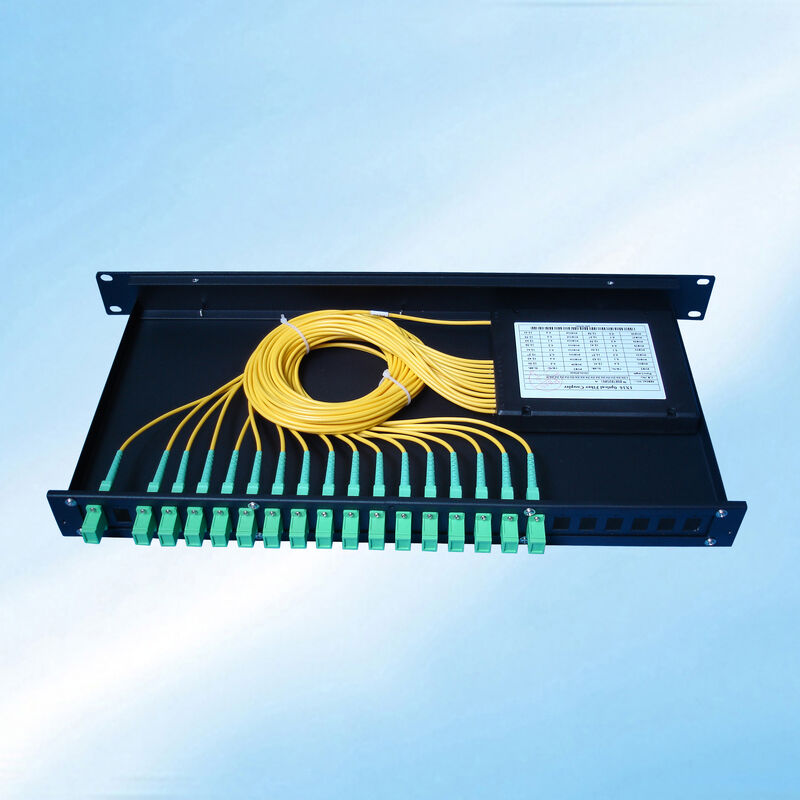

1X16 Rack Mount Fiber Optic PLC Splitter
Product Details:
| Place of Origin: | Guangdong, SHENZHEN |
| Brand Name: | TAKFLY |
| Certification: | CE,ROHS,REACH,ISO9001,ISO14001 |
| Model Number: | QSFP28-4SFP28-xxx |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Pices |
|---|---|
| Price: | US$0.01 ~ US$1200/PC |
| Packaging Details: | spone + box + carton |
| Delivery Time: | 3-7 working days |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
|
Detail Information |
|||
| Highlight: | rack mount fiber optic PLC splitter,1x16 fiber optic splitter,PLC splitter with warranty |
||
|---|---|---|---|
Product Description
1X16 Rack Mount Fiber Optic PLC Splitter
Product Overview
Rack Mount PLC (Planar Lightwave Circuit) Splitter is a power distribution device based on integrated quartz substrate technology. Single Mode PLC 1×N and 2×N splitters uniformly divide optical signals from one or two inputs to multiple outputs, and can also operate in reverse to combine multiple signals into one or two fibers.
Key Features
- Broadband Operation Wavelength
- Low Insertion Loss
- Low Polarization Dependent Loss (PDL)
- Compact Design
- Excellent Channel-to-Channel Uniformity
- High Reliability and Stability
Applications
- Telecommunication Networks
- PON Systems
- FTTH (Fiber to the Home)
- CATV Systems
- Video Transmission
Technical Specifications
Performance Parameters
| Parameter | Value |
|---|---|
| Operating Wavelength (nm) | 1260 ~ 1650 |
| Fiber Type | ITU-T G657A1, G657A2 and G.652D |
| Max. Temperature Stability (dB) | 0.5 (Typical 0.3) |
| Operating Temperature (°C) | -40 ~ +85 |
| Storage Temperature (°C) | -40 ~ +85 |
1×N Splitter Performance
| Type | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 |
|---|---|---|---|---|---|---|
| Max. Insertion Loss (dB) | 3.9 | 7.2 | 10.3 | 13.5 | 16.8 | 20.3 |
| Max. Uniformity (dB) | 0.8 | 0.8 | 0.8 | 1.0 | 1.5 | 2.0 |
| Max. PDL (dB) | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 |
2×N Splitter Performance
| Type | 2×2 | 2×4 | 2×8 | 2×16 | 2×32 | 2×64 |
|---|---|---|---|---|---|---|
| Max. Insertion Loss (dB) | 4.2 | 7.5 | 10.6 | 13.9 | 17.2 | 20.8 |
| Max. Uniformity (dB) | 0.8 | 1.0 | 1.2 | 1.5 | 1.8 | 2.0 |
| Max. PDL (dB) | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 |
Note: All measurements made at room temperature, connectors not included. Minimum Return Loss: 55 dB for all types.
Packaging Dimensions
1×N Splitter Packaging
| Package Type | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 |
|---|---|---|---|---|---|---|
| Basic Metal Box (L×W×H mm) | 40×4×4 | 40×4×4 | 40×4×4 | 50×7×4 | 60×7×4 | 60×12×4 |
| Mini Module Metal Box (mm) | 60×7×4 | 60×7×4 | 60×7×4 | 60×12×4 | 80×20×6 | 100×40×6 |
| Module Plastic Box (mm) | 100×80×10 | 100×80×10 | 100×80×10 | 120×80×18 | 120×80×18 | 140×115×18 |
| Rack Mount (mm) | 483×250×44.5 | 483×250×89 | ||||
2×N Splitter Packaging
| Package Type | 2×2 | 2×4 | 2×8 | 2×16 | 2×32 | 2×64 |
|---|---|---|---|---|---|---|
| Basic Metal Box (L×W×H mm) | 60×7×4 | 60×7×4 | 60×7×4 | 60×7×4 | 60×7×4 | 80×12×4 |
| Mini Module Metal Box (mm) | 70×7×4 | 70×7×4 | 70×7×4 | 80×12×4 | 80×20×6 | 100×40×6 |
| Module Plastic Box (mm) | 100×80×10 | 100×80×10 | 100×80×10 | 120×80×18 | 120×80×18 | 140×115×18 |
| Rack Mount (mm) | 483×250×44.5 | 483×250×89 | ||||
Frequently Asked Questions
Q: Are you a manufacturer?
A: Yes, we are a manufacturer and FTTH solution/data center total solution provider based in Shenzhen, China, established in 2000.
Q: What's your MOQ?
A: MOQ can be 1 piece, but pricing becomes more competitive with larger quantities.
Q: Can you quote FOB price?
A: Yes. We deliver via air (DHL, TNT, UPS, FEDEX) or sea for large quantities. We provide quotes with freight and lead times based on your detailed requirements.
Q: How is your quality?
A: Our production follows IEC and European standards with CE, ISO, RoHS, CPR, and ANATEL certifications. All products are 100% tested before delivery.
Q: What's your lead time?
A: Depends on quantity and product type. Fiber optic patch cords: 2-3 working days for up to 5,000 pieces. We stock regular products and accommodate urgent orders.
Q: What's your warranty?
A: 1-year warranty for patch cords (non-artificial damage). For artificial damage, we provide free repair with customer covering freight costs.
Q: What's your packing?
A: International export standard packaging. Custom logo printing available upon request.
Q: Can you offer OEM/ODM?
A: Yes, all products accept OEM/ODM. We can sign Confidentiality Agreements.
Q: Can I have a sample?
A: Free samples available for products under $10. Buyer pays freight before delivery.
Q: How can I order?
A: 1. Send inquiry with product specifications and quantity. 2. We provide quotation with lead time. 3. Confirm quotation and receive PI. 4. Production begins after payment. 5. Confirm consignee details. 6. Receive tracking number after delivery.
Q: What is your payment term?
A: T/T, Western Union, Paypal, MoneyGram. For large amounts: 50% deposit, 50% balance before delivery.
With the same quality standards, if you find better pricing elsewhere, TAKFLY can match it. Our team brings 3+ years of optical fiber industry experience to provide professional product assistance.
