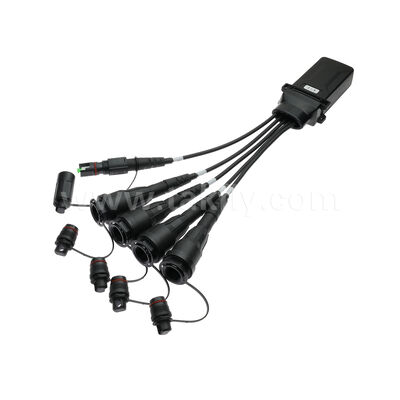

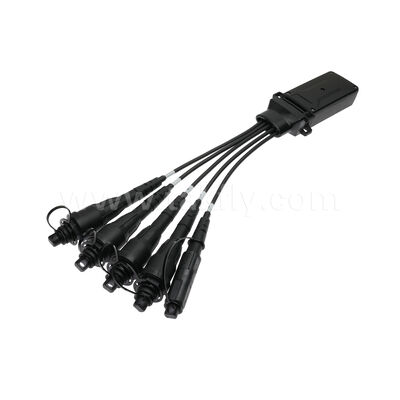

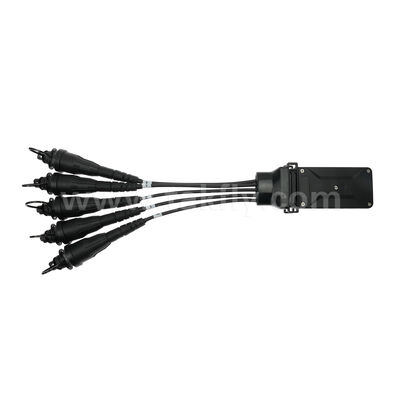

Waterproof MPO- SM G657A2 2.0mm Cable Fiber Optic PLC Splitter IP68
Product Summary
Mini FiberHub Closure Introduction Mini FiberHub Closure provides the most cost-effective method of deploying optical fiber in outside plant distribution networks, offering significantly faster installation speeds than traditional field methods. The assemblies guarantee an easy, one-step connection ...
Product Custom Attributes
Waterproof fiber optic PLC splitter
,Mini fiber optic splitter IP68
,G657A2 fiber optic splitter
Basic Properties
Trading Properties
Product Description
Mini FiberHub Closure provides the most cost-effective method of deploying optical fiber in outside plant distribution networks, offering significantly faster installation speeds than traditional field methods. The assemblies guarantee an easy, one-step connection system with combined push-pull insertion and nut-style mechanical latch.
Mini FiberHub Closure delivers quick installation solutions and delivers excellent performance when mating with SuperTap connectors. Compatible with both armored and non-armored cables.
| Compliance Standards | GR-3120, GR-3152, IEC 61753-1, IEC 61754-4 |
| Insertion Loss (SuperTap/SC&LC)* | Max. 0.5dB, Mean 0.15dB (8° angled) |
| Insertion Loss (SuperTap/MPO) | Max. 0.6dB, Mean 0.35dB (8° angled) |
| Return Loss (SuperTap/SC&LC) | Min 55dB (8° angled) |
| Return Loss (SuperTap/MPO) | Min 55dB (8° angled) |
| Fiber Type | ITU-T G.657A2 |
| Operation Temperature | -40°C to 70°C |
| Storage Temperature | -40°C to 70°C |
| Dust Cap Max. Pulling Force | 100lb |
| Water Resistance | IP68 |
*SuperTap/SC connector is compatible with OptiTap™
"X" means polishing method. A: APC polishing; U: UPC polishing
- Provides moisture and dust protection for use in harsh industrial environments
- IP68 protection, salt-mist proof, humidity proof, dust proof
- Drastically reduces field splicing with predetermined loss at each waterproof tether access point
- Utilizes traditional field installation techniques for aerial, below ground and duct applications
- Reduces installation time by as much as 50 percent per network access point
- 100% optically tested to ensure quality performance assemblies
- Available in single mode and multimode styles to work with any common fiber type
- Broad temperature range (-40 to +70°C) ideal for indoor or outdoor applications
- Mark on dust cap helps people who cannot distinguish between colors to operate
Takfly's Fiber Optic PLC Splitter is an optical power management device fabricated using silica optical waveguide technology. It can split the optical signal accurately and evenly, and is available in a variety of configurations.
Takfly's Fiber Optic PLC Splitter is made by silicon optical waveguide technology. It is composed of input, output and splitter components that can split the optical signal accurately and evenly.
Takfly's Fiber Optic PLC Splitter can be used in a variety of applications including telecommunications, CATV, local and metro networks, optical fiber sensing, and video transmission.
The Brand Name of Takfly's Fiber Optic PLC Splitter is Takfly/OEM.
Takfly's Fiber Optic PLC Splitter is made in Shenzhen, China.
-
