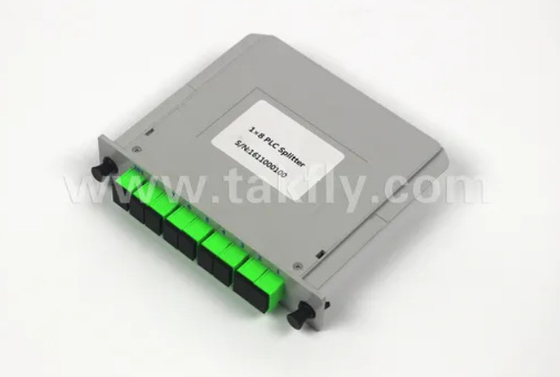

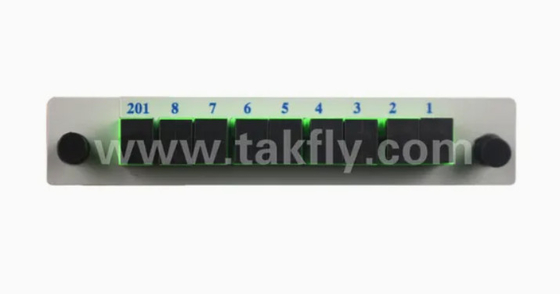

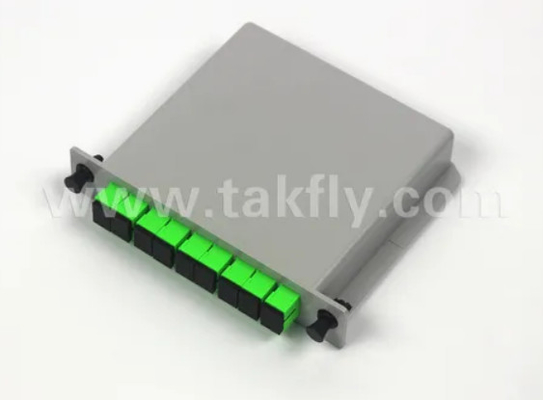

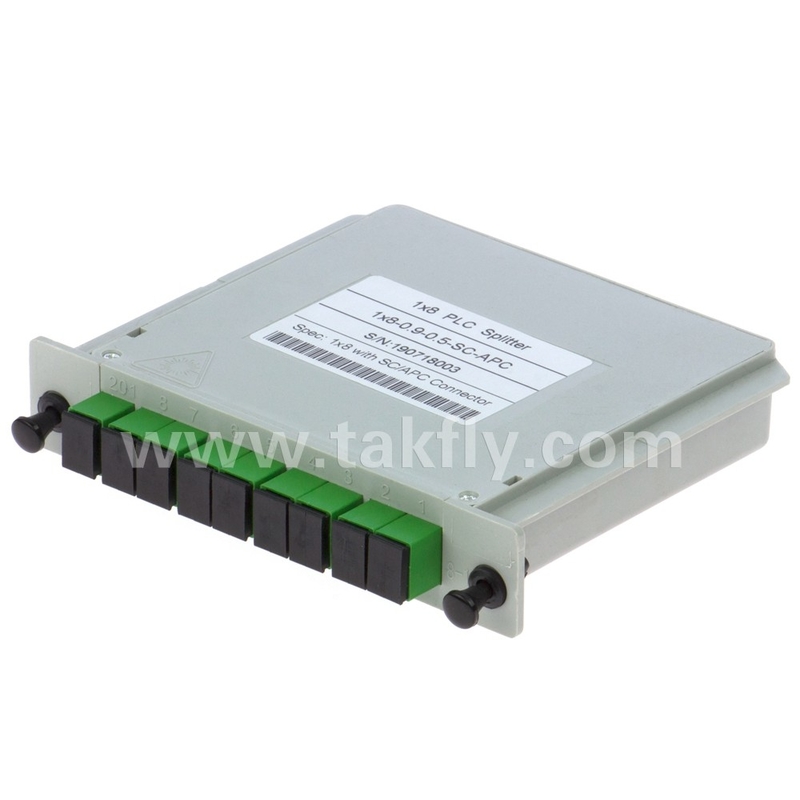

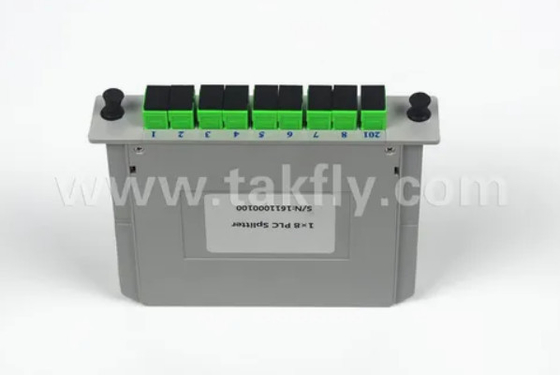

1*8 Single Mode G657A1 Fiber Casette Type LGX PLC Splitter With Sc/APC Connector High Reliability And Stability
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | Takfly/OEM |
| Certification: | CE, ROHS, REACH, ISO9001, ISO14001 |
| Model Number: | 1X8，LGX PLC Splitter |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Can be negotiated |
| Delivery Time: | 3-7 work days |
| Payment Terms: | Western Union, MoneyGram, L/C, T/T |
| Supply Ability: | 3000pcs/month |
|
Detail Information |
|||
| Uniformity: | ≤0.5dB | Fiber Type: | G657A1 |
|---|---|---|---|
| PDL: | ≤0.3dB | Directivity: | ≥50dB |
| Package Type: | LGX | Storage Temperature: | -40~+85℃ |
| Operating Temperature: | -40~+85℃ | Fiber Length: | 1.8m Or Negotiated |
| Cable Diameter: | 0.9mm、2.0mm、3.0mm | ||
| Highlight: | 1*8 Fiber Casette PLC Splitter,High Reliability PLC Splitter,G657A1 PLC Splitter |
||
Product Description
Product Description:
Planar Lightwave Circuit (PLC) Splitter is fabricated using silica optical wave guide technology. It features wide operating wavelength range, good channel-to-channel uniformity, high reliability and small size, and it is widely used in PON EPON, GPON, and future PON networks to realize optical signal power management. Takfly provides a whole series of 1xN and 2xN splitters from 1×2, to 1×64, 1×128 that are tailored for specific applications. All products meet Telcordia 1209 and 1221 reliability requirements.
Splitter is a key component in FTTH and is responsible to distribute the signal from CO to numbers of premises. This highly stable Casette splitter performs superbly across temperature and wavelength providing low insertion loss, low input polarization sensitivity, excellent uniformity.
Features:
1.Low Insertion loss;
2.Low polarization-dependent loss (PDL);
3.Compact Design for insalling;
4.Good channel-to-channel uniformity;
5.Wide Operating Wavelength: from 1260nm to 1650nm;
6.Wide Operating Temperature: from -40ºC to 85ºC;
7.High Reliability and Stability;
8.Compliant with following Telcordia GR-1209-core/GR-1221-core specification;
1) Telcordia GR-1209-CORE-2001;
2) Telcordia GR-1221-CORE-1999;
3) YD/T1117-2001;
Technical Parameters:
Technical Specifications for 1×N PLC Splitter with Connector
Technical Specifications for 2×N PLC Splitter with Connector
Application:
1.FTTH Systems;
2.PON GPON, EPON, BPON etc Networks;
3.CATV Links;
4.Optical Signal Distribution;
Compliance
1. Telcordia GR-1209-CORE
2. Telcordia GR-1221-CORE
2. RoHS&CE
Customization:
Takfly/OEM Passive Fiber Splitter is a cost-effective solution for a broad range of applications. It is designed to split optical signals evenly and accurately. This Fiber Optic PLC Splitter is tailored to fit your needs with the following features:
- Brand Name: Takfly/OEM
- Model Number: PLC Splitter
- Place of Origin: Shenzhen, China
- Directivity: ≥55dB
- Return Loss: ≥50dB
- Connector Type: SC/UPC/APC
- Wavelength: 1260 ~ 1650nm
- PDL: ≤0.4dB
To learn more about our Passive Fiber Splitter, contact us today.
Support and Services:
We provide technical support and services for our Fiber Optic PLC Splitter products. Our technical support team is available to answer any questions you may have about our products, from installation and setup to troubleshooting and maintenance.
Our team is experienced in the installation and maintenance of all types of Fiber Optic PLC Splitters, and we can provide you with detailed instructions and advice on how to get the most out of your splitter.
We also offer on-site technical support in case you need assistance with installation or maintenance. Our technicians can come to your location and help you with any issues you may be having.
If you ever have any questions about our Fiber Optic PLC Splitter products or services, please don't hesitate to contact us. We're here to help!
Packing and Shipping:
Fiber Optic PLC Splitter Packaging and Shipping:
- Carefully package each PLC splitter in bubble wrap to ensure that it is not damaged during shipping.
- Put each bubble wrapped PLC splitter in a box or padded envelope.
- If shipping multiple PLC splitters, use a larger box with multiple compartments or multiple boxes to separate each splitter.
- Label each box with the contents and the destination address.
- Ship the package through a reliable shipping carrier.
FAQ:
- Q1: What is Fiber Optic PLC Splitter?
- A1: Fiber Optic PLC Splitter, made by Takfly/OEM, is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability and wide operating wavelength range.
- Q2: What is the model number for Fiber Optic PLC Splitter?
- A2: The model number for Fiber Optic PLC Splitter is PLC Splitter.
- Q3: Where is Fiber Optic PLC Splitter made?
- A3: Fiber Optic PLC Splitter is made in Shenzhen, China.
- Q4: What are the features of Fiber Optic PLC Splitter?
- A4: Fiber Optic PLC Splitter features small size, high reliability and wide operating wavelength range.
- Q5: What is the brand of Fiber Optic PLC Splitter?
- A5: The brand of Fiber Optic PLC Splitter is Takfly/OEM.
