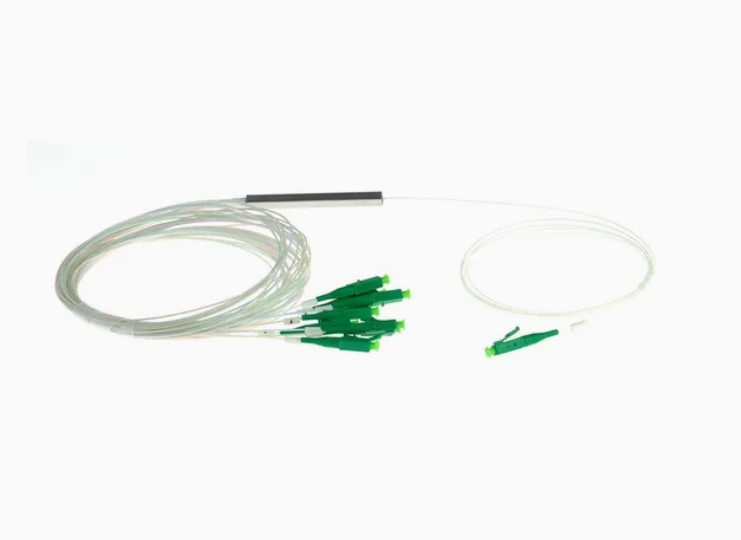

G657A1 Fiber Type Pre-Connector LC 1X8 900um Mini Steel Tube Fiber Optic PLC Splitter PDL≤0.4dB
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | Takfly/OEM |
| Certification: | CE, ROHS, REACH, ISO9001, ISO14001 |
| Model Number: | 1X8 PLC Splitter |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Can be negotiated |
| Delivery Time: | 3-7 work days |
| Payment Terms: | Western Union, MoneyGram, L/C, T/T |
| Supply Ability: | 3000pcs/month |
|
Detail Information |
|||
| Uniformity: | ≤0.5dB | Fiber Type: | G657A1 |
|---|---|---|---|
| PDL: | ≤0.4dB | Directivity: | ≥55dB |
| Package Type: | Steel Tube | Storage Temperature: | -40~+85℃ |
| Fiber Length: | 1m | Cable Diameter: | 0.9mm |
| Highlight: | LC Fiber Optic PLC Splitter,1X8 Fiber Optic PLC Splitter,900um Fiber Optic PLC Splitter |
||
Product Description
Product Description:
Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting. Takfly provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE and GR-1221-CORE requirements.
Features:
1. Various coupling ratio
2. Single mode and multi mode available
3. Low insertion loss, low PDL
4. Environmental stable
5. Industry standard and custom housing available
6. Variety of connectors available
7.1x2, 1x4 and 1x n customized couplers configuration available
Technical Parameters:
Application:
1. Optical communication system
2. System and signal monitoring
3.CATV Systems & Fiber Sensors
4. Fiber to the home (FTTH)
5. Network redundancy
6. Laser splitting
Compliance
1. Telcordia GR-1209-CORE
2. Telcordia GR-1221-CORE
2. RoHS&CE
Customization:
Takfly/OEM Passive Fiber Splitter is a cost-effective solution for a broad range of applications. It is designed to split optical signals evenly and accurately. This Fiber Optic PLC Splitter is tailored to fit your needs with the following features:
- Brand Name: Takfly/OEM
- Model Number: PLC Splitter
- Place of Origin: Shenzhen, China
- Directivity: ≥55dB
- Return Loss: ≥50dB
- Connector Type: SC/UPC/APC
- Wavelength: 1260 ~ 1650nm
- PDL: ≤0.4dB
To learn more about our Passive Fiber Splitter, contact us today.
Support and Services:
We provide technical support and services for our Fiber Optic PLC Splitter products. Our technical support team is available to answer any questions you may have about our products, from installation and setup to troubleshooting and maintenance.
Our team is experienced in the installation and maintenance of all types of Fiber Optic PLC Splitters, and we can provide you with detailed instructions and advice on how to get the most out of your splitter.
We also offer on-site technical support in case you need assistance with installation or maintenance. Our technicians can come to your location and help you with any issues you may be having.
If you ever have any questions about our Fiber Optic PLC Splitter products or services, please don't hesitate to contact us. We're here to help!
Packing and Shipping:
Fiber Optic PLC Splitter Packaging and Shipping:
- Carefully package each PLC splitter in bubble wrap to ensure that it is not damaged during shipping.
- Put each bubble wrapped PLC splitter in a box or padded envelope.
- If shipping multiple PLC splitters, use a larger box with multiple compartments or multiple boxes to separate each splitter.
- Label each box with the contents and the destination address.
- Ship the package through a reliable shipping carrier.
FAQ:
- Q1: What is Fiber Optic PLC Splitter?
- A1: Fiber Optic PLC Splitter, made by Takfly/OEM, is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability and wide operating wavelength range.
- Q2: What is the model number for Fiber Optic PLC Splitter?
- A2: The model number for Fiber Optic PLC Splitter is PLC Splitter.
- Q3: Where is Fiber Optic PLC Splitter made?
- A3: Fiber Optic PLC Splitter is made in Shenzhen, China.
- Q4: What are the features of Fiber Optic PLC Splitter?
- A4: Fiber Optic PLC Splitter features small size, high reliability and wide operating wavelength range.
- Q5: What is the brand of Fiber Optic PLC Splitter?
- A5: The brand of Fiber Optic PLC Splitter is Takfly/OEM.
