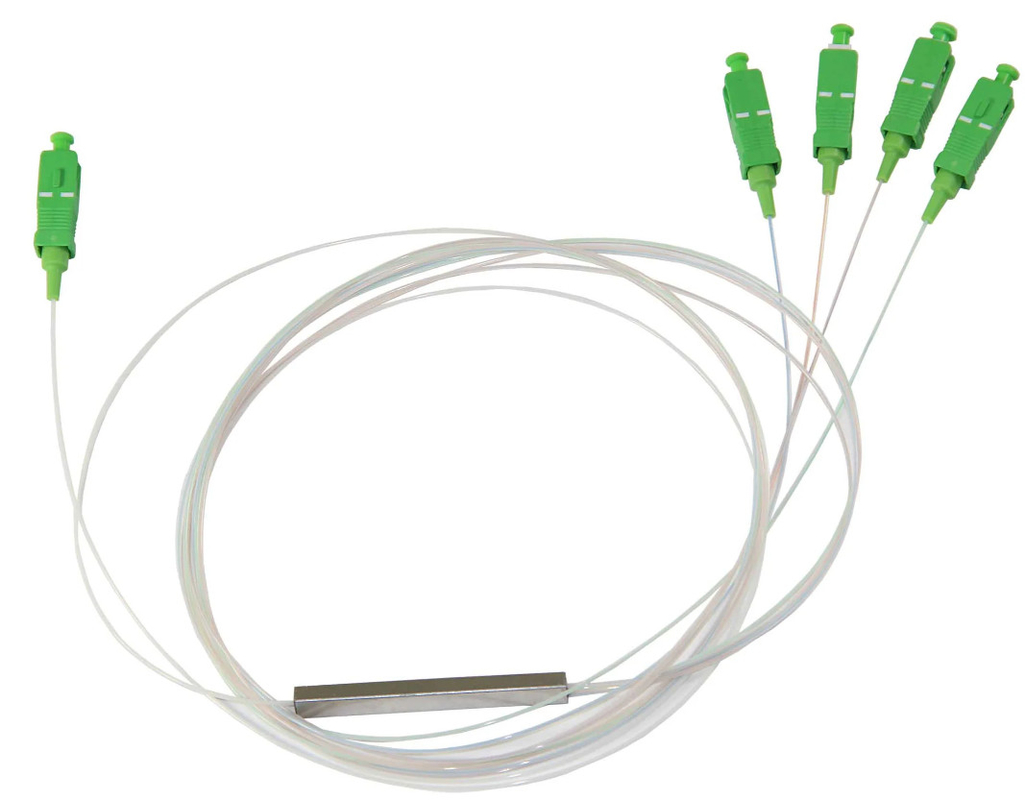

• 1m Optical Fiber Plc Splitter 1*4 Steel Tube Type
1m Optical Fiber Plc Splitter 1*4 Steel Tube Type

1m Optical Fiber Plc Splitter 1*4 Steel Tube Type

Product Details:

Place of Origin: Shenzhen, China
Brand Name: Takfly/OEM
Model Number: PLC Splitter
Get Best Price Contact Now

Detail Information

PDL: ≤0.4dB Uniformity: ≤0.5dB
Package Type: Box Connector Type: SC/UPC/APC
Fiber Length: 1m Operating Temperature: -40~+85℃
Product Name: Fiber Optic PLC Splitter Storage Temperature: -40~+85℃
High Light:

1m optical fiber plc splitter

,

low pdl optical fiber plc splitter

,

low pdl 1x4 optical splitter

Product Description

Product Description:

The optical splitter can be divided into a molten taper and a flat waveguide according to the principle. Two, molten tapered products are two or more fibers for side fusion, flat waveguide is a micro-optical component type product, using photolithography technology, in the medium or semiconductor substrate to form a light waveguide, to achieve branch distribution function.

The two types of species have similar separation principles, they change the fade field between fibers to couple each other (coupling degree, coupling length) and change the radius of fiber to achieve different sizes of branching, and vice versa can also combine multiple optical signals into one signal called a synthesizer.

Melt-cone fiber coupler has become the mainstream manufacturing technology in the market because of its simple production method, cheap price, and easy connection with external fiber optic, and it can withstand the advantages of mechanical vibration and temperature change.



Features:

When it comes to optical components, we want a product which is reliable, stable and with low insertion loss and low PDL(Polarization Dependent Loss). Broadband operation wavelength is a must have feature as it helps to make sure range of operation won't be limited. The size of the component is also important since it takes an important role in the whole system design. It's highly desirable that the component has good channel-to-channel uniformity to ensure it won't cause any distortion.

Finally, high reliability and stability should be taken into consideration since it directly affects the system performance. Once a component lose its reliability and stability, the data transmission won't be stable no matter how good the design is.

Therefore, when it comes to choosing an optical component, these characteristics should be taken into account.



Technical Parameters:

Type 1×2 1×4 1×8 1×16 1×32
Fiber Type ITU-T G657A1 , G657A2 and G.652D
Operating Wavelength (nm) 1260~1650
Insertion Loss (dB) Typical 3.6 6.8 10 13 16
(P/S) Max 3.8/4.0 7.1/7.3 10.2/10.5 13.5/13.7 16.5/16.8
Loss Uniformity (dB) Max 0.6 0.6 0.8 1.2 1.5
Polarization Dependent Loss (dB) Max 0.15 0.15 0.25 0.3 0.3
Directivity (dB) Min 55
Return Loss (dB) Min UPC:50 APC:55
Operating Temperature(℃) -40~85
Storage Temperature(℃) -40~85


Applications:

Telecommunication has been an important part of our daily lives. It is rapidly growing and constantly evolving as technology develops. One of the newest areas of growth is in the area of fiber optics.

A passive optical network, or PON System, is an optical distribution network used to provide fiber-optic broadband services to residential and commercial customers. It is currently one of the most common ways of providing Internet access and other communication services to end users. It is a cost-effective and efficient way to deliver high-speed and reliable communication services.

Fiber to the home (FTTH) is a technology that enables service providers to deliver a full range of services -- Internet access, television, and telephony -- to end users using fiber-optic cables all the way to the customer's dwelling. This allows for much higher transmission speeds than traditional cable and DSL services, as the fiber-optic cables are able to carry much more information.

CATV (community antenna television) is a system for distributing television content using a coaxial cable system. This system is used mainly in rural areas, to provide television programming over a large area. This system requires less infrastructure than FTTH, but is limited to providing basic television services.

Video transmission is an important part of the telecommunications industry. It is used for real-time transmission of video content, such as television programming, live events, and video conferencing. This technology is used by a variety of industries, from entertainment to business.



Customization:

Fiber Optic PLC Splitter
  • Brand Name: Takfly/OEM
  • Model Number: PLC Splitter
  • Place of Origin: Shenzhen, China
  • Dimension: 40*4*4mm
  • Connector Type: SC/UPC/APC
  • Product Name: Fiber Optic PLC Splitter
  • PDL: ≤0.4dB
  • Uniformity: ≤0.5dB

Takfly offers custom-made Fiber Optic PLC Splitter, also known as Passive Fiber Splitter, which is specifically designed to split the optical signals into multiple optical fibers. The offered PLC Splitter is manufactured using premium quality components and advanced technology in compliance with industry norms. It is guaranteed to have excellent performance with PDL of ≤0.4dB and uniformity of ≤0.5dB.



Support and Services:

We provide technical support and services for Fiber Optic PLC Splitter. Our expert team is available 24/7 to provide assistance with troubleshooting, installation, product selection, warranty and return policies, and general inquiries.

We offer a range of services to ensure that our customers’ needs are met. This includes installation and maintenance, as well as technical assistance with product selection, troubleshooting, and product return policies. We also provide a one-year warranty on all Fiber Optic PLC Splitter products.

In addition to technical support and services, we provide training and education to ensure that our customers are knowledgeable on the products they purchase. We offer free webinars and online tutorials, as well as in-person training sessions and seminars.

At Fiber Optic PLC Splitter, our mission is to provide our customers with the highest quality products and services. We are committed to providing prompt, professional, and knowledgeable technical support and services to ensure that our customers have the best experience possible.



Packing and Shipping:

The packaging and shipping of Fiber Optic PLC Splitter follows the industry standard.

The product will be packed in a box which is strong enough to protect it from damage. The box will be marked with the product name and other relevant information. The box will be sealed with tape.

The product will be shipped using a reliable carrier. The customer will be provided with tracking information so that they can track the product's progress.



FAQ:

Q1: What is a Fiber Optic PLC Splitter?

A: A Fiber Optic PLC splitter is a passive optical device used in a fiber optic network that splits the optical signal into multiple signals without affecting its quality. It is typically used in a point-to-multipoint fiber optic networks.

Q2: What is the brand name of Fiber Optic PLC Splitter?

A: The brand name of Fiber Optic PLC Splitter is Takfly/OEM.

Q3: What is the model number of Fiber Optic PLC Splitter?

A: The model number of Fiber Optic PLC Splitter is PLC Splitter.

Q4: Where is the Fiber Optic PLC Splitter manufactured?

A: The Fiber Optic PLC Splitter is manufactured in Shenzhen, China.

Q5: What are the benefits of using Fiber Optic PLC Splitter?

A: Fiber Optic PLC Splitter offers a number of benefits including low insertion loss, low polarization dependent loss, high return loss, high reliability, and low cost. It is also easy to install and maintain.
