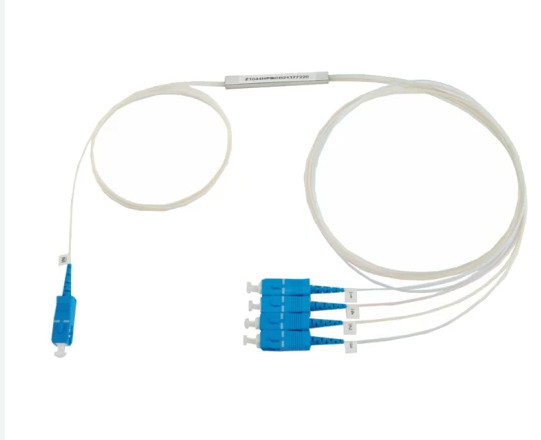

• 1×4 Mini Plc Splitter Module High Reliability And Stability
1×4 Mini Plc Splitter Module High Reliability And Stability

1×4 Mini Plc Splitter Module High Reliability And Stability

Product Details:

Place of Origin: Shenzhen, China
Brand Name: Takfly/OEM
Model Number: PLC Splitter
Get Best Price Contact Now

Detail Information

Uniformity: ≤0.5dB Weight: 20g
Fiber Type: G657A1 PDL: ≤0.4dB
Directivity: ≥55dB Package Type: Steel Tube
Storage Temperature: -40~+85℃ Fiber Length: 1m
High Light:

1×4 mini plc splitter


high reliability mini plc splitter


1x4 plc splitter

Product Description

Product Description:

Optical Splitter

Optical splitters can be divided into two categories: molten taper and flat waveguide. The molten taper is formed by the fusion of two or more fibers, while the flat waveguide is a micro-optical component formed using photolithography technology on a medium or semiconductor substrate.


They both manipulate the fade field between fibers to couple them and change the radius of the fiber to achieve different levels of branching.


Flat waveguides also have the ability to combine multiple optical signals into one signal, called a synthesizer. Despite this, molten taper has become the mainstream in the market due to its simple production method, low cost, and easy connection with external fiber optics. Furthermore, it can withstand mechanical vibration and temperature change.



For applications with broad wavelength range requirement, a broadband optical device is a great option. Its most prominent features are:

  • Low insertion loss, which ensures low power loss throughout the broad operational range
  • Low Polarization Dependent Loss (PDL), meaning signals remain at steady levels regardless of polarization
  • Compact design, perfect for space-limited installation
  • Good channel-to-channel uniformity guarantees channel separation and reliable data transmission.
  • High reliability and stability

These features combined make the broadband device an ideal choice for the most demanding applications.


Technical Parameters:

1×N PLC Splitter
(Measured at room temperature and excludes connector loss)
Type 1×2 1×4 1×8 1×16 1×32
Fiber Type ITU-T G657A1 , G657A2 and G.652D
Operating Wavelength (nm) 1260~1650
Insertion Loss (dB) Typical 3.6 6.8 10 13 16
(P/S) Max 3.8/4.0 7.1/7.3 10.2/10.5 13.5/13.7 16.5/16.8
Loss Uniformity (dB) Max 0.6 0.6 0.8 1.2 1.5
Polarization Dependent Loss (dB) Max 0.15 0.15 0.25 0.3 0.3
Directivity (dB) Min 55
Return Loss (dB) Min UPC:50 APC:55
Operating Temperature(℃) -40~85
Storage Temperature(℃) -40~85


The telecommunication sector is among the most important drivers of the global economy. A key component for successful telecommunication is the Passive Optical Network System (PON). A PON system is an economical and efficient way of providing wideband twisted pair, coaxial cable, and fiber optic transmission for voice, video, and data. This system can serve more than 32 users with a single optical fiber.


Fiber to the Home (FTTH) is a subset of a PON system. This technology enables users to enjoy voice, video, and data services through an optical fiber from a service provider to a residence. This is an advanced way for households to conveniently access various digital services.


CATV (cable television) is another important component for quality telecommunication. A CATV system allows users to access sound, image, and data signals. The signals are transmitted using a network of cable and antennas. The CATV also helps to facilitate video transmissions by enabling the transmission of expressed images over a network.



Fiber Optic PLC Splitter

Takfly/OEM Passive Fiber Splitter is a cost-effective solution for a broad range of applications. It is designed to split optical signals evenly and accurately. This Fiber Optic PLC Splitter is tailored to fit your needs with the following features:

  • Brand Name: Takfly/OEM
  • Model Number: PLC Splitter
  • Place of Origin: Shenzhen, China
  • Directivity: ≥55dB
  • Return Loss: ≥50dB
  • Connector Type: SC/UPC/APC
  • Wavelength: 1260 ~ 1650nm
  • PDL: ≤0.4dB

To learn more about our Passive Fiber Splitter, contact us today.


Support and Services:

Fiber Optic PLC Splitter Technical Support and Services

We provide technical support and services for our Fiber Optic PLC Splitter products. Our technical support team is available to answer any questions you may have about our products, from installation and setup to troubleshooting and maintenance.


Our team is experienced in the installation and maintenance of all types of Fiber Optic PLC Splitters, and we can provide you with detailed instructions and advice on how to get the most out of your splitter.


We also offer on-site technical support in case you need assistance with installation or maintenance. Our technicians can come to your location and help you with any issues you may be having.


If you ever have any questions about our Fiber Optic PLC Splitter products or services, please don't hesitate to contact us. We're here to help!


Packing and Shipping:

Fiber Optic PLC Splitter Packaging and Shipping:

  • Carefully package each PLC splitter in bubble wrap to ensure that it is not damaged during shipping.
  • Put each bubble wrapped PLC splitter in a box or padded envelope.
  • If shipping multiple PLC splitters, use a larger box with multiple compartments or multiple boxes to separate each splitter.
  • Label each box with the contents and the destination address.
  • Ship the package through a reliable shipping carrier.


Q1: What is Fiber Optic PLC Splitter?
A1: Fiber Optic PLC Splitter, made by Takfly/OEM, is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability and wide operating wavelength range.
Q2: What is the model number for Fiber Optic PLC Splitter?
A2: The model number for Fiber Optic PLC Splitter is PLC Splitter.
Q3: Where is Fiber Optic PLC Splitter made?
A3: Fiber Optic PLC Splitter is made in Shenzhen, China.
Q4: What are the features of Fiber Optic PLC Splitter?
A4: Fiber Optic PLC Splitter features small size, high reliability and wide operating wavelength range.
Q5: What is the brand of Fiber Optic PLC Splitter?
A5: The brand of Fiber Optic PLC Splitter is Takfly/OEM.
