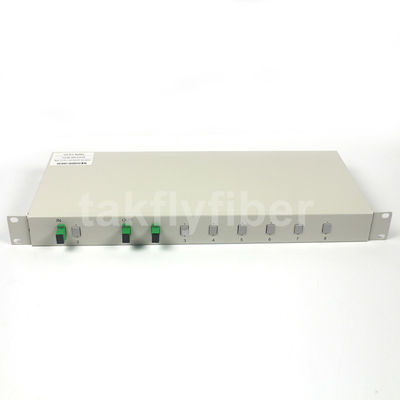

GPON 2x32 Rack Mount PLC Splitter Single Mode G657A SCAPC For FTTX CATV
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | DF/Takfly/Neutral |
| Certification: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Model Number: | TK-PLC-2x32-SA-RM |
Payment & Shipping Terms:
| Minimum Order Quantity: | 30 |
|---|---|
| Price: | US$0.01~US$55.99/PC |
| Packaging Details: | Export Standard packing |
| Delivery Time: | 5-7 Working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 5000PCS/Week |
|
Detail Information |
|||
| Product Name: | GPON 2x32 Rack Mount PLC Splitter | Fiber Type: | G.657A |
|---|---|---|---|
| Connector Type: | SC/APC | Cable Diameter: | 2.0mm |
| Insertion Loss: | ≤17.2dB Without Connector | Packing Size: | 1U 19Inch |
| Max. Uniformity: | 2.0dB | Operating Temperature: | -40 ~ +85 |
| Storage Temperature: | -40 ~ +85 | Application: | FTTX, CATV |
| High Light: | GPON Rack Mount PLC Splitter,FTTX 2x32 fiber splitter,CATV 2x32 fiber splitter |
||
Product Description
Passive 2x32 Rack Mount PLC Splitter , Single Mode G657A , SCAPC , For FTTX
Fiber Optic PLC Splitter Description
Takfly passive 2x32 Rack Mount PLC Splitter is a single-mode PLC splitter that can divide two optical input into multiple optical outputs.
The splitter provides reliable features such as such as Low Insertion Loss, Low PDL, High Return Loss, and Wide Wavelength Range from 1260nm to 1650nm. The unit also supports Wide Temperature Ranges from -40 to 85°C.
Fiber Optic PLC Splitter Applications
- Fiber to The Home (FTTH)
- Passive optical networks (PON)
- Local Area Networks (LAN)
- Cable Television (CATV)
- Test Equipment
- FTTX Systems
- PON Networks
- CATV Links
- Optical Signal Distribution
Fiber Optic PLC SplitterSpecification
| Item | Parameter | |||||
| Operating Wavelength(nm) | 1260 ~ 1650 | |||||
| Type(1*N) | 1*2 | 1*4 | 1*8 | 1*16 | 1*32 | 1*64 |
| Max.Insertion Loss (dB) | 3.9 | 7.2 | 10.3 | 13.5 | 16.8 | 20.3 |
| Max.Uniformity(dB) | 0.8 | 0.8 | 0.8 | 1.0 | 1.5 | 2.0 |
| Min.Return Loss(dB) | 55 | |||||
| Max.PDL(dB) | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 |
| Type(2*N) | 2*2 | 2*4 | 2*8 | 2*16 | 2*32 | 2*64 |
| Max.Insertion Loss(dB) | 4.2 | 7.5 | 10.6 | 13.9 | 17.2 | 20.8 |
| Max.Uniformity(dB) | 0.8 | 1.0 | 1.2 | 1.5 | 1.8 | 2.0 |
| Min.Return Loss(dB) | 55 | |||||
| Max.PDL(dB) | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 |
| Fiber Type | ITU-T G657A1 , G657A2 and G.652D | |||||
| Max.Temperature Stability(dB) | 0.5( Typical 0.3 ) | |||||
| Operating Temperature(℃) | -40 ~ +85 | |||||
| Storage Temperature(℃) | -40 ~ +85 | |||||
All measurement are made at room temperature, and connectors not included
Fiber Optic PLC Splitter Packing Dimension
| Package type | Unit(mm) | 1*2 | 1*4 | 1*8 | 1*16 | 1*32 | 1*64 |
| Basic Packagin Metel box | L×W×H | 40*4*4 | 40*4*4 | 40*4*4 | 50*7*4 | 60*7*4 | 60*12*4 |
| Mini Module Packagin Metel box | 60*7*4 | 60*7*4 | 60*7*4 | 60*12*4 | 80*20*6 | 100*40*6 | |
| Module Packagin Plastic box | 100*80*10 | 100*80*10 | 100*80*10 | 120*80*18 | 120*80*18 | 140*115*18 |
| Package type | Unit(mm) | 2*2 | 2*4 | 2*8 | 2*16 | 2*32 | 2*64 |
| Basic Packagin Metel box | L×W×H | 60*7*4 | 60*7*4 | 60*7*4 | 60*7*4 | 80*20*6 | 80*20*6 |
| Mini Module Packagin Metel box | 60*7*4 | 60*7*4 | 60*7*4 | 80*12*4 | 80*20*6 | 100*40*6 | |
| Module Packagin Plastic box | 100*80*10 | 100*80*10 | 100*80*10 | 120*80*18 | 120*80*18 | 140*115*18 |
Advantages Of Fiber Optic Splitter
1. Adopt high strength stainless steel, pass salt spray test
2. Ferrule core is less than 0.2um
3. Adopt 100% new raw material, ROHS compliance
4. Low Insertion loss
5. Low PDL Compact Design
6. Good channel-to-channel uniformity
7. Wide Operating Wavelength: from 1260nm to 1650nm
8. Wide Operating Temperature: from -40℃ to 85℃
