SC Connector 1x16 PLC Splitter Single Mode Blockless 0.9mm Cable
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | DF/Takfly/Neutral |
| Certification: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Model Number: | TK-PLC-1x16-SA-1M |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 |
|---|---|
| Price: | US$0.01~US$8.99/PC |
| Packaging Details: | Export Standard packing |
| Delivery Time: | 5-7 Working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 5000PCS/Week |
|
Detail Information |
|||
| Product Name: | PLC Splitter 1×16 | Fiber Type: | G.657A |
|---|---|---|---|
| Wavelength: | 1260 ~ 1650nm | Cable Diameter: | 0.9mm |
| Insertion Loss: | ≤13.5dB Without Connector | Return Loss: | ≥55dB |
| Cable Length: | 1M, 1.5M, Customized | Packing Size: | 60*12*4mm |
| Max. Uniformity: | 0.8dB | Application: | FTTH FTTB FTTX PON CATV |
| High Light: | SC Connector 1x16 PLC Splitter,Single Mode 1x16 PLC Splitter,0.9mm Fiber Optic PLC Splitter |
||
Product Description
PLC Splitter 1×16 Single Mode Blockless 0.9mm Fiber Cable with SC Connector
Fiber Optic PLC Splitter Description
Takfly offers a variety of mini steel, box ,cassette type , Rack Mount type splitter modules and products.

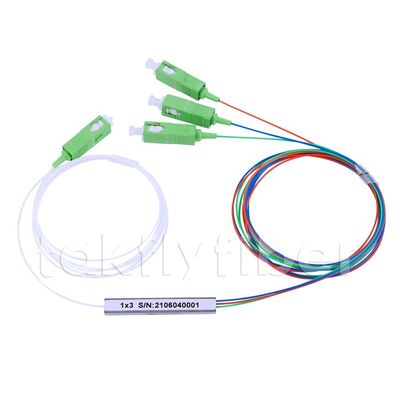

This PLC Splitter Module is a mini steel tube with ruggedized fiber jackets of 0.9mm with SC/APC Connector. Customized designs are also available for customer needs, call or e-mail us about anything you need that you don't see here.
Fiber Optic PLC Splitter Feature
● Broadband Operation Wavelength
● Low Insertion loss
● Low PDL
● Compact Design
● Good channel-to-channel uniformity
● High Reliability and Stability
● Good uniformity and low insertion loss
● Excellent Environmental Stability
● High Reliability and Stability
Fiber Optic PLC Splitter Applications
- Fiber to The Home (FTTH)
- Passive optical networks (PON)
- Local Area Networks (LAN)
- Cable Television (CATV)
- Test Equipment
- FTTX Systems
- PON Networks
- CATV Links
- Optical Signal Distribution
Fiber Optic PLC SplitterSpecification
| Item | Parameter | |||||
| Operating Wavelength(nm) | 1260 ~ 1650 | |||||
| Type(1*N) | 1*2 | 1*4 | 1*8 | 1*16 | 1*32 | 1*64 |
| Max.Insertion Loss (dB) | 3.9 | 7.2 | 10.3 | 13.5 | 16.8 | 20.3 |
| Max.Uniformity(dB) | 0.8 | 0.8 | 0.8 | 1.0 | 1.5 | 2.0 |
| Min.Return Loss(dB) | 55 | |||||
| Max.PDL(dB) | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 |
| Type(2*N) | 2*2 | 2*4 | 2*8 | 2*16 | 2*32 | 2*64 |
| Max.Insertion Loss(dB) | 4.2 | 7.5 | 10.6 | 13.9 | 17.2 | 20.8 |
| Max.Uniformity(dB) | 0.8 | 1.0 | 1.2 | 1.5 | 1.8 | 2.0 |
| Min.Return Loss(dB) | 55 | |||||
| Max.PDL(dB) | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 |
| Fiber Type | ITU-T G657A1 , G657A2 and G.652D | |||||
| Max.Temperature Stability(dB) | 0.5( Typical 0.3 ) | |||||
| Operating Temperature(℃) | -40 ~ +85 | |||||
| Storage Temperature(℃) | -40 ~ +85 | |||||
All measurement are made at room temperature, and connectors not included
Fiber Optic PLC Splitter Packing Dimension
| Package type | Unit(mm) | 1*2 | 1*4 | 1*8 | 1*16 | 1*32 | 1*64 |
| Basic Packagin Metel box | L×W×H | 40*4*4 | 40*4*4 | 40*4*4 | 50*7*4 | 60*7*4 | 60*12*4 |
| Mini Module Packagin Metel box | 60*7*4 | 60*7*4 | 60*7*4 | 60*12*4 | 80*20*6 | 100*40*6 | |
| Module Packagin Plastic box | 100*80*10 | 100*80*10 | 100*80*10 | 120*80*18 | 120*80*18 | 140*115*18 |
| Package type | Unit(mm) | 2*2 | 2*4 | 2*8 | 2*16 | 2*32 | 2*64 |
| Basic Packagin Metel box | L×W×H | 60*7*4 | 60*7*4 | 60*7*4 | 60*7*4 | 80*20*6 | 80*20*6 |
| Mini Module Packagin Metel box | 60*7*4 | 60*7*4 | 60*7*4 | 80*12*4 | 80*20*6 | 100*40*6 | |
| Module Packagin Plastic box | 100*80*10 | 100*80*10 | 100*80*10 | 120*80*18 | 120*80*18 | 140*115*18 |
TAKFLY PLC Splitter Services:
- Order inquiry: Keep mobile phone opened 24 hours to gurantee the first reply to clients, 6 years of sales experience in optical fiber products can provide you with professional guidance, help you save cost.
- Order production: Follow up the production schedule closely to ensure timely delivery.
- Before shipment: Our QC would double check the order quantity,package and strength of cartons to avoid lost and damage
- After shipment: Keep tracking shipping status and reporting to clients
- Shipping Method: DHL,UPS,FEDEX,TNT,EMS,SEA,AIR etc.
FAQ
Q: Are you trading company or manufacturer?
A: We are original manufacturer. We can do OEM/ODM business.Our company mainly produces optical fiber box.
Q: How long is your delivery time?
A: Group buying delivery time: 30-60 days; General delivery time: 20 days.
Q: What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery.
Q: What is the warranty ?
A: The free warranty is one year from the day of Commissioning qualified.If there is any fault for our products within the free warranty period, we will repair it and change the fault assembly for free.
