FTTB Fiber Optic PLC Splitter 1x32 SMF-28e SC APC 0.9mm Tube
Product Details:
Place of Origin: | Shenzhen, China |
Brand Name: | DF/Takfly/Neutral |
Certification: | CE/ROHS/REACH/ISO9001/ISO14001 |
Model Number: | TK-PLC-1x32-SA-1M |
Payment & Shipping Terms:
Minimum Order Quantity: | 100 |
---|---|
Price: | US$0.01~US$17.59/PC |
Packaging Details: | Export Standard packing |
Delivery Time: | 5-7 Working days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 5000PCS/Week |
Detail Information |
|||
Product Name: | 1x32 Fiber Optic PLC Splitter | Fiber Type: | G.657A |
---|---|---|---|
Connector Type: | SC/APC | Wavelength: | 1260 ~ 1650nm |
Cable Diameter: | 0.9mm | Insertion Loss: | ≤16.8dB Without Connector |
Return Loss: | ≥55dB | Cable Length: | 1M, 1.5M, Customized |
Packing Size: | 80*20*6mm | Max. Uniformity: | 1.5dB |
Operating Temperature: | -40 ~ +85 | Storage Temperature: | -40 ~ +85 |
Application: | FTTH FTTB FTTX PON CATV | ||
High Light: | FTTB Fiber Optic PLC Splitter,Fiber Optic PLC Splitter 1x32,0.9mm Tube Optical Plc Splitter |
Product Description

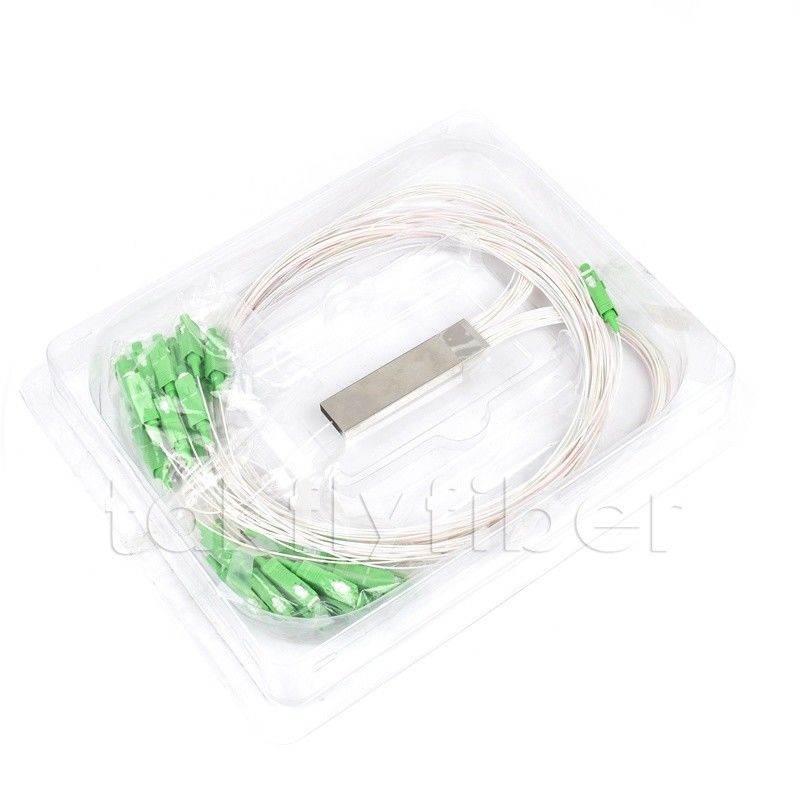

1x32 Fiber Optic PLC Splitter SMF-28e fiber with 0.9mm Mini Steel Tube , SC/APC
Fiber Optic PLC Splitter Description
Takfly's high quality 1x32 Fiber Optic PLC Splitter SMF-28e fiber with 0.9mm Mini Steel Tube and SC/APC connector, it is widely used in FTTH/FTTX/GPON/EPON application.
Except 0.9mm mini steel tube package, Takfly also offers 250μm bare fiber mini steel tube, 2.0/3.0mm ABS Box, Termination Box and Rack Mount Packages for our Fiber Optic PLC Splitter.
Unconnectorized PLC splitters come with no connectors for easy splicing or connectorization.
Connectorized PLC Splitters are available with your choice of Fiber Optic Connectors: LC/UPC, LC/APC, SC/UPC, SC/APC, FC/UPC, FC/APC, and ST/UPC.
Fiber Optic PLC Splitter Feature
● Broadband Operation Wavelength
● Low Insertion loss
● Low PDL
● Compact Design
● Good channel-to-channel uniformity
● High Reliability and Stability
Fiber Optic PLC Splitter Applications
● Telecommunication sector
● PON Syster
● FTTH
● CATV
● Video Transmission
Fiber Optic PLC SplitterSpecification
Item | Parameter | |||||
Operating Wavelength(nm) | 1260 ~ 1650 | |||||
Type(1*N) | 1*2 | 1*4 | 1*8 | 1*16 | 1*32 | 1*64 |
Max.Insertion Loss (dB) | 3.9 | 7.2 | 10.3 | 13.5 | 16.8 | 20.3 |
Max.Uniformity(dB) | 0.8 | 0.8 | 0.8 | 1.0 | 1.5 | 2.0 |
Min.Return Loss(dB) | 55 | |||||
Max.PDL(dB) | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 |
Type(2*N) | 2*2 | 2*4 | 2*8 | 2*16 | 2*32 | 2*64 |
Max.Insertion Loss(dB) | 4.2 | 7.5 | 10.6 | 13.9 | 17.2 | 20.8 |
Max.Uniformity(dB) | 0.8 | 1.0 | 1.2 | 1.5 | 1.8 | 2.0 |
Min.Return Loss(dB) | 55 | |||||
Max.PDL(dB) | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 |
Fiber Type | ITU-T G657A1 , G657A2 and G.652D | |||||
Max.Temperature Stability(dB) | 0.5( Typical 0.3 ) | |||||
Operating Temperature(℃) | -40 ~ +85 | |||||
Storage Temperature(℃) | -40 ~ +85 |
All measurement are made at room temperature, and connectors not included
Fiber Optic PLC Splitter Packing Dimension
Package type | Unit(mm) | 1*2 | 1*4 | 1*8 | 1*16 | 1*32 | 1*64 |
Basic Packagin Metel box | L×W×H | 40*4*4 | 40*4*4 | 40*4*4 | 50*7*4 | 60*7*4 | 60*12*4 |
Mini Module Packagin Metel box | 60*7*4 | 60*7*4 | 60*7*4 | 60*12*4 | 80*20*6 | 100*40*6 | |
Module Packagin Plastic box | 100*80*10 | 100*80*10 | 100*80*10 | 120*80*18 | 120*80*18 | 140*115*18 |
Package type | Unit(mm) | 2*2 | 2*4 | 2*8 | 2*16 | 2*32 | 2*64 |
Basic Packagin Metel box | L×W×H | 60*7*4 | 60*7*4 | 60*7*4 | 60*7*4 | 80*20*6 | 80*20*6 |
Mini Module Packagin Metel box | 60*7*4 | 60*7*4 | 60*7*4 | 80*12*4 | 80*20*6 | 100*40*6 | |
Module Packagin Plastic box | 100*80*10 | 100*80*10 | 100*80*10 | 120*80*18 | 120*80*18 | 140*115*18 |
TAKFLY PLC Splitter Services:
- Order inquiry: Keep mobile phone opened 24 hours to gurantee the first reply to clients, 6 years of sales experience in optical fiber products can provide you with professional guidance, help you save cost.
- Order production: Follow up the production schedule closely to ensure timely delivery.
- Before shipment: Our QC would double check the order quantity,package and strength of cartons to avoid lost and damage
- After shipment: Keep tracking shipping status and reporting to clients
- Shipping Method: DHL,UPS,FEDEX,TNT,EMS,SEA,AIR etc.
With 21 years manufacturing experince in Fiber Optic Products, Takfly Group have a wide of PLC Splitters for your option, such as 250μm bare fiber PLC Splitter, 900μm mini steel tube PLC Splitter, ABS Box PLC Splitter, LGX Cassette type PLC Splitter, Rack Mount PLC Splitter, ect.
Takfly PLC Splitters have below advantages:
1. CE, ROHS, ISO9001, ISO14001 certified.
2. High performance, low insertion loss.
3. Branch Numbers from 1x2, 1x4, 1x8, 1x16, ....1x128, and 2x2, 2x4, 2x8, 2x16, 2x32, ......2x128, also with Non-standard 1x3 1x6 1x12 for options.
4. OEM Brand is availble.
If you’re dealing with FTTX, FTTH projects, welcome to inquire us for more details.
