2.0mm Fiber Optic PLC Splitter ABS PLC Splitter Module Box Optical Splitter 1X8
Product Details:
| Place of Origin: | China |
| Brand Name: | Takfly/OEM |
| Certification: | CE, ISO, RoHS, CPR, FCC |
| Model Number: | TK-PLC-ABS1X8 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Blister box+Carton |
| Delivery Time: | 5-10 working days |
| Payment Terms: | T/T, L/C, Western Union, MoneyGram, Paypal, etc. |
| Supply Ability: | 10000PCS/Week |
|
Detail Information |
|||
| Type: | 1x8 In 2.0mm | Connector: | SC |
|---|---|---|---|
| Operating Wavelength: | Wavelength 1260 To 1650nm | Uniformity: | Not More Than 0.8dB |
| Insertion Loss: | 10.3dB Below | Return Loss: | 55dB And More |
| Fiber Type: | G657A1 SM | Temperature Stability: | 0.3dB To 0.5dB |
| High Light: | 2.0mm Fiber Optic PLC Splitter,1X8 Optical Splitter,1X8 Fiber Optic PLC Splitter |
||
Product Description

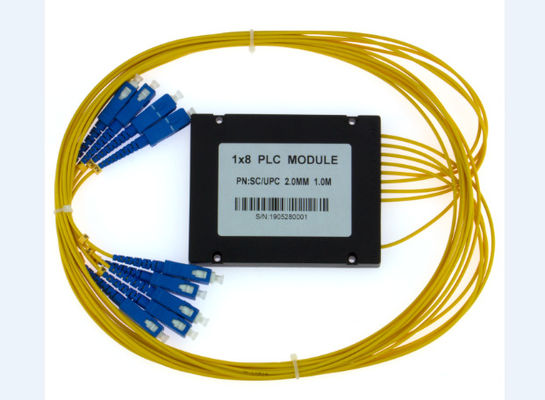

Fiber Optic PLC Splitter 2.0mm ABS PLC Splitter Module Box Optical Splitter 1X8
Fiber Optic PLC Splitter Description
PLC Splitter (Planar lightwave circuit splitter) is a type of optical power management device that is fabricated using silica optical waveguide technology. ABS 1X8 SC PLC Splitter is a type of PLC Splitter singlemode G657A1 with fiber cable 2.0mm diameter. It can also be connected with other types of connectors, like LC, ST, FC, etc.
Fiber Optic PLC Splitter Feature
Fiber Optic PLC Splitter is in high and good channel to channel uniformity, it has very low insertion loss, low PDL, broadband operation wavelength. The Fiber Optic PLC Splitter we manufactured are in high reliability and stability with compact with small size, optinal input & output.
Fiber Optic PLC Splitter Applications
- CATV systems
- Passive Optical Networks (PON)
- Local Area Networks, and Metro Networks (LANS)
-
Wide Area Networks (WANS)
-
Test equipment
-
Data processing network
-
FTTX
- Telecom
- Other applictaions in fiber optic systems
Fiber Optic PLC Splitter Specification
| Item | Parameter | |||||
| Operating Wavelength(nm) | 1260 ~ 1650 | |||||
| Type(1*N) | 1*2 | 1*4 | 1*8 | 1*16 | 1*32 | 1*64 |
| Max.Insertion Loss(dB) | 3.9 | 7.2 | 10.3 | 13.5 | 16.8 | 20.3 |
| Max.Uniformity(dB) | 0.8 | 0.8 | 0.8 | 1.0 | 1.5 | 2.0 |
| Min.Return Loss(dB) | 55 | |||||
| Max.PDL(dB) | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 |
| Type(2*N) | 2*2 | 2*4 | 2*8 | 2*16 | 2*32 | 2*64 |
| Max.Insertion Loss(dB) | 4.2 | 7.5 | 10.6 | 13.9 | 17.2 | 20.8 |
| Max.Uniformity(dB) | 0.8 | 1.0 | 1.2 | 1.5 | 1.8 | 2.0 |
| Min.Return Loss(dB) | 55 | |||||
| Max.PDL(dB) | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 |
| Fiber Type | ITU-T G657A1 , G657A2 and G.652D | |||||
| Max.Temperature Stability (dB) | 0.5( Typical 0.3 ) | |||||
| Storage Temperature(℃) | -40 ~ +85 | |||||
| Storage Temperature(℃) | -40 ~ +85 | |||||
Fiber Optic PLC Splitter PackagingType and Dimension
| Package type | Unit(mm) | 1*2 | 1*4 | 1*8 | 1*16 | 1*32 | 1*64 |
| Basic Packaging Metel box | LxWxH | 40*4*4 | 40*4*4 | 40*4*4 | 60*7*4 | 60*7*4 | 60*12*4 |
| Mini Module Metal Box | LxWxH | 60*7*4 | 60*7*4 | 60*7*4 | 60*12*4 | 80*20*6 | 100*40*6 |
| Module Plastic Box | LxWxH |
100*80*10 /90*20*10 |
100*80*10 | 100*80*10 | 120*80*18 | 120*80*18 | 140*115*18 |
| Package type | Unit(mm) | 2*2 | 2*4 | 2*8 | 2*16 | 2*32 | 2*64 |
| Basic Packaging Metel box | LxWxH | 60*7*4 | 60*7*4 | 60*7*4 | 60*7*4 | 80*20*6 | 80*20*6 |
| Mini Module Metal Box | LxWxH | 60*7*4 | 60*7*4 | 60*7*4 | 80*12*4 | 80*20*6 | 100*40*6 |
| Module Plastic Box | LxWxH |
100*80*10 |
100*80*10 | 100*80*10 | 120*80*18 | 120*80*18 | 140*115*18 |
