Bare Fiber 250um Micro PLC Splitter SM G657A1 with 0.25mm Fiber Cable

Bare Fiber 250um Micro PLC Splitter SM G657A1 with 0.25mm Fiber Cable

Product Details:

Place of Origin: China
Brand Name: Takfly/OEM
Certification: CE, ISO, RoHS, CPR, FCC
Model Number: TK-PLC250

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable

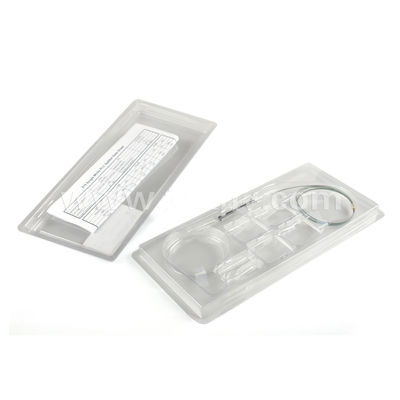

Packaging Details: Blister box+Carton
Delivery Time: 5-10 working days
Payment Terms: T/T, L/C, Western Union, MoneyGram, Paypal, etc.
Supply Ability: 10000PCS/Week
Get Best Price Contact Now

Detail Information

Type: 1x8 With 250um Connector: Without Connector
Operating Wavelength: From 1260 - 1650nm Uniformity: Less Than 0.8dB
Insertion Loss: Less Than 10.3dB Return Loss: Higher Than 55dB
Fiber Type: Singlemode G657A1 Temperature Stability: Less Than 0.5dB

Product Description

Bare Fiber 250um Micro PLC Splitter SM G657A1 with 0.25mm Fiber Cable



Fiber Optic PLC Splitter Description

PLC Splitter is based on planar Light wave circuit technology and precision aligning process, can divide a single / dual optical input(s) into multiple optical outputs uniformly and is denoted 1xN or 2xN. PLC Splitter is applied in FTTX deployments, PON networks, CATV links and optical signal distribution currently. Takfly's PLC Splitter offers superior optical performance, high stability and high reliability, meet various application requirements in different environments.

Fiber Optic PLC Splitter Feature



  • Low Insertion Loss
  • Low Polarization Dependent Loss
  • Wide Operation Wavelength
  • Wide Operation Temperature
  • High Stability and Reliability

Fiber Optic PLC Splitter we manufactured of low insertion loss, broadband operation wavelength, compact with small size, high reliability and stability, optinal input & output, high and good channel-to-channel uniformity, low PDL. We have the ability to scale as much as you need and can adjust our processes according to your specific requirements.



Fiber Optic PLC Splitter Applications

  • Access Network
  • Telecom
  • CATV systems
  • Active device termination
  • Local Area Networks, and Metro Networks (LANS)
  • Wide Area Networks (WANS)

  • Test equipment

  • Data processing network

  • FTTX

  • Other applictaions in fiber optic systems

Projects related with FTTH, Monitoring, CATV System, Network Protection, Access/PON Distribution can all be applicated.

Widely used in FTTH, FTTC, FTTB, Passive Optical Networks, CATV networks and data communication, fiber optic equioment and systems, and benefit to the Telecommunication sector, PON Syster, CATV, Video Transmission, and more other field related.



Fiber Optic PLC Splitter Specification

Bare fiber mirco 250um is just one of the types in Fiber Optic PLC Splitter, it can be available also with connectors and without connectors accoring to different requirements.



Item Parameter
Operating Wavelength(nm) 1260 ~ 1650
Type(1*N) 1*2 1*4 1*8 1*16 1*32 1*64
Max.Insertion Loss(dB) 3.9 7.2 10.3 13.5 16.8 20.3
Max.Uniformity(dB) 0.8 0.8 0.8 1.0 1.5 2.0
Min.Return Loss(dB) 55
Max.PDL(dB) 0.2 0.3 0.3 0.3 0.3 0.5
Type(2*N) 2*2 2*4 2*8 2*16 2*32 2*64
Max.Insertion Loss(dB) 4.2 7.5 10.6 13.9 17.2 20.8
Max.Uniformity(dB) 0.8 1.0 1.2 1.5 1.8 2.0
Min.Return Loss(dB) 55
Max.PDL(dB) 0.2 0.3 0.3 0.3 0.3 0.5
Fiber Type ITU-T G657A1 , G657A2 and G.652D
Max.Temperature Stability (dB) 0.5( Typical 0.3 )
Storage Temperature(℃) -40 ~ +85
Storage Temperature(℃) -40 ~ +85





Fiber Optic PLC Splitter PackagingType and Dimension

Package type Unit(mm) 1*2 1*4 1*8 1*16 1*32 1*64
Basic Packaging Metel box LxWxH 40*4*4 40*4*4 40*4*4 60*7*4 60*7*4 60*12*4
Mini Module Metal Box LxWxH 60*7*4 60*7*4 60*7*4 60*12*4 80*20*6 100*40*6
Module Plastic Box LxWxH

100*80*10

/90*20*10

100*80*10 100*80*10 120*80*18 120*80*18 140*115*18





Package type Unit(mm) 2*2 2*4 2*8 2*16 2*32 2*64
Basic Packaging Metel box LxWxH 60*7*4 60*7*4 60*7*4 60*7*4 80*20*6 80*20*6
Mini Module Metal Box LxWxH 60*7*4 60*7*4 60*7*4 80*12*4 80*20*6 100*40*6
Module Plastic Box LxWxH

100*80*10

100*80*10 100*80*10 120*80*18 120*80*18 140*115*18





Bare Fiber 250um Micro PLC Splitter SM G657A1 with 0.25mm Fiber Cable 0

Bare Fiber 250um Micro PLC Splitter SM G657A1 with 0.25mm Fiber Cable 1



Company Information
Having been specialized in fiber optic communications for more than 21 years, Takfly has already gained very good reputation from the customers all over the world. Takfly mainly supplying fiber cable, adapter, attenuator, connector, coupler, splitter, termination box, ODF, fiber instruments, media conceiver, switch, optical module, CWDM/DWDM, etc. Takfly's products have passed the management verification: ISO14001. Our goods have passed RoHS, CE, ISO9001, FCC, etc.


The products we sell is manufactured by our own factories. Our main aim is to supply high quality goods to our customers. Therefore, Takfly has imported foreign advanced production equipment, mainly made in German, Japan. The skilled technicians and professional sales team are available. Standard production management system has been built. Any requirements and inquiries will be processed with 24 hours. Strict test is a must before delivery. Apart from these, we have steady transport service. So, we can provide you the optimal transportation.
No complaints is one of our aims. We believe that our products can help you win good reputation and market share.
We sincerely hope to have the chance to develop us together, and establish a long-term business relationship with you in the future.

Any interest or any inquiry, pls feel free to contact at your any time.

We are looking forward to hearing from you! Greatest support are always here for you!



FAQ

Q1: How can i get your catalogue and price list?

A1: Please let us know your email or contacts from website directly for our catalogue and price list

Q2: Can I negotiate the prices?

A2: Yes, we may consider discounts for multiple container load of mixed goods

Q3: How much will the shipping charges be?

A3: It depends on the size of your shipment and the method of shipping. We will offer the charge to you as you requested

Q4: Can I visit you?

A4: Sure, our factory is in Shenzhen, China. Please contact us to make an appointment

Q5: What if there is quality problem when we get the goods?

A5: If there is quanlity problem when you un-package the goods, you can take pictures for our reference, our QC department will check the problem and give best solutions to you, Further-more we will also take action to improve the quality in future

Q6. What is your terms of packing?

A6: Generally, we pack our goods in blister box and cartons, and can also accept customize packing by customers

Q7. What is your terms of payment?

A7: T/T 30% as deposit, and 70% before delivery. We"ll show you the photos of the products and packages before you pay the balance

Q8. What is your terms of delivery?

A8: EXW, FOB, CFR, CIF, DDU

Q9. How about your delivery time?

A9: Generally, it will take 5-7 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order

Q10. Can you produce according to the samples?

A10: Yes, we can produce by your samples or technical drawings
