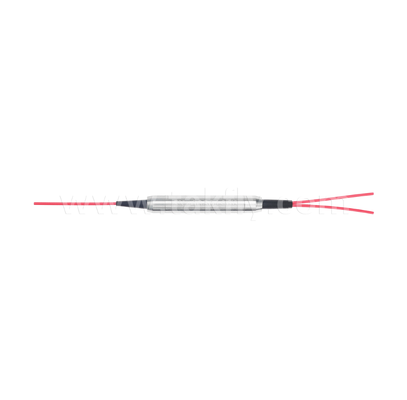

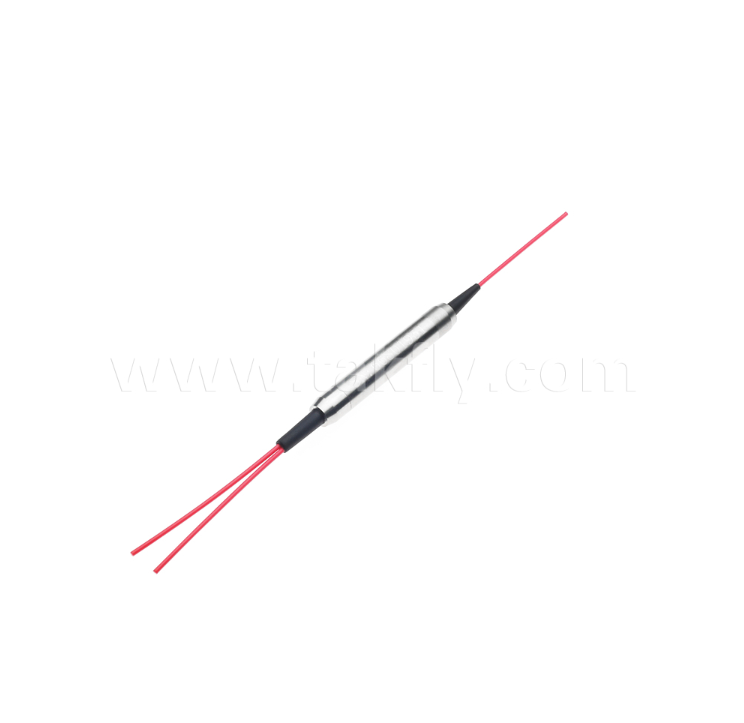

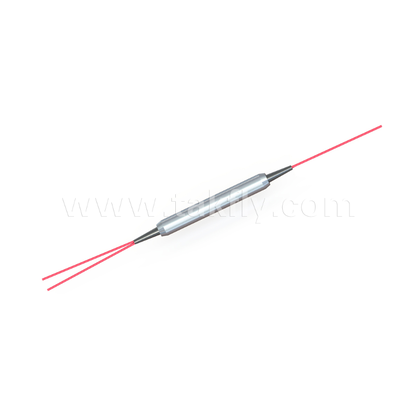

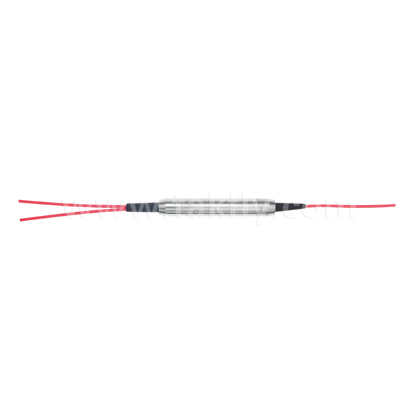

PM Isolator & WDM Hybrid – Integrated Isolator + WDM Coupler, 1480/1550nm & 980/1550nm
Product Details:
| Place of Origin: | ShenZhen & ZhongShan China |
| Brand Name: | DF/OEM/Nuetral |
| Certification: | CE/ROHS/CPR EN50575/ISO9001 /ISO14001 |
| Model Number: | PM Isolator & WDM Hybri |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Can be negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 5-9 Works depend on the QTY |
| Payment Terms: | T/T,Paypal |
| Supply Ability: | 500PCS/Week |
|
Detail Information |
|||
| Highlight: | PM Isolator WDM Hybrid 1480/1550nm,Integrated Isolator WDM Coupler 980/1550nm,PM Hybrid Component High Power |
||
|---|---|---|---|
Product Description
The PM Isolator & WDM Hybrid integrates an optical isolator and a WDM optical coupler into one compact package. This integrated design is especially useful for doped optical fiber amplifier designs and related applications.
Two WDM coupler types are available: 1480nm/1550nm and 980nm/1550nm. The 1550nm signal first passes through the isolator and is then combined with the pump laser power at the WDM coupler. The previous stage of the optical circuit is protected by the optical isolation.
Single-stage and dual-stage isolation are available. This product reduces overall cost and simplifies system structure while providing improved performance and reliability.
- Low Insertion Loss – Ensures efficient signal transmission.
- High Return Loss – Minimizes back reflection.
- High Extinction Ratio – Maintains polarization state reliably.
- High Isolation – Protects previous optical circuit stages.
- High Stability and Reliability – Suitable for demanding applications.
- Compact Integrated Package – Saves space and simplifies system design.
- Single/Dual-Stage Isolation – Flexible options for different requirements.
- Doped optical fiber amplifiers (EDFA)
- Fiber lasers
- Optical communication systems
- Polarization-sensitive systems
- Test and measurement
26 years of manufacturing experience in fiber optic products.
More than 80 assembly workers with 6+ years of experience.
More than 10 R&D engineers.
16 sets of German imported injection machines and 16 production lines.
More than 30 sets of testing instruments, including OTDR, ILD, VFL, RL, IL, tension strength testers, crush resistance testers, power meter testers, and light checkers.
Custom logo and branding available.
| Stage | Inspection Method |
|---|---|
| Incoming inspection | Spot check of raw materials before production |
| In-process inspection | Full inspection at every individual process completion |
| Pre-packaging inspection | Full inspection of finished products before packing |
| Pre-shipping inspection | Spot check before shipping |
TAKFLY participates in leading industry exhibitions and events, including Source Electronics Exhibition, OFC, FOCC, ConnecAsia, NFTCOM, AFRICACOM, SMART ICT, Contelem, and China.
| Item | Details |
|---|---|
| Samples | 1–3 working days |
| Mass production orders | 3–7 working days |
| Packaging | Plastic bag, carton, and pallet options available according to your requirements |
