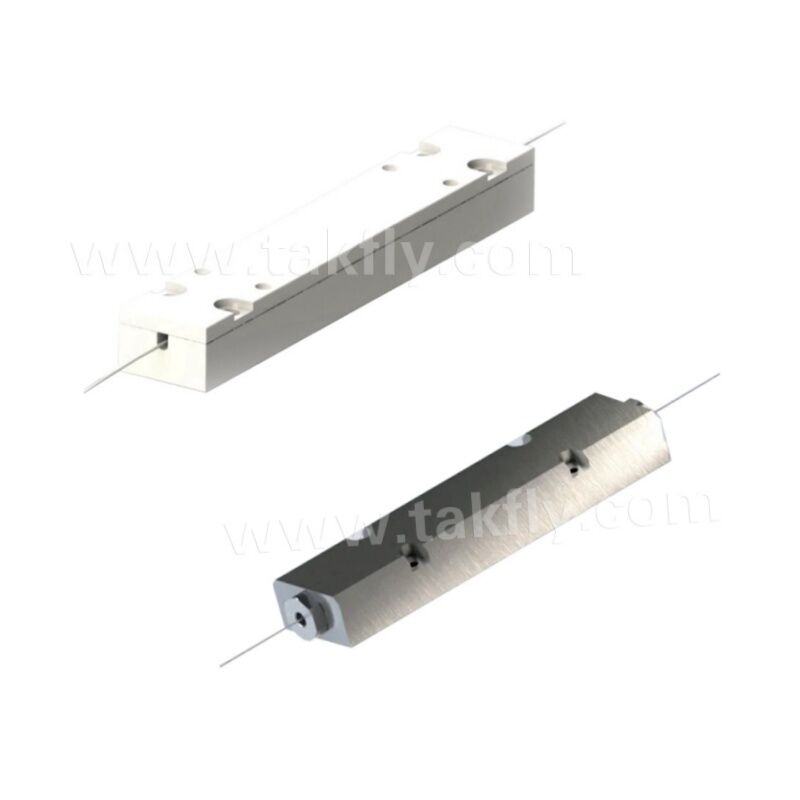

Polarization Maintaining Fiber Optic PM Mode Field Adapter for ICT AI Computing
Product Details:
| Place of Origin: | China |
| Brand Name: | OEM |
| Certification: | ISO, CE RoHS |
| Model Number: | DF-PM-MF Adapter |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | USD5-20/pc |
| Packaging Details: | Blister Box |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T,Paypal |
| Supply Ability: | 1000pcs per month |
|
Detail Information |
|||
| Customization: | Yes | ||
|---|---|---|---|
| Highlight: | Polarization maintaining fiber optic adapter,PM mode field adapter for ICT,Fiber optic adapter for AI computing |
||
Product Description
Polarization Maintaining Fiber Optic PM Mode Field Adapter for ICT AI Computing
PM Mode Field Adapter Overview
A mode field adapter is an optical device designed for expanding or contracting a mode in transverse spatial dimensions. These devices are essential for connecting fibers with different core diameters and numerical apertures (NA), making them ideal for high-power fiber lasers and fiber amplifiers.
TAKFLY's MFAs utilize advanced mode field optimization technology to deliver high transfer efficiency with minimal beam degradation.
Key Features
- High Transfer Efficiency
- High Power Handling Capability
- High Stability and Reliability
- Custom Configurations Available
Technical Specifications
| Parameters | Value |
|---|---|
| Port Configuration | 1x1 |
| Signal Wavelength | 1030~1080nm or 1450~1600nm |
| SMA Fiber | 6/125 | 10/125 | 10/125 | 6/125 | 20/250 |
| LMA Fiber | 10/125 | 20/125 | 25/250 | 20/400 | 30/250 |
| Signal IL for Forward Route | 0.3dB | 0.4dB | 0.5dB | 0.5dB | 0.2dB |
| Signal IL for Backward Route | 0.3dB | 0.5dB | 0.7dB | 0.7dB | 0.2dB |
| Total Handling Power | Specify |
| Polarization Extinction Ratio | 18dB (PM Fiber Type) |
| Return Loss | 45dB |
| Package Dimension | D1, D2, D3, D4, D5, D6, D7 |
| Operating Temperature | -5℃~+70℃ |
| Storage Temperature | -40℃~+85℃ |
Applications
- High Power Fiber Laser Systems
- Fiber Amplifier Systems
