Polarization Maintaining Fiber Optic PM DWDM Device for ICT AI Computing
Product Details:
| Place of Origin: | China |
| Brand Name: | OEM |
| Certification: | ISO, CE RoHS |
| Model Number: | DF-PM-DWDM Device |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | USD119-299/pc |
| Packaging Details: | Blister Box |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T,Paypal |
| Supply Ability: | 1000pcs per month |
|
Detail Information |
|||
| Customization: | Yes | ||
|---|---|---|---|
| Highlight: | Polarization Maintaining Fiber Optic PM DWDM,PM Fiber Optic Device for ICT,DWDM Fiber Optic for AI Computing |
||
Product Description

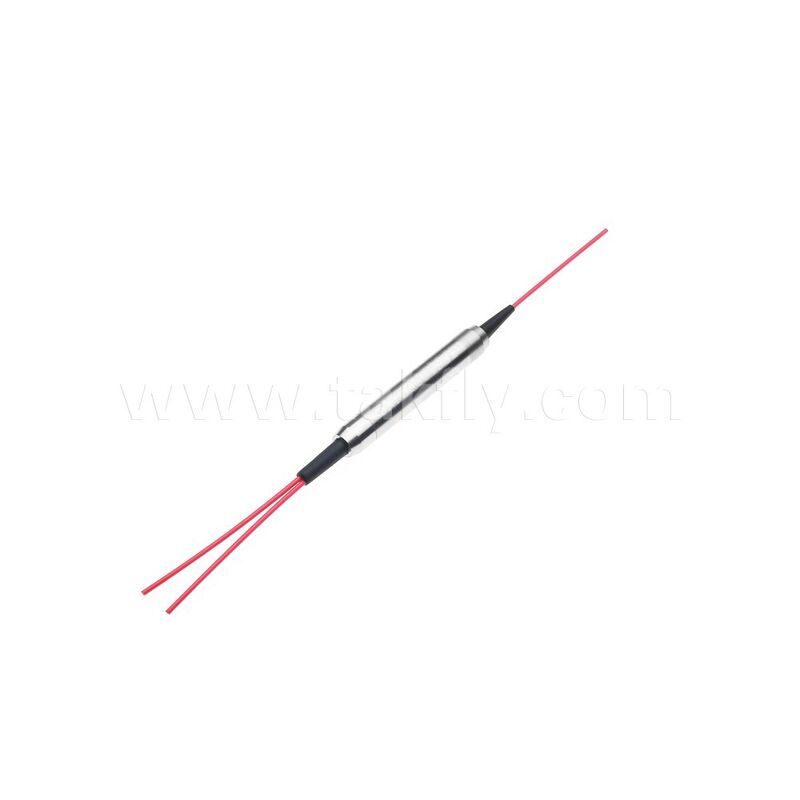

Polarization Maintaining Fiber Optic PM DWDM Device
PM DWDM Device Overview
The In-line Polarizer is engineered to transmit light with one specific polarization while effectively blocking the other polarization with a high extinction ratio. This device delivers low loss, high extinction ratio, and exceptional return loss performance. It can also convert unpolarized light into polarized light with superior extinction ratio characteristics, selectively passing light along either the slow or fast axis while blocking the orthogonal polarization.
Key Features
- Low Insertion Loss
- High Return Loss
- High Isolation
- High Stability and Reliability
Structure Diagram
Technical Specifications
| Parameters | Unit | Values |
|---|---|---|
| Channel Space | Ghz | 100 | 200 |
| Center Wavelength | nm | ITU Grid |
| Center Wavelength Accuracy | nm | ±0.05 | ±0.1 |
| Channel Pass band (@-0.5dB) | nm | 0.22 | 0.5 |
| Max. Insertion Loss of Transmission Channel | dB | 1.0 | 0.9 |
| Max. Insertion Loss of Reflection Channel | dB | 0.4 | 0.4 |
| Min. Transmission Isolation @Reflection Wavelength | dB | 30 | 30 |
| Min. Reflection Isolation @Transmission Wavelength | dB | 10 | 10 |
| Max. Channel Flatness | dB | 0.3 |
| Min. Extinction Ratio at 23℃ | dB | 18 |
| Max. Wavelength Thermal Stability | nm/℃ | 0.003 |
| Max. Insertion Loss Thermal Stability | dB/℃ | 0.005 |
| Min. Return Loss | dB | 50 |
| Max. Power Handling (CW) | mW | 500 |
| Fiber Type | - | PM Panda fiber |
| Operating Temperature | ℃ | 0~+70 |
| Storage Temperature | ℃ | -40~+85 |
For device with connector, IL is 0.3dB higher, RL is 5dB lower, and ER is 2dB lower. The default connector key is aligned to slow axis.
Applications
- DWDM module systems
- DWDM network infrastructure
- Gpon network deployments
- CATV broadcast systems
