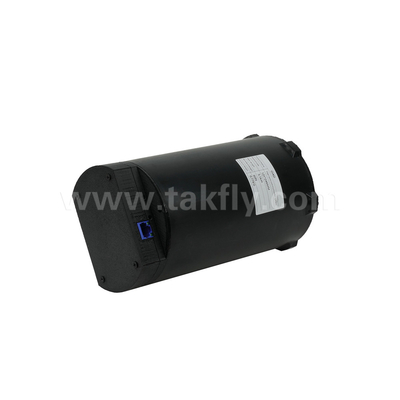

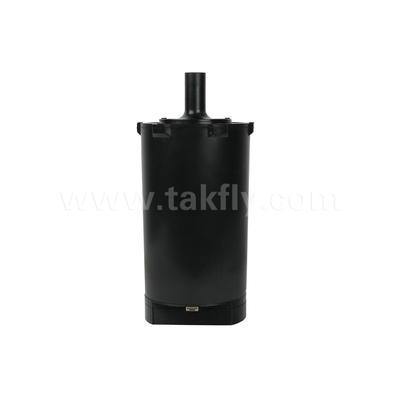

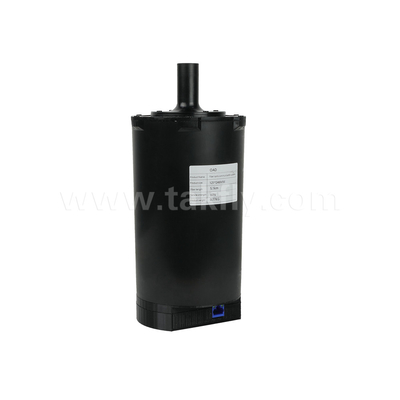

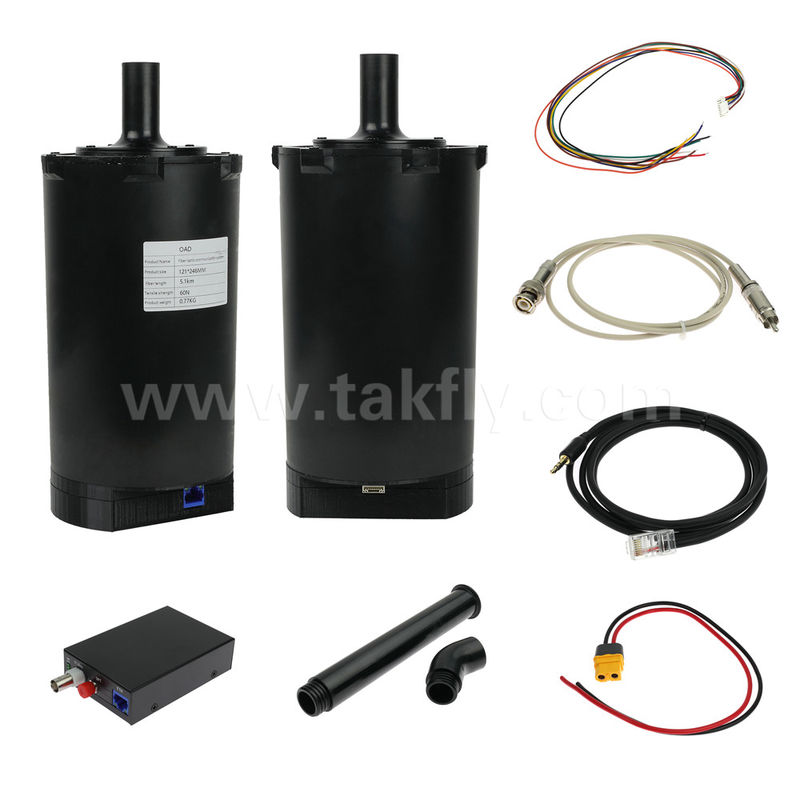

Anti-interference Long-distance Bare Fiber Release Box 5KM FPV Aerial Unmanned Aerial Vehicle
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | Takfly/OEM |
| Certification: | CE, ISO, RoHS, GS |
| Model Number: | MPO/MTP Patch cord |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | US $9.88-US $19.88/ Pcs |
| Packaging Details: | PP Bag Then in Carton |
| Delivery Time: | 3-7working day |
| Payment Terms: | L/C,T/T,Western Union,Paypal |
| Supply Ability: | 50000pcs/Month |
|
Detail Information |
|||
| Core: | Multicore | Connector A: | SC |
|---|---|---|---|
| Connector B: | MPO /MTP | Fiber Mode: | 50/125um |
| Cable Diameter: | 0.9/2.0/3.0 | Polish Type: | PC/APC |
| Return Loss: | MM/PC:20dB/SM/APC:60dB | Insertion Loss: | 0.35dB Max (0.15dB Typ.) |
| Outer Sheath Material: | PVC/LSZH | Bending Radius Static/Dynamic: | 10d/20d |
| HS Code: | 854470000 | Gender: | Male/Female |
| Highlight: | 5KM FPV bare fiber release box,Anti-interference bare fiber release box,long-distance bare fiber release box |
||
Product Description
Parameter
|
Model NO. |
TK-FC-0.26-5 |
Cable Length |
5000M |
||||||
|
Product Name |
Fiber Optic Box |
Fiber Type |
G657A2 |
||||||
|
Jacket Material |
Resin |
Unit weight |
80g/km |
||||||
|
Cable Diameter |
0.26mm ±0.1 |
Working Temperature |
(-40~+85)℃ |
||||||
|
Tight buffer color |
Invisible and transparent |
||||||||
|
Connector Type |
FC |
||||||||
|
Fiber Attenuation |
|||||||||
|
1310nm |
1550nm |
||||||||
|
Insertion Loss |
≤0.35 |
≤0.25 |
|||||||
|
Unit |
dB/km |
||||||||
|
WT |
0.329 |
0.185 |
|||||||
|

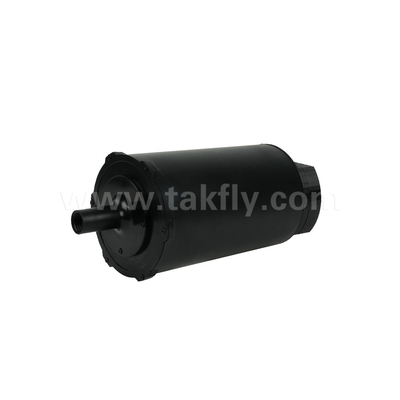

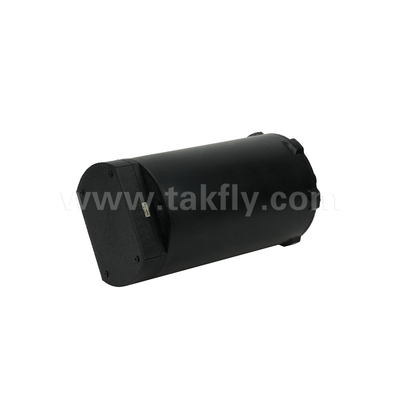

Box |
|||||||||
|
Material |
Size |
Fiber+Box Net Weight |
|||||||
|
ABS Black Color |
121*246 mm |
780g |
|||||||
|
Packing |
|||||||||
|
Single pit small |
LxWxH |
Weight (Without sky and ground terminals) |
|||||||
|
425*185*155mm |
0.3kg |
||||||||
|
Jiukeng Trumpet |
540*449*445mm |
1.15kg |
|||||||

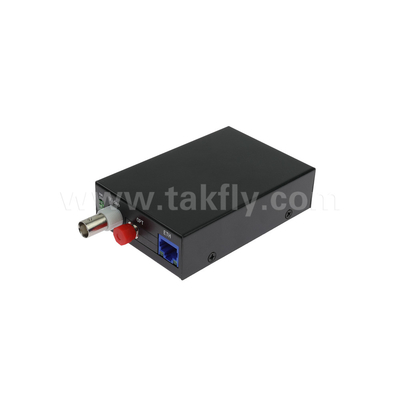

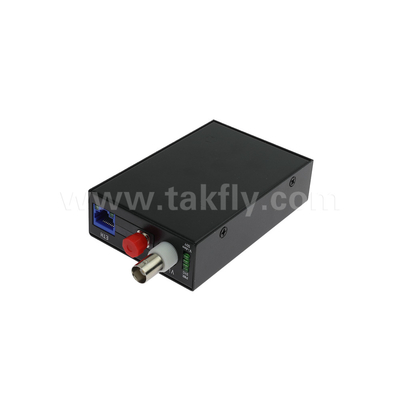

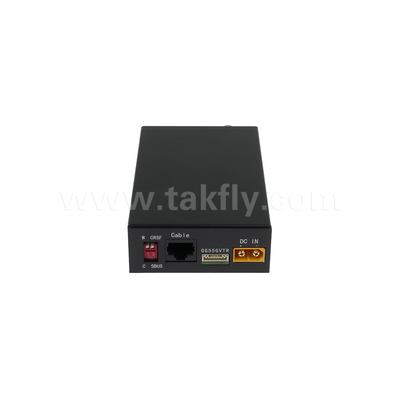

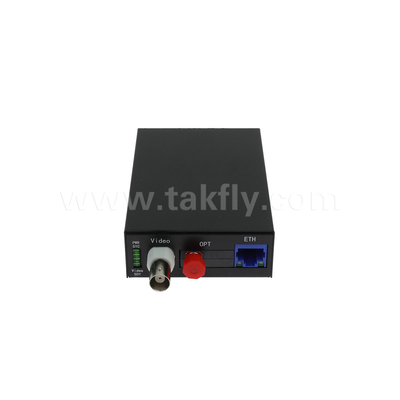

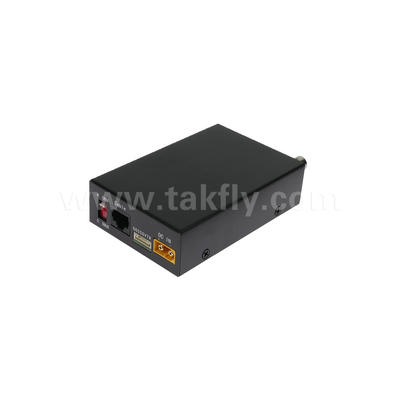

Optical Transceiver Specification
Parameter
|
Housing Material |
Iron |
Net Weight |
222g |
|
Size |
105*70*26mm |
||
|
Color |
Black |
||
|
Port |
FC/TTL/RJ45/Cable |
||
|
Connection Type |
Support wired/wireless connection |
||
Wired connection diagram
