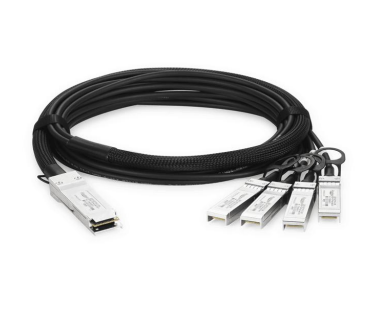

100Gbps QSFP28 To 4x 25G SFP28 Passive High Speed Cable | High Quality and Fiber Optical Network
Product Details:
| Place of Origin: | China, Shenzhen |
| Brand Name: | DF/OEM/Nuetral |
| Certification: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Model Number: | 100Gbps QSFP28 To 4x 25G SFP28 Passive High Speed Cable |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiable |
|---|---|
| Price: | negotiable denpend on QTY |
| Packaging Details: | Blister box+Carton |
| Delivery Time: | 5-9 working days depends on QTY |
| Payment Terms: | T/T,/Paypal,L/C |
| Supply Ability: | 1000PCS/Day |
|
Detail Information |
|||
| Product Name: | 100Gbps QSFP28 To 4x 25G SFP28 Passive High Speed Cable | High Quality And Fiber Optical Network | Supply Voltage: | 3.14-3.46V |
|---|---|---|---|
| Supply Current: | 300 MA | Input Differential Impedance: | 100 Ω |
| Single Ended Data Input Swing: | 180-700 MA | Data Input Swing Differentia: | 400-1800 MV |
| Transmit Disable Assert Time: | 10 Us | Differential Data Output Swing: | 300-850 MA |
| Operating Case Temperature: | 0 To +70°C | Warranty: | 1 Years, Lifetime Maintenance |
| Fiber Brand: | Corning, YOFC, OFS, Draka | ||
| Highlight: | 100Gbps QSFP28 passive high speed cable,QSFP28 to 4x SFP28 fiber optic cable,25G SFP28 fiber optical network cable |
||
Product Description
100Gbps QSFP28 to 4x 25G SFP28 Passive High Speed Cable
High performance breakout cable solution supporting 100G Ethernet, InfiniBand, fiber channel, PCIe, and SAS applications. This high-quality fiber optical network cable provides reliable connectivity for demanding data center environments.
Product Overview
100G QSFP28 passive copper direct-attach cables are suitable for very short distances and offer a highly cost-effective way to establish a 100-Gigabit link between QSFP28 ports of QSFP28 switches within racks and across adjacent racks.
These cables are designed for 100GbE and InfiniBand standards to maximize performance. The 100G QSFP28 cables meet emerging data center and high performance computing application needs for a high density cabling interconnect system capable of delivering an aggregate data bandwidth of 40Gb/s. This interconnect system is fully compliant with existing industry standard specifications including the QSFP MSA and IBTA (InfiniBand Trade Association).
The 100G QSFP28 cables support the bandwidth transmission requirements as defined by IEEE 802.3ba (100Gb/s) and Infiniband QDR (4x125 Gb/s per channel) specifications.
Applications
- 10G/40G/100G Sonet
- Infiniband SDR, DDR, QDR, FDR, EDR
- Switch connectivity
- Routers
- Data Center & Cloud infrastructure
Key Features
- Compliant with SFF-8636, SFF-8402 standards
- Compliant with Sonet IEEE802.3bj
- Operating case temperature: -40 to 85°C
- All-metal housing for superior EMI performance
- Precision process control for minimization of pair-to-pair skew
- AC coupling of PECL signals
- EEPROM for cable signature & system communications
- 30 AWG to 26 AWG cable sizes available
- RoHS compliant
Technical Specifications
Outline Drawing
Electrical Performance
Environmental Performance
Product Images
Why Choose TAKFLY?
- 26+ years of manufacturing experience in fiber optic products
- 450+ assembly workers with 3+ years of experience
- 10+ R&D Engineers dedicated to innovation
- 16 Germany-imported Injection Machines and production lines
- 30+ testing machines including OTDR, 3D, VFL, IL&RL test instruments
- Comprehensive testing equipment: tension strength testers, crush resistance testers, power meter testers, light checkers
- OEM branding accepted
- Global exhibition participation: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition
Quality Control Process
- Raw material spot checking before production
- Full inspection after every individual process
- Comprehensive half-done production checks
- Complete finished product inspection before packing
- Pre-shipping spot checks
Delivery Information
- Samples: 1-3 working days
- Mass Production Orders: 3-7 working days
- Packaging: Plastic bags, cartons, and pallets available per request
Frequently Asked Questions
How can I get your catalogue and price list?
Please provide your email or contact information through our website to receive our catalogue and price list.
Can I negotiate the prices?
Yes, we may consider discounts for multiple container loads of mixed goods.
How much will the shipping charges be?
Shipping charges depend on your shipment size and shipping method. We will provide charges upon request.
Can I visit you?
Certainly! Our factory is located in Shenzhen, China. Please contact us to schedule an appointment.
What if there is quality problem when we get the goods?
If you encounter quality issues upon unpacking, please take photos for our reference. Our QC department will investigate and provide the best solutions, along with implementing quality improvements for future production.
What is your terms of packing?
We typically pack goods in blister boxes and cartons, but can accommodate custom packaging requests from customers.
What is your terms of payment?
T/T 30% as deposit, and 70% balance before delivery. We provide photos of products and packaging before final payment.
What is your terms of delivery?
EXW, FOB, CFR, CIF, DDU
How about your delivery time?
Generally 5-7 working days after receiving advance payment. Specific delivery time depends on items and order quantity.
Can you produce according to the samples?
Yes, we can manufacture products based on your samples or technical drawings.
If you're interested in our products or have any questions, feel free to contact us at any time!
Want to Know more details about this product
