SC FC LC ST Simplex Armored Optical Cable for Installation Temperature -10C～ 60C
Product Details:
| Place of Origin: | Guangdong, SHENZHEN |
| Brand Name: | TAKFLY |
| Certification: | CE,ROHS,REACH,ISO9001,ISO14001 |
| Model Number: | SX Armored-T715 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Pices |
|---|---|
| Price: | US$0.01 ~ US$1200/PC |
| Packaging Details: | spone + box + carton |
| Delivery Time: | 3-7working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
|
Detail Information |
|||
| Sheath Material: | PE Or LSZH | Shield: | SFTP |
|---|---|---|---|
| Return Loss: | ≥55dB | Working Temperature: | -25C-80C |
| Operation Temperature: | -40+70 | Central Stranden Member: | Steel Wire Or FRP |
| Connetcor: | SC/PC To SC/PC | Each Drum Length: | 2~6km/drum |
| Fiber Count: | 12 | Each Core: | 2mm Jacket Or Customized |
| Insertion Loss: | ≤0.3dB | Armor: | Steel Armoring |
| Connector: | SC FC LC ST | Strength Member: | Aramid Yarn |
| Installation Temperature: | -10℃～+60℃ | ||
| High Light: | Installation Temperature Armored Optical Cable,Simplex Armored Optical Cable |
||
Product Description
Product description:

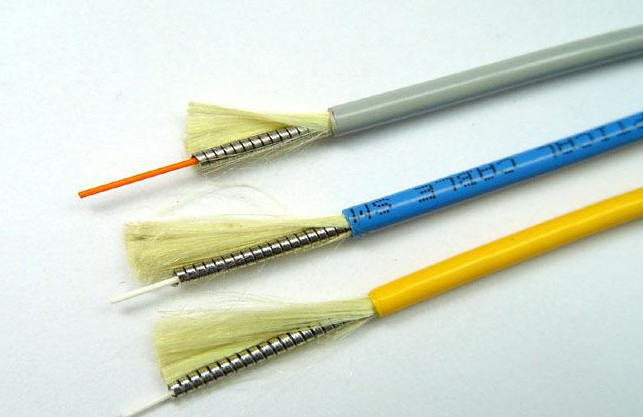

Simplex armored optical cable uses a single Φ600μm or Φ900μm tightly sheathed optical fiber as optical transmission medium, covered with a layer of spiral steel armor, and a layer of aramid yarn as stress strengthening unit. The outermost layer is extruded with a layer of polyvinyl chloride PVC or PU polyurethane,LSZH (low-smoke, halogen-free, flame retardant) jacket.
Product application:
- Optical fiber active connection jumper or tail fiber;
- Optical connections in optical communication equipment rooms and optical distribution frames;
- Interconnection of instruments and communication equipment.
Product characteristics:
- Good mechanical and environmental characteristics;
- Flame retardant characteristics meets the requirements of relevant standards;
- The mechanical characteristics meet the requirements of relevant standards;
- Soft, flexible, easy to splice, and with big capacity data transmission;
- Meet various requirements of market and clients.
Optical parameters and properties:
|
Optical fiber type |
Test wavelength |
Decay |
Full injection bandwidth (MHZ.km) |
Effective modal bandwidth (MHZ.km) |
Minimum bending radius (mm) |
|
|
Typical (dB/km) |
Maximum (dB/km) |
|||||
| G652D |
1310/1550nm |
0.36/0.22 | 0.5/0.4 | ... | ... | 16 |
| G657A1 | 0.36/0.22 | 0.5/0.4 | ... | ... | 10 | |
| G657A2 | 0.36/0.22 | 0.5/0.4 | ... | ... | 7.5 | |
| 62.5/125 |
850/1300nm |
3.0/1.0 | 3.5/1.5 | ≥200/500 | ... | 30 |
| 50/125 | 3.0/1.0 | 3.5/1.5 | ≥500/500 | ... | 30 | |
| OM3 | 3.0/1.0 | 3.5/1.5 | ≥1500/500 | ≥2000/... | 7.5 | |
| OM4 | 3.0/1.0 | 3.5/1.5 | ≥3500/500 | ≥4700/... | 7.5 | |
| OM5 | 850/953nm/1300nm | 3.0/.../1.0 | 3.5/.../1.5 | ≥3500/1850/500 | ≥4700/2470/... |
7.5 |

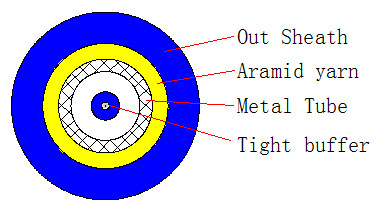

Product structure:
| Fiber count | 1 | |||
|
Optical fiber |
Diameter(±1µm) | 125µm | ||
| Coating diameter(±5µm) | 250µm | |||
|
Tight buffer |
Diameter(±50µm) | 600µm | 900µm | |
| Sheath materiall | PVC/LSZH | |||
| Color | Blue or Other colors available upon request | |||
|
Metal tube |
Diameter(mm) | 1.2mm | 1.4mm | |
| Material | Stainless steel | |||
|
Strength member |
Core reinforce |
Aramid yarn |
||
|
Outer sheath |
Sheath material | PVC/LSZH/PU | ||
|
Color |
Blue for single mode cable, Grey for multi mode cable; Or others color available upon request |
|||
|
Cable |
Outside diameter(mm) | 2.0mm | 3.0mm | |
| Cable weight (kg/km) | 15 | 19 | ||
|
Max tensile force(N) |
Long-term/ short-term |
80/150 |
80/150 |
|
|
Crush resistance(N/100mm) |
Short-term |
3000 |
3000 |
|
|
Min bend radius(D) |
Dynamic/ static |
20/10 |
20/10 |
|
| Running temperature | -20 ℃ ~+70 ℃ | |||
Other requirements:
Length of production optical cable:2000M
Optical cable outer sheath printing specifications, such as:
ARMORED OPTICAL FIBER CABLE 3.0 SM G652D-9/125um - LSZH - MM/YY 00000M
