Mini Optical Cable – 2 to 144 Cores, Small Diameter, Non‑metallic, LSZH/PVC Sheat
Product Details:
| Place of Origin: | China |
| Brand Name: | DF/OEM/Nuetral |
| Certification: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Model Number: | TK-PC-3.0-1M |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100PCS |
|---|---|
| Price: | US$0.01~2.79/PC |
| Packaging Details: | Export Standard Packing |
| Delivery Time: | 5-9 working days depends on QTY |
| Payment Terms: | Western Union,T/T,MoneyGram/Paypal |
| Supply Ability: | 10000PCS/Day |
|
Detail Information |
|||
| Product Name: | ST To LC OM1 OM2 Fiber Optic Duplex Patch Cord | Intertion Loss: | ≤0.3dB |
|---|---|---|---|
| Return Loss: | PC MM ≥ 35 DB | Fiber Type: | OM1/OM2 |
| Diameter: | 3.0mm | Connector Type: | PC/UPC |
| Jacket Material: | LSZH/PVC/PU | Color: | Orange Or Customized |
| Wavelength: | 1310nm, 850nm | Length: | 1M Or Customized |
| Operation Temperature: | -40℃~80℃ | Fiber Diameter: | 50/125 |
| Grade: | Telecom Grade | Certificate: | CE/ROHS/REACH |
| Production Capcity: | 10000PCS/Day | ||
| Highlight: | Mini optical fiber cable,144-core LSZH patch cord,Small diameter PVC sheathed |
||
Product Description

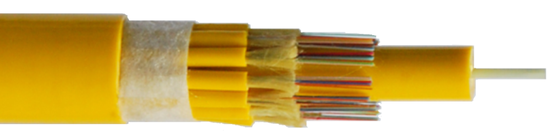

Mini Optical Cable – 2 to 144 Cores
Small diameter, non-metallic construction with LSZH/PVC sheath options
Product Overview
This mini optical cable series utilizes Φ250µm colored fibers as the optical transmission medium, designed for high-density applications with compact dimensions.
Construction Details

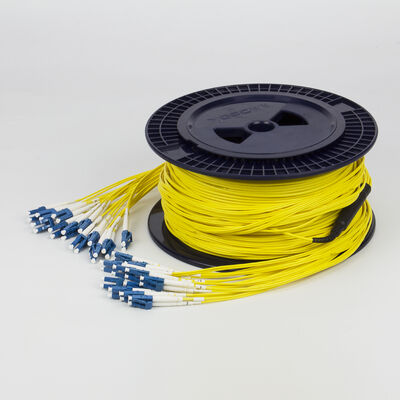

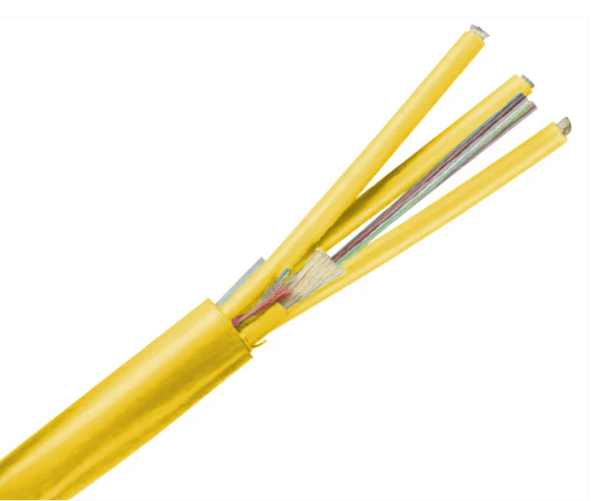

- 2 to 24 cores: Colored fibers reinforced with aramid yarn strength member, extruded with PVC or LSZH (low-smoke, halogen-free, flame-retardant) jacket
- 26 to 144 cores: Subunit construction with 250µm colored fibers and aramid yarn reinforcement within 3.0mm inner sheath. Features non-metallic FRP central strength element with subunits stranded around the core, finished with outer PVC or LSZH sheath
Applications
- Optical fiber jumper cords and pigtails for active connections
- Routing and patching in data centers and indoor communication networks
- Interconnection between test instruments and communication equipment
Key Characteristics
- Easy-strip coated fibers for simplified termination
- High tensile resistance from aramid yarn reinforcement
- Multi-fiber count with compact outer diameter and all-dielectric central strength structure
- Excellent flame-retardant performance with low additional attenuation across operating temperature range
Optical Parameters
| Optical Fiber Type | Test Wavelength | Typical Decay (dB/km) | Maximum Decay (dB/km) | Minimum Bending Radius (mm) |
|---|---|---|---|---|
| G652D | 1310/1550nm | 0.36/0.22 | 0.5/0.4 | 16 |
| G657A1 | 1310/1550nm | 0.36/0.22 | 0.5/0.4 | 10 |
| G657A2 | 1310/1550nm | 0.36/0.22 | 0.5/0.4 | 7.5 |
| 62.5/125 | 850/1300nm | 3.0/1.0 | 3.5/1.5 | 30 |
| 50/125 | 850/1300nm | 3.0/1.0 | 3.5/1.5 | 30 |
| OM3 | 850/1300nm | 3.0/1.0 | 3.5/1.5 | 7.5 |
| OM4 | 850/1300nm | 3.0/1.0 | 3.5/1.5 | 7.5 |
| OM5 | 850/953nm/1300nm | 3.0/.../1.0 | 3.5/.../1.5 | 7.5 |
Product Structure
| Component | 2-24 Cores | 26-144 Cores |
|---|---|---|
| Optical Fiber | Diameter: 125µm (±1µm) | |
| Coating Diameter | 250µm (±5µm) | |
| Fiber Colors | Blue, Orange, Green, Brown, Grey, White, Red, Black, Yellow, Violet, Pink, Aqua | |
| Subunit | / | Diameter: 3.0mm (±0.15mm) |
| Core Reinforcement | Aramid yarn | |
| Sheath Material | PVC/LSZH | |
| Sheath Color | Yellow (single mode), Orange (multi mode); Other colors available upon request | |
| Strength Member | / | FRP center reinforcement |
| Outer Sheath | Material: PVC/LSZH; Color: Yellow (single mode), Orange (multi mode); Custom colors available | |
Cable Specifications
| Fiber Count | Subunit Count | Outside Diameter (mm) | Cable Weight (kg/km) | Max Tensile Force (N) | Min Bend Radius (D) |
|---|---|---|---|---|---|
| 2-24 | / | 3.0 | 8 | 80/150 | 20/10 |
| 26-48 | 4 | 9.0 | 80 | 200/500 | 20/10 |
| 50-72 | 6 | 11.2 | 130 | 300/1000 | 20/10 |
| 74-96 | 8 | 13.5 | 180 | 300/1000 | 20/10 |
| 98-144 | 12 | 17.5 | 280 | 300/1000 | 20/10 |
Operating Temperature: -20℃ to +70℃
Standard Production Length: 2000 meters
