ADSS-100M All-Dielectric Self-Supporting Aerial Fiber Optic Cable – 4/6/12/24/48/96 Fibers, 100m Span, Self-Supporting Aerial Installation
Product Details:
| Place of Origin: | Guangdong, SHENZHEN |
| Brand Name: | TAKFLY |
| Certification: | CE,ROHS,REACH,ISO9001,ISO14001 |
| Model Number: | DX-Armored-T1771 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Pices |
|---|---|
| Price: | US$0.01 ~ US$1200/PC |
| Packaging Details: | spone + box + carton |
| Delivery Time: | 3-7working days |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
|
Detail Information |
|||
| Bending Radius: | 20D/15D | Installation: | Aerial |
|---|---|---|---|
| Sheath: | LSZH | Connetcor: | SC/PC To SC/PC |
| Diameter: | 8.5~16 Mm | Cable Type: | Single-mode |
| Operating Temperature: | -40°C To +70°C | Allowed Tensile Strength: | 100n<1000n |
| Length: | 2000m Per Roll Or Customized | Number Of Fiber: | 2cores/4core |
| Transport Package: | Wooden Drum | Packing: | Wooden Durm |
| Jacket: | PVC | Installation Method: | Indoor/Outdoor |
| Connector Type: | LC/UPC | Fiber Count: | 12 |
| Out Jacket Material: | PE | Core: | 12,optional |
| Warranty Time: | 20 Years | Crush Resistance: | ≥1000N/100mm |
| Cable Structure: | Bow Type Tight Buffer | Product Code: | GJYXCH-1B |
| Outer Sheath Material: | MDPE | Tensile Strength: | ≥100N |
| Max Tensile Strength: | 1000N | Model: | SC/APC~SC/APC |
| Insertion Loss: | 0.2dB | Outer Diameter: | 4.5mm Or As Per Customer Request |
| Outer Material: | Metal Wires | Standard: | IEC60794 |
| Strength Member: | OEM | Fiber Number: | 12 Cores |
| Manufacturing Year: | 2010 | Outer Sheath Color: | Black,Grey,White |
| Test Wavelength: | 1310nm~1550nm | Cable Model: | GJPFJV |
| Vibration: | ≤0.2dB | Package: | Wooden Ram |
| Reinforcement: | Iron Or KFRP Or FRP | Outer Sheath: | PE |
| Fiber Core: | 2~144 Cores | Data Rate: | 4*10G |
| Fiber Options: | G652D ,G657A,OM1,OM2,OM3,OM4 | Nominal Weight: | 83 |
| Cable Cutoff Wavelength: | λcc≤1260um | Install Way: | Dust/Direct Buried Installation |
| Tube: | Loose Tube Design | Material: | PE/LSZH |
| Port: | Ningbo | Color: | Yellow Or Customized |
| Jacket Material: | PVC | Number Of Core: | At Your Request |
| Shipping: | TNT,DHL,UPS,FEDEX Or EMS | Indoor Or Outdoor: | Indoor |
| Drum Size: | 300x300x300 | Fiber Length: | 1m Or Customized |
| Fiber Mode: | Singlemode G652D G657A | Keywords: | ADSS Cable |
| Network: | 4g, 3G | Oem: | Welcome |
| Number Of Conductor: | ≥ 10 | ||
| Highlight: | ADSS fiber optic cable 4-96 fibers,self-supporting aerial fiber cable 100m span,all-dielectric fiber optic cable aerial installation |
||
Product Description

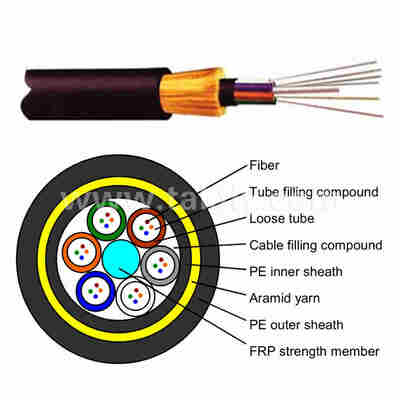

ADSS-100M All-Dielectric Self-Supporting Aerial Fiber Optic Cable
Product Overview
ADSS (All-Dielectric Self-Supporting) cable is a non-metallic aerial cable designed for direct installation between poles or towers without requiring a steel messenger wire. This series supports 100-meter spans and is available in fiber counts of 4, 6, 12, 24, 48, or 96 fibers. Featuring a loose tube stranded structure with all-dielectric materials and no metallic components, it is ideal for high-voltage transmission lines and telecommunication overhead applications.
Optical Fiber Characteristics (G.652D)
| Category | Items | Unit | Before Cabled | After Cabled |
|---|---|---|---|---|
| Optical Characteristics | Attenuation at 1310 nm | dB/km | ≤ 0.34 | ≤ 0.38 |
| Attenuation at 1550 nm | dB/km | ≤ 0.21 | ≤ 0.28 | |
| Zero dispersion wavelength | nm | 1300~1324 | ||
| Zero dispersion slope | ps/(nm²*km) | ≤ 0.092 | ||
| Cable cut-off wavelength λcc | nm | ≤ 1260 | ||
| Dispersion Coefficient 1550nm | ps/(nm*km) | ≤ 18 | ||
| Dispersion Coefficient 1625nm | ps/(nm*km) | ≤ 22 | ||
| PMD Maximum Individual Fibre | ps/√km | ≤ 0.1 | ||
| Geometrical Characteristics | Mode field diameter (MFD) at 1310 nm | µm | 8.7~9.5 | |
| Mode field diameter (MFD) at 1550 nm | µm | 9.8~10.8 | ||
| Group Index of Refraction at 1310 nm | / | 1.466 | ||
| Group Index of Refraction at 1550 nm | / | 1.467 | ||
| Cladding diameter | µm | 125 ± 0.7 | ||
| Coating diameter | µm | 235-250 | ||
| Core/cladding concentricity error | µm | ≤ 0.6 | ||
Cable Construction & Performance Parameters
| Items | Descriptions |
|---|---|
| Optical fiber Category | G652D |
| Fiber Counts | 24 | 48 | 96 |
| Structure | 1+6 | 1+8 |
| CSM Material | FRP |
| Loose Tube Material | PBT |
| Water-blocking Material | Water-blocking yarns and tape |
| Peripheral Strength Member | Aramid yarns |
| Outer Sheath Material | MDPE (Black) |
| Cable Diameter (mm) | 9.5 | 10.0 | 11.8 |
| Weight (KG/KM) | 70 | 75 | 110 |
| Maximum Allowed Tensile (N) | 2700 |
| Span (m) | 100 |
| Operating Temperature | -40℃ to +70℃ |
Packing & Drum Specifications
- Packing length: 2.0 ~ 4.0 km per drum
- Drum type: Wooden composite drum, export type
- Fumigation: Report and stamp provided when necessary
Cable Marking
The outer sheath is inkjet printed every meter with manufacturing year, cable type, fiber count, and length marking. Custom marking available per customer requirements.
Applications
- Overhead communication on high-voltage transmission lines (10kV ~ 220kV)
- Power system automation private networks
- Metropolitan area network backbone and access links
- Long-span installations across rivers or valleys
- Broadband access in rural and mountainous areas
Standards Compliance
- DL/T 788-2016 (Electric power industry)
- YD/T 980-2002 (Telecommunication industry)
- IEC 60794-4
- IEEE 1222
- Telcordia GR-20
Ordering Information
| Model | Fiber Count | Span | Sheath Material | Typical Application |
|---|---|---|---|---|
| ADSS-100M-4X | 4 | 100 m | MDPE | Low-voltage lines / distribution |
| ADSS-100M-6X | 6 | 100 m | MDPE | Low-voltage lines / distribution |
| ADSS-100M-12X | 12 | 100 m | MDPE | Medium-voltage lines |
| ADSS-100M-24X | 24 | 100 m | MDPE | High-voltage lines |
| ADSS-100M-48X | 48 | 100 m | MDPE | High-voltage / EHV lines |
| ADSS-100M-96X | 96 | 100 m | MDPE | Backbone communications |
For 4/6/12 fiber counts, please provide fiber color code and loose tube configuration when ordering. The factory will design accordingly.
