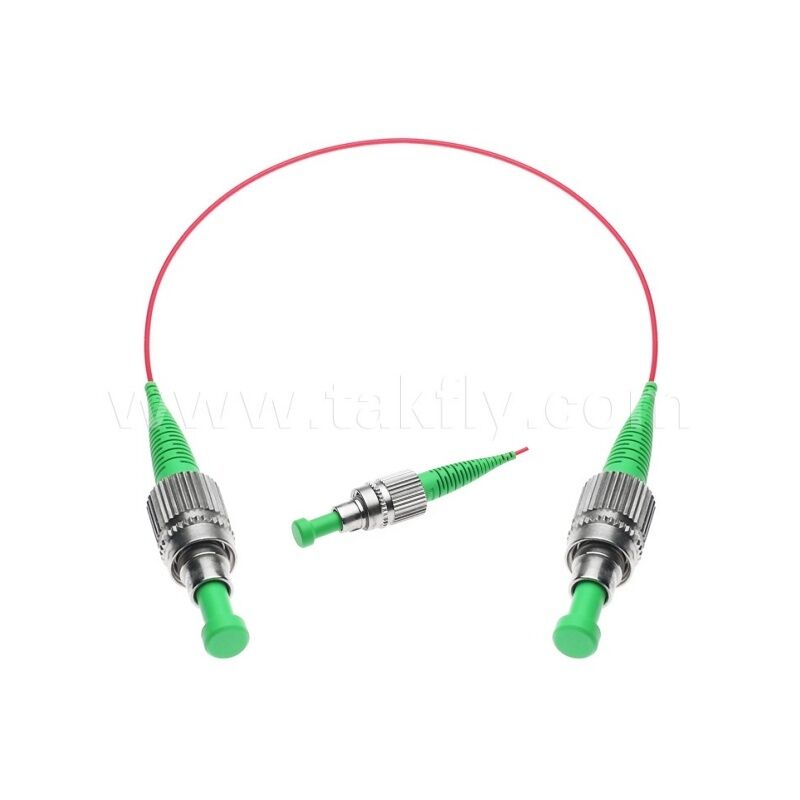

Polarization Maintaining FC/APC 0.9mm PM Fiber Optic Patchcord for ICT AI Computing
Product Details:
| Place of Origin: | China |
| Brand Name: | OEM |
| Certification: | ISO, CE RoHS |
| Model Number: | DF-PM-PC-FC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | USD10-58/pc |
| Packaging Details: | Blister Box |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T, Paypal |
| Supply Ability: | 5000pcs per month |
|
Detail Information |
|||
| Connector Type: | FC/APC | Customization: | Yes |
|---|---|---|---|
| Highlight: | PM fiber optic patchcord with FC/APC connector,0.9mm polarization maintaining patchcord,fiber optic patchcord for ICT AI computing |
||
Product Description
FC/APC 0.9mm PM Fiber Patchcord
Polarization Maintaining (PM) Patch Cable are widely used in polarization sensitive fiber optical systems for transmission of light that requires the PM state to be maintained. All the PM fiber patch cable, PM patch cable from Takfly meet or exceed industry standards for applications where polarization sensitivity is a requirement.
Our PM fiber cable, PM patchcord come in many flexible configurations, with choice of connectors. 250µm bare fiber, 900µm loose tube fiber or 3mm cable can be supplied in, and FC/UPC, FC/APC, SC/UPC, SC/APC and LC connectors are available from Takfly.
Features
1.Low Insertion Loss;
2.High Return Loss;
3.High Extinction Ratio;
4.High Stability and Reliability.
Structure Diagram
Specification
| Parameter | Unit | Value | ||||||
| Connector Type | - | |||||||
| Center Wavelength | nm | 1550 | 1310 | 1060 | 980 | 850 | 780 | |
| Max. Insertion Loss | nm | 0.3 | 0.3 | 0.5 | 0.5 | 0.8 | 0.8 | |
| Min. Extinction Ratio at 23℃ | dB | 23 | 23 | 23 | 23 | 22 | 22 | |
| Min. Return Loss | UPC Type | dB | 50 | |||||
| APC Type | dB | 60 | ||||||
| Fiber Type | - | PM Panda fiber | ||||||
| Key Orientation | - | Slow Axis | ||||||
| Tolerance for Axis Alignment | deg | ±3 | ||||||
| Operating Temperature | ℃ | -20~+70 | ||||||
| Storage Temperature | ℃ | -40~+85 | ||||||
The default connector key is aligned to slow axis
Application
1.Optical Fiber Amplifiers
2.Test Instrument
3.Fiber Sensor
4.Research
5.Fiber Laser
