High-Performance SC Fast Connector – Reliable 2-Minute FTTH Termination Solution for Drop Cables
Product Details:
| Place of Origin: | ShenZhen & ZhongShan China |
| Brand Name: | DF/OEM/Nuetral |
| Certification: | CE/ROHS/CPR EN50575/ISO9001 /ISO14001 |
| Model Number: | FC-SCU(A)-H002 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Can be negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 5-9 Works depend on the QTY |
| Payment Terms: | T/T,Paypal |
| Supply Ability: | 1000PCS/Day |
|
Detail Information |
|||
| Highlight: | SC Fast Connector for FTTH,2-minute termination SC Connector,SC Fast Connector drop cable solution |
||
|---|---|---|---|
Product Description

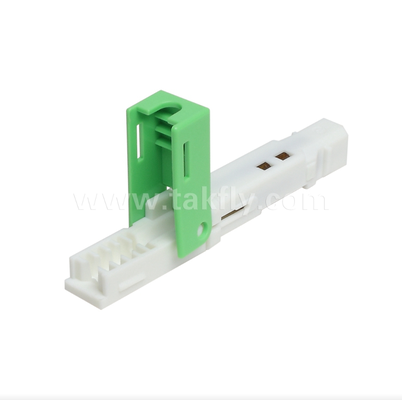

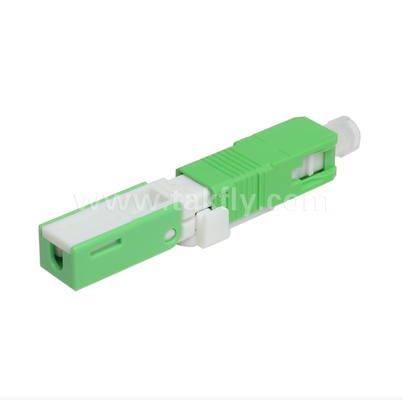

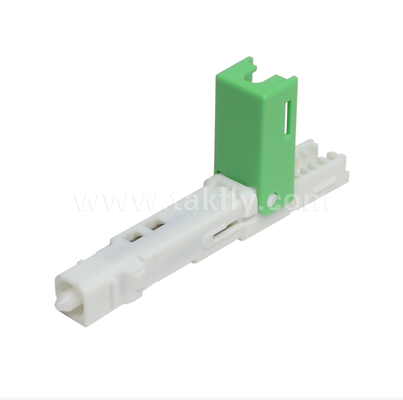

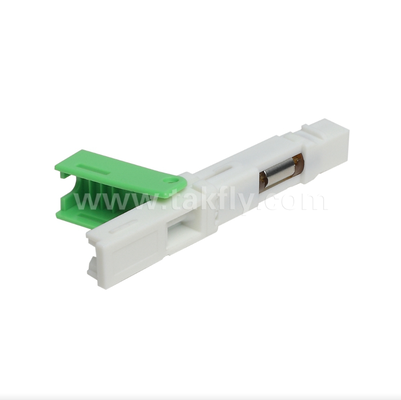

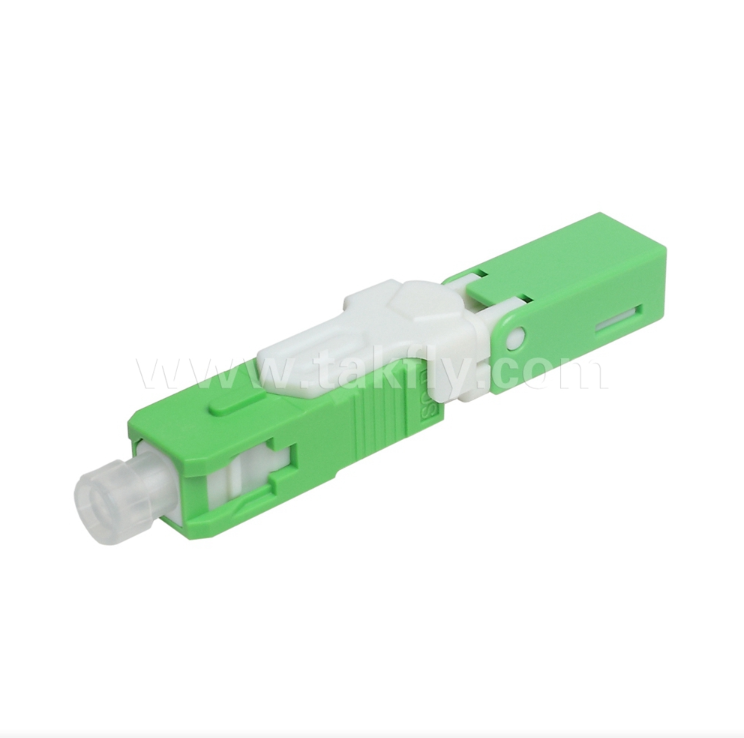

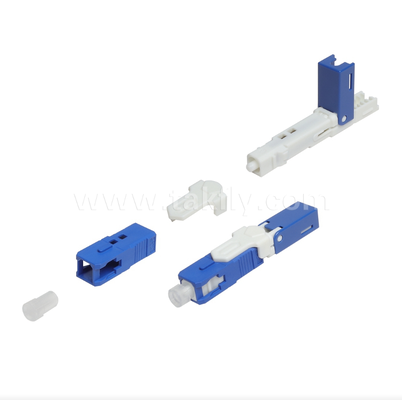

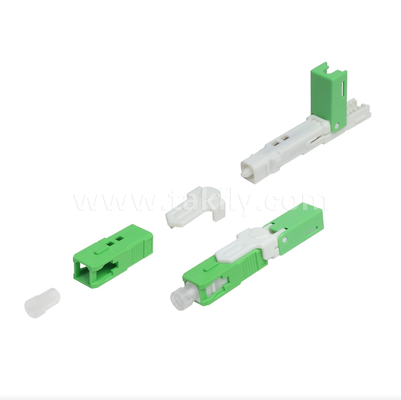

High-Performance SC Fast Connector
Reliable 2-Minute FTTH Termination Solution for Drop Cables
Product Overview
The SC fast connector is a high-performance, field-installable optical fiber connector designed for on-site assembly in fiber-to-the-home (FTTH) access networks. It enables quick and reliable termination of drop cables directly in the field, eliminating the need for fusion splicing or factory pre-termination.
Featuring pre-polished mechanical splice technology, this connector requires no epoxy, no curing, and no polishing during installation - significantly reducing deployment time and labor costs. The entire termination process takes approximately 2 minutes, making it an ideal solution for high-volume FTTH rollouts and emergency field repairs.
The connector offers wide cable compatibility, supporting 900μm tight-buffered fibers, 3.0mm drop cables, and 8-shaped self-supporting drop cables, as well as both single-mode (OS2) and multi-mode (OM1-OM5) fibers. It provides seamless interconnection to optical distribution frames (ODF), patch panels, ONT/ONU equipment, and other network devices.
Key Features
- Pre-polished mechanical splice - no epoxy, no curing, no field polishing required
- 2-minute installation - rapid field assembly significantly reduces FTTH deployment time
- Wide cable compatibility - supports 900μm, 3.0mm, and 8-shaped drop cables
- Fiber type flexible - compatible with single-mode (OS2) and multimode (OM1-OM5)
- Low insertion loss - ≤0.3dB for reliable signal transmission
- Reusable design - can be re-terminated or adjusted in the field if needed
- No special tools required - standard FTTH installation toolkit sufficient
- Standards compliance - meets IEC 61753-1 and YD/T 987 standards
Design Advantages
Anti-dust Function by Dust Cap: Each bare fiber adapter includes a dust cap that protects the ferrule from dust and keeps it clean.
Selected High Quality Ferrule: Available with high quality ferrule, professional polishing technology, and precise matching for optical endface to achieve stable transmission and efficient connection.
Secure Cable Locking: Locks the optical cable with cable grip and boot cover. The V-groove can be re-opened using an aid tool.
Simple Operation: Easy to operate and can be observed with the naked eye for straightforward field installation.
Applications
- FTTH Access Networks: On-site termination of drop cables from distribution points to subscriber premises
- Fiber Optic Distribution Frames (ODF): Quick connection to optical distribution frames and patch panels
- ONT/ONU Equipment Interconnection: Field termination of cables connecting to ONT/ONU, routers, and other active equipment
- 8-Shaped Drop Cable Termination: Direct termination of self-supporting drop cables without stripping strength members
- Enterprise Network Cabling: On-site termination for LAN, campus, and building fiber networks
- Emergency Restoration: Rapid field repair and restoration of damaged fiber connections
- Multi-Unit Dwellings (MDU): Mass termination of drop cables in apartment building distribution boxes
Technical Specifications
Why Choose TAKFLY?
26 Years of Manufacturing Experience in Fiber Optic Products
- Experienced Assembly Team: More than 80 assembly workers with 6+ years of experience
- Strong R&D Capability: More than 10 R&D engineers
- Advanced Production Equipment: 16 sets of German imported injection machines and 16 production lines
- Comprehensive Testing Facilities: More than 30 sets of testing instruments, including OTDR, ILD, VFL, RL, IL, tension strength testers, crush resistance testers, power meter testers, light checkers, etc.
- OEM Branding Accepted: Custom logo/branding available
Quality Control Process
- Incoming inspection: Spot check of raw materials before production
- In-process inspection: Full inspection at every individual process completion
- Pre-packaging inspection: Full inspection of finished products before packing
- Pre-shipping inspection: Spot check before shipping
Industry Participation
Active participation in major industry exhibitions including OFC, FOCC, ConnecAsia, NFTCOM, AFRICACOM, SMART ICT, Contelem, China, and Source Electronics Exhibition.
Delivery Information
- Samples: 1-3 working days
- Mass production orders: 3-7 working days
- Packaging: Plastic bag, carton, and pallet options available according to your requirements
Want to Know more details about this product
