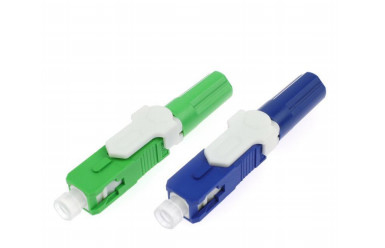

Durable Mechanical Fiber Optic Connector SC/APC SC/UPC -40-85C for Long-Term
Product Details:
| Place of Origin: | Guangdong, SHENZHEN |
| Brand Name: | TAKFLY |
| Certification: | CE,ROHS,REACH,ISO9001,ISO14001 |
| Model Number: | TK-FC-SCU（A）-H001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Pices |
|---|---|
| Price: | US$0.01 ~ US$1200/PC |
| Delivery Time: | 3-7working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
|
Detail Information |
|||
| Operating Bandwidth: | 1260~1620(SM) | Insert Loss: | <0.2dB |
|---|---|---|---|
| Pin Face: | UPC/APC | Number Of Conductors: | ≥ 10 |
| Storage Temperature: | -40~85℃ | Boot Type: | Snap-on |
| Housing: | Blue, Black 9/125 Singlemode | Model No: | G657A2 |
| Polishing Type: | PC, UPC, APC | Plating: | Stainless Steel Passivation |
| Keyword: | Waterproof Connector | Mqo: | 1 Piece |
| Connector Style: | SC, LC, FC | Waterproof Connector: | Fibconet Waterproof Connector |
| Connector Gender: | Male/Female | ||
| Highlight: | Durable Mechanical Fiber Optic Connector,SC/APC Mechanical Fiber Optic Connector,SC/UPC Mechanical Fiber Optic Connector |
||
Product Description
Product Description:
Features:
Fiber termination has never been as easy as it is with this innovative product. Our product provides precision mechanical alignment, allowing for very low insertion loss and superior optical performance. Streamlined component design and convenient operation allow the user to make pre-installed, on-site assembly without end face grinding and consideration.
Additionally, this product uses proven, molded v-groove technologies, making the often difficult job of fiber termination a breeze. You can even verify optical continuity with Visual Fault Locator (VFL) technologies.
It's no wonder that this product is so popular! You can easily do a fiber termination job without worrying about any polishing or epoxy. This product does it all for you, quickly and easily.
|
Item
|
Parameter
|
|
Suitable for optical cable
|
2.0mmx3.1mm Butterfly Optical cable
|
|
Plug type
|
SC/APC SC/UPC
|
|
Fiber diameter
|
0.125mm
|
|
Insertion loss
|
<0.5db(typical value 0.2dB)
|
|
Return loss
|
UPC>45 APC>55dB
|
|
tensile strength
|
30
|
|
Operating temperature
|
-40°C—+85°C
|
|
High and low temperature cycle
|
△IL<0.3dB,RL<△5dB
|
Application:
- Fiber optic communication system and telecommunication networks
- Fiber optic data transmission
- CATV
- Optical access
Customization:
Brand Name: Takfly/OEM
Model Number: Fiber Optic Fast Connector
Place of Origin: Shenzhen, China
Name: Fiber Optic Fast Connector
Connector Gender: Male/Female
Operating Temperature: -40℃~+85℃
Durability: ≥1000 Times
Cable Type: Single-mode, Multi-mode
Optical Fiber Connector Manufacturer
Takfly is a professional optical fiber connector manufacturer, providing professional and reliable optical fiber connector and related services.
Our fiber optic connectors are designed for reliability and durability. They are able to withstand a wide range of temperatures and are compatible with both single-mode and multi-mode cables.
Our connectors are tested to meet OEM and industry standards and are designed to provide a reliable connection that can last over 1000 times.
Support and Services:
- Assist customers in finding the right fiber optic connector for their applications.
- Provide technical consultation and advice on fiber optic connector installation.
- Offer after-sale service and maintenance for our fiber optic connectors.
- Ensure the highest quality of fiber optic connector products.
- Provide 24/7 customer service.
- Provide warranty services for our fiber optic connectors.
Packing and Shipping:
Packaging and Shipping of Fiber Optic Connector:
- The fiber optic connector is packaged in a cardboard box with foam padding for protection.
- It is shipped via a reliable carrier.
- All orders are shipped within 24 hours of payment.
FAQ:
- Q: What is the Brand Name of this Fiber Optic Connector?
A: The Brand Name is Takfly/OEM. - Q: What is the Model Number of this Fiber Optic Connector?
A: The Model Number is Fiber Optic Fast Connector. - Q: Where is this product made?
A: This product is made in Shenzhen, China. - Q: What is the purpose of this Fiber Optic Connector?
A: This Fiber Optic Connector is used to connect fiber optic cables quickly and easily. - Q: What type of fiber optic cables can this Connector be used with?
A: This Connector can be used with single mode and multimode fiber optic cables.
I have been working in this field many years, I believe, I could give you very good service and professional answers!
If you're interested in our products or have any doubt, why not send me inquiry at once
