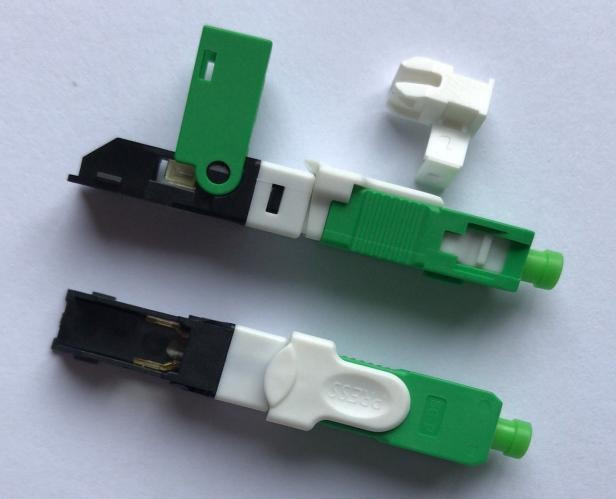

OptiSpeed Ultra-Low Loss SC/APC Fast Connector UPC Polishing Free Sample Included
Product Details:
| Place of Origin: | Guangdong, SHENZHEN |
| Brand Name: | TAKFLY |
| Certification: | CE,ROHS,REACH,ISO9001,ISO14001 |
| Model Number: | DF-5501 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Pices |
|---|---|
| Price: | US$0.01 ~ US$1200/PC |
| Packaging Details: | spone + box + carton |
| Delivery Time: | 3-7working days |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
|
Detail Information |
|||
| Model No: | Fiber Optic Fast Connector | Atorage Temperatuture: | -40°C~85℃ |
|---|---|---|---|
| Wiring Devices: | ODF | Color: | Black |
| Free Sample: | Yes | Connector Outer Diameter: | 3.0mm, 2.0mm, 0.9mm |
| Housing Color: | Blue, Green, Beige | Transmission Medium: | Single-Mode |
| Feature: | Waterproof | Material: | Plastic |
| Interchangeability: | ≤0.2dB | Fiber Mode: | 62.5/125µm OM1, 50/125µm OM2 |
| Port: | Fiber Hub Box From NINGBO Port | Model Name: | Fiber Optics Connector |
| Weight: | 2kg | Repeatability: | ≤0.2dB |
| Fiber Diameter: | 125μm | Assembly Type: | Mechanical |
| Connector Module: | 3.0mm | Connector Cable Od: | 0.9mm ,2.0mm, 3.0mm |
| Durability: | ≥1000 Times | Production Capacity: | 700000pieces/Month |
| Polishing Type: | UPC, APC | Filler: | Optical Silicone Grease |
| Endurance: | 500 Cycles | Operating Temperature: | -40°C To +85°C |
| Connector Return Loss: | SMF: UPC≥50, APC≥60 ;MMF: ≥30 | Salt Spray: | 500h |
| Installation Time: | Within 60s ( No Fiber Cut ) | ||
| Highlight: | Ultra-Low Loss SC/APC Fast Connector,UPC Polishing SC/APC Fast Connector,Free Sample SC/APC Fast Connector |
||
Product Description
1. Product Structure
1.1 Measured the Structure
1.2 Product length
5508 type
50mm ≤L≤60mm(≈55mm)
2.Optical Characteristics
|
Category |
Specification |
Remarks |
|
|
Aoolicable for |
3.0mm×2.0mm(Drop cable.Indoor cable) |
||
|
2.0mm×1.6mm(Drop cable.Indoor cable) |
|||
|
Fiber mode |
Single mode or Multi mode |
|
|
|
Operation time |
S |
About 50(no fiber cut) |
|
|
Insertion Loss |
dB |
≤0.5 |
|
|
Insertion Loss Typical value |
dB |
0.3 |
|
|
Return Loss |
dB |
≥45 |
|
|
Fastening strength of naked fiber |
N |
≥5 |
|
|
Tensile strength |
N |
≥50 |
|
|
Reusable |
Time |
≥10 times |
|
|
Operating Temperature |
℃ |
-40～+85 |
|
|
On-line tensile strength(20N) |
dB |
ΔIL≤0.3 |
|
|
Mechanical durability(500 times) |
dB |
ΔIL≤0.3 |
|
|
Drop-off test(drop-off height4m,once per direction,totally 3 times) |
dB |
ΔIL≤0.3 |
|
3. Environmental performance requirements
|
Category |
Specification |
|||
|
Condition |
IL Variation |
RL Variation |
Appearance |
|
|
High TEMP |
110℃, 200H |
≤0.5 |
≤5 |
No mechanic aldamage, like deformation, cracking and untight |
|
Low TEMP |
-40℃, 200H |
≤0.5 |
≤5 |
|
|
TEMP Cycling |
-40～85℃, 3.5H/Cle, 100C |
≤0.5 |
≤5 |
|
|
HAST |
110℃, 90%RH, 200H |
≤0.5 |
≤5 |
|
|
Immersion |
25℃,200H |
≤0.5 |
≤5 |
|
|
Salt Mist |
5% Nacl, 6.5＜PH＜ 7.5, 35℃,200H |
≤0.5 |
≤5 |
|
4. Mechanical Performance Requirements
|
Category |
Specification |
|||
|
Condition |
IL Variation |
RL Variation |
Appearance |
|
|
Impact |
Height: 4m; 1 drop each axis; 3 cycles |
≤0.5 |
≤5 |
No mechanical damage, like deformation, cracking and untight |
|
Vibration |
Frequency: 10 ～ 50HZ; Sweep: 45 times / min; amplitude: 0.75mm; Duration:30min each axial |
≤0.5 |
≤5 |
|
|
Torsional |
Pull: 15N; The distance between Loading location and fast connector: L = 22-28cm; Rate: 10times /min. Times: 200 |
≤0.5 |
≤5 |
|
|
Tensile
|
Pull: 50N; The distance between Loading location and fast connector: L = 22-28cm; Duration: 1min.
|
≤0.5
|
≤5
|
|
5. Product Packaging Information
5.1 Suction Box Packing
|
|
Size(CM) |
16*9.5*2 |
|
|
QTY(PCS/Box) |
10 |
|
|
|
N.W(KG/PCS) |
0.004 |
|
|
|
N.W(KG/Box) |
0.0415 |
|
|
|
G.W(KG/Box) |
0.0457 |
|
3.1 Gift Box Packing(Inner packing)
|
|
Size(CM) |
20*16.5*6.5 |
|
|
QTY(Suction Box/Girt Box) |
10 |
|
|
|
N.W(KG/Box) |
0.457 |
|
|
|
G.W(KG/Box) |
0.527 |
|
3.2 Outer Packing
|
|
Size(CM) |
34.5*21*38 |
|
|
QTY(Gift Box/Box) |
10 |
|
|
|
QTY(Pcs/Box) |
1000 |
|
|
|
N.W(KG/Box) |
5.27 |
|
|
|
G.W(KG/Box) |
5.75 |
|
