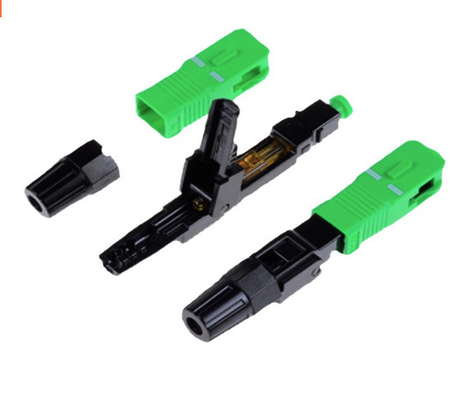

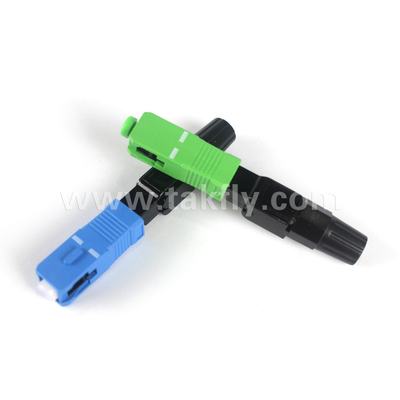

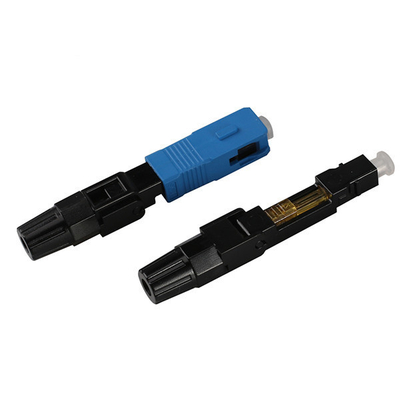

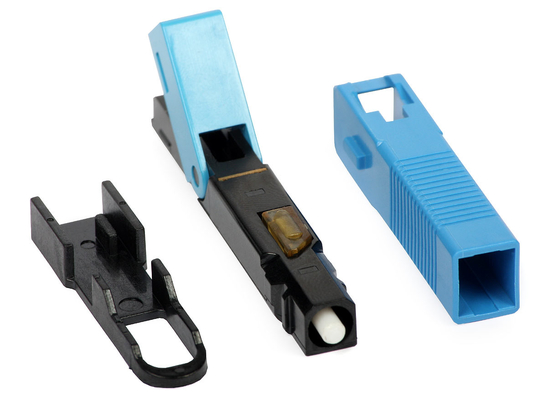

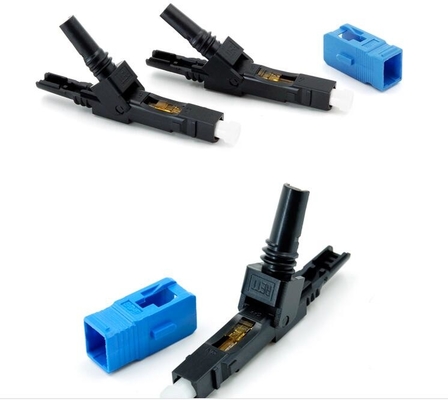

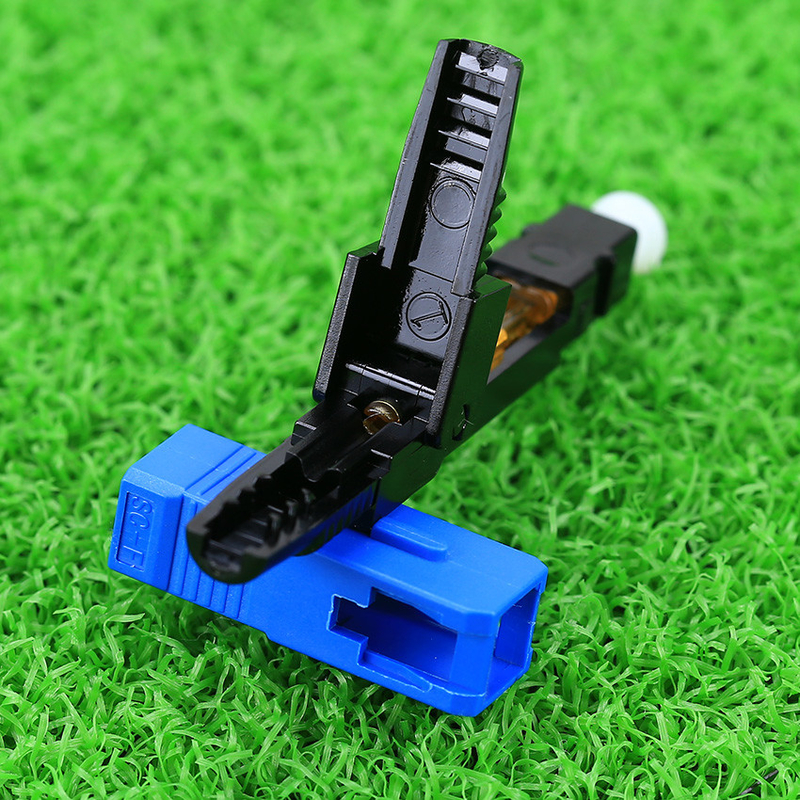

SC/APC Field Installable Fast Connector Includes Housing Body for Easy Installation
Product Details:
| Place of Origin: | Guangdong, SHENZHEN |
| Brand Name: | TAKFLY |
| Certification: | CE,ROHS,REACH,ISO9001,ISO14001 |
| Model Number: | DF-5501 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Pices |
|---|---|
| Price: | US$0.01 ~ US$1200/PC |
| Packaging Details: | spone + box + carton |
| Delivery Time: | 3-7working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
|
Detail Information |
|||
| Model No: | Fiber Optic Fast Connector | Atorage Temperatuture: | -40°C~85℃ |
|---|---|---|---|
| Wiring Devices: | ODF | Color: | Black |
| Free Sample: | Yes | Connector Outer Diameter: | 3.0mm, 2.0mm, 0.9mm |
| Housing Color: | Blue, Green, Beige | Transmission Medium: | Single-Mode |
| Feature: | Waterproof | Material: | Plastic |
| Interchangeability: | ≤0.2dB | Fiber Mode: | 62.5/125µm OM1, 50/125µm OM2 |
| Port: | Fiber Hub Box From NINGBO Port | Model Name: | Fiber Optics Connector |
| Weight: | 2kg | Repeatability: | ≤0.2dB |
| Fiber Diameter: | 125μm | Assembly Type: | Mechanical |
| Connector Module: | 3.0mm | Connector Cable Od: | 0.9mm ,2.0mm, 3.0mm |
| Durability: | ≥1000 Times | Production Capacity: | 700000pieces/Month |
| Polishing Type: | UPC, APC | Filler: | Optical Silicone Grease |
| Endurance: | 500 Cycles | Operating Temperature: | -40°C To +85°C |
| Connector Return Loss: | SMF: UPC≥50, APC≥60 ;MMF: ≥30 | Salt Spray: | 500h |
| Installation Time: | Within 60s ( No Fiber Cut ) | ||
| Highlight: | SC/APC Fast Connector,SC/APC Field Installable Connector |
||
Product Description

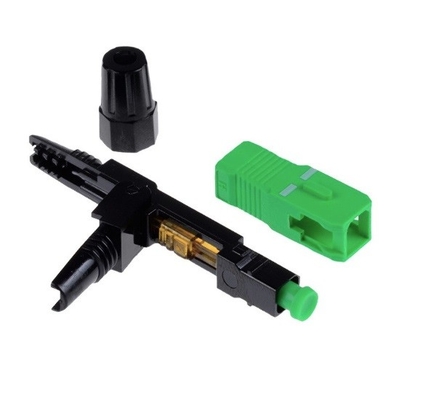

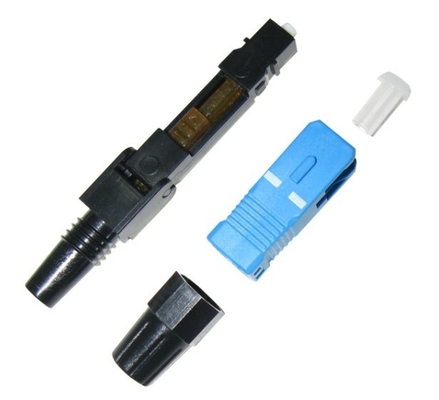

Product Structure:
Measured the Structure
Product length:
50mm ≤L≤60mm(≈55mm)
Ptical Characteristics:
| Category | Specification |
| Aoolicable for | Drop cable.Indoor cable |
| Fiber mode | Single mode or Multi mode |
| Fiber type | G.652D, G.657A1 |
| Fiber cable | 3.0*2.0mm rubber-insulated optical cable ∅3.0/ ∅2.0 / ∅0.9 insulated optical cable |
| Fiber diameter | 0. 125mm |
| Force holds 2 x 3mm cable type at the beginning of the fast connector | ≥ 40 N, loss ≤ 0.4 dB (sample cable length: 22 - 28 cm, test time: 2 minutes) |
| Fiber lock | lock holds fiber reliability, bears hang force ≥ 3.8 N, attenuation changes ≤ 0.2 dB |
| Working wavelength | 1310 nm, 1490 nm, 1550 nm |
| Operation time | S | About 50(no fiber cut) |
| Insertion Loss | dB | ≤0.35 |
| Insertion Loss Typical value | dB | 0.3 |
| Return Loss | dB | UPC≥45,APC≥55 |
| Fastening strength of naked fiber | N | ≥3 |
| Tensile strength | N | ≥40 |
| Reusable | Time | ≥10 times |
| Operating Temperature | ℃ | -40～+85 |
| On-line tensile strength(20N) | dB | Δ IL≤0.3 |
| Mechanical durability(500 times) | dB | Δ IL≤0.3 |
|
Drop-off test(drop-off height4m,once per direction,totally 3 times) |
dB | Δ IL≤0.3 |
Environmental performance requirements:
| Category | Specification | |||
| Condition | IL Variation | RL Variation | Appearance | |
| High TEMP | 110℃ , 200H | ≤0.5 | ≤5 |
No mechanical da mage, like deform ation, cracking and untight |
| Low TEMP | -40℃ , 200H | ≤0.5 | ≤5 | |
| TEMP Cycling | -40～85℃ , 3.5H/Cle, 100C | ≤0.5 | ≤5 | |
| HAST | 110℃, 90%RH, 200H | ≤0.5 | ≤5 | |
| Immersion | 25℃ , 200H | ≤0.5 | ≤5 | |
| Salt Mist | 5% Nacl, 6.5＜PH< 7.5,35℃,200H | ≤0.5 | ≤5 | |
Mechanical Performance Requirements:
|
Category |
Specification | |||
| Condition |
IL Variation |
RL Variation | Appearance | |
|
Impact |
Height: 4m; 1 drop each axis; 3 cycles |
≤0.5 |
≤5 |
No mechanical da mage, like deforma tion, cracking and untight |
|
Vibration |
Frequency: 10 ～ 50HZ; Sweep: 45 times / min; amplitude: 0.75mm; Duration:30min each axial |
≤0.5 |
≤5 |
|
|
Torsional |
Pull:15N; The distance between Loading location and fast connector: L = 22-28cm; Rate:10times / min. Times: 200 |
≤0.5 |
≤5 |
|
|
Tensile |
Pull:50N; The distance between Loading lo cation and fast connector: L = 22 -28cm; Duration:1min |
≤0.5 |
≤5 |
|
Product Packaging Information:
Blister Box Packing
|
Size(CM) | 14.6*7.6* 1.6 |
| QTY(PCS/Box) | 10 | |
| N.W(KG/PCS) | 0.0031 | |
| N.W(KG/Box) | 0.031 | |
| G.W(KG/Box) | 0.0465 |
Adapter (supports strip and cut fiber):
1 adapter / 50 fast con nectors 1 Operation Manual/ 10 fast con nectors
Cleave fiber:
Gift Box Packing(Inner packing):
|
Size(CM) | 15.8* 14.5*9.5 | |
| QTY(Blister Box/Girt Box) | 10 | ||
| N.W(KG/Box) | 0.52 | ||
| G.W(KG/Box) | 0.55 |
Outer Packing:
|
Size(CM) | 46*46*32.5 |
| QTY(Gift Box/Box) | 30 | |
| QTY(Pcs/Box) | 3000 | |
| N.W(KG/Box) | 15.3 | |
| G.W(KG/Box) | 16.5 |
