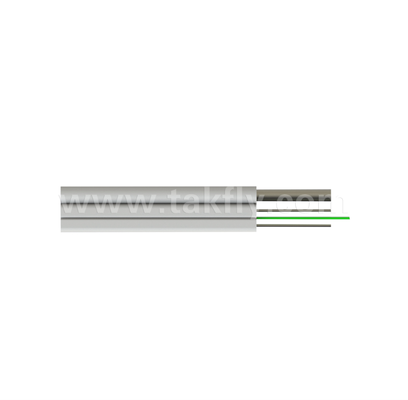

GJYXFCH Self-Supporting Bow-Type Drop Cable – FTTH Aerial to Indoor, 1-4 Cores, Low Smoke Zero Halogen
Product Details:
| Place of Origin: | ShenZhen & ZhongShan China |
| Brand Name: | DF/OEM/Nuetral |
| Certification: | CE/ROHS/CPR EN50575/ISO9001 /ISO14001 |
| Model Number: | GJYXFCH-1-4X |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Can be negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 5-9 Works depend on the QTY |
| Payment Terms: | T/T,Paypal |
| Supply Ability: | 2000PCS/Week |
|
Detail Information |
|||
| Highlight: | FTTH aerial drop cable,self-supporting bow-type fiber cable,low smoke zero halogen fiber optic |
||
|---|---|---|---|
Product Description
GJYXFCH Self-Supporting Bow-Type Drop Cable
FTTH Aerial to Indoor, 1-4 Cores, Low Smoke Zero Halogen
Product Overview

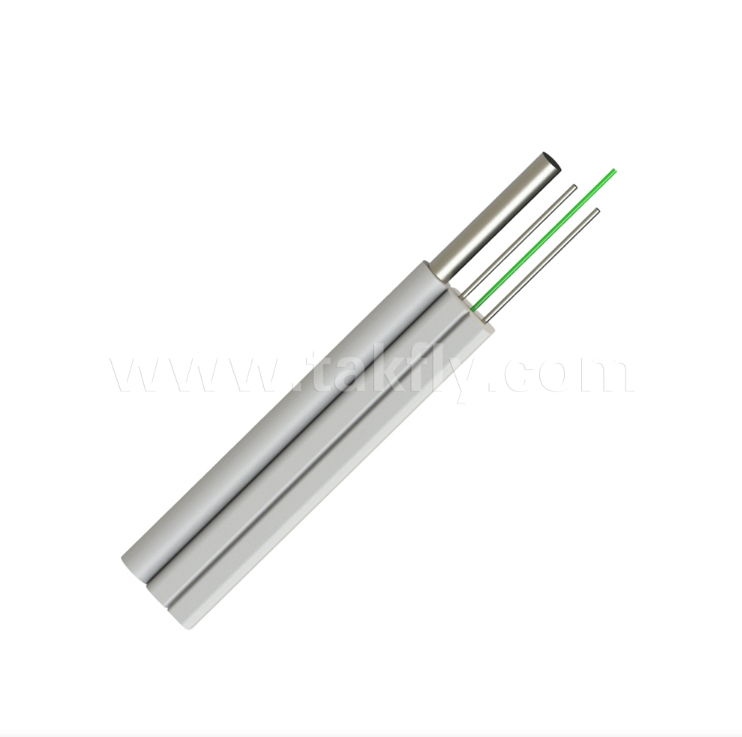

The GJYXFCH self-supporting bow-type drop cable is a specialized FTTH引入光缆 designed for aerial to indoor applications. It features a central optical fiber unit with two parallel non-metallic FRP strength members for compressive strength and an additional large steel messenger wire for superior tensile performance. The entire assembly is extruded with a low smoke zero halogen (LSZH) flame retardant sheath to ensure safety and environmental compliance.
This unique "bow-type" (8-shaped) structure provides exceptional mechanical protection while maintaining flexibility for easy installation. The cable is designed for outdoor aerial deployment with a self-supporting capability of up to 50 meters span between poles and can be seamlessly transitioned indoors by stripping the messenger wire.
Structure Diagram
Key Features
- Central fiber placement - ensures maximum protection from external forces
- Dual FRP strength members - excellent crush resistance and fiber protection
- Steel messenger wire - superior tensile strength for aerial self-supporting installation
- LSZH flame retardant sheath - low smoke, halogen-free, environmentally safe for indoor use
- Bend-insensitive fiber - G.657A1/A2 for small radius bending applications
- Easy stripping design - unique groove design for quick installation and termination
- Indoor/outdoor versatile - suitable for both outdoor aerial and indoor deployment
- Operating temperature - -20°C to +60°C (-40°C to +60°C for specific models)
Applications
- FTTH aerial-to-indoor installation
- Rural broadband network upgrades
- Building-to-building short-span cabling
- Access networks (FTTH/FTTB)
- Enterprise campus networks
Why Choose TAKFLY?
26 Years of Manufacturing Experience in Fiber Optic Products
Experienced Assembly Team: More than 80 assembly workers with 6+ years of experience
Strong R&D Capability: More than 10 R&D engineers
Advanced Production Equipment: 16 sets of German imported injection machines and 16 production lines
Comprehensive Testing Facilities: More than 30 sets of testing instruments including OTDR, ILD, VFL, RL, IL, tension strength testers, crush resistance testers, power meter testers, light checkers
OEM Branding Accepted: Custom logo/branding available
Quality Control Process
- Incoming inspection: Spot check of raw materials before production
- In-process inspection: Full inspection at every individual process completion
- Pre-packaging inspection: Full inspection of finished products before packing
- Pre-shipping inspection: Spot check before shipping
Exhibition Participation & Certifications
Source Electronics Exhibition, OFC, FOCC, ConnecAsia, NFTCOM, AFRICACOM, SMART ICT, Contelem, China.
Delivery Information
Samples: 1-3 working days
Mass production orders: 3-7 working days
Packaging: Plastic bag, carton, and pallet options available according to your requirements
