OEM 1U 19Inch 2x64 Rack Mount LC Fiber Optic PLC Splitter for FTTx Data Center
Product Details:
| Place of Origin: | China |
| Brand Name: | OEM |
| Certification: | ISO, CE RoHS |
| Model Number: | TK-PLC-1U-2x64 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | USD60-80/pc |
| Packaging Details: | Carton |
| Delivery Time: | 12-15 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 500pcs per month |
|
Detail Information |
|||
| Type Of Connector: | LC | Material: | Cold-rolled Sheet |
|---|---|---|---|
| Type Of Fiber: | G652D, G657A1, G657A2 | Rack Mount Packagin: | 483*44.5*200mm |
| Highlight: | 1U rack mount fiber optic PLC splitter,19 inch LC fiber optic splitter,FTTx data center PLC splitter |
||
Product Description
OEM 1U 19Inch 2x64 Rack Mount LC Fiber Optic PLC Splitter
Rack Mount PLC (Planar Lightwave Circuit) Splitter is a power distribution device based on integrated quartz substrate technology. These single-mode PLC 1×N and 2×N splitters uniformly divide optical signals from one or two input sources to multiple outputs. The splitters can also operate in reverse to combine multiple signals into one or two fibers.
Key Features
- Broadband operation wavelength range
- Low insertion loss performance
- Low polarization dependent loss (PDL)
- Compact and space-efficient design
- Excellent channel-to-channel uniformity
- High reliability and long-term stability
Applications
- Telecommunication networks
- Passive Optical Network (PON) systems
- Fiber to the Home (FTTH) deployments
- CATV distribution systems
- Video transmission networks
Technical Specifications
| Parameter | Value |
|---|---|
| Operating Wavelength | 1260 ~ 1650 nm |
| Fiber Type | ITU-T G657A1, G657A2 and G.652D |
| Max. Temperature Stability | 0.5 dB (Typical 0.3 dB) |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -40°C to +85°C |
Performance Specifications
| Type | Max. Insertion Loss (dB) | Max. Uniformity (dB) | Min. Return Loss (dB) | Max. PDL (dB) |
|---|---|---|---|---|
| 1×2 | 3.9 | 0.8 | 55 | 0.2 |
| 1×4 | 7.2 | 0.8 | 0.3 | |
| 1×8 | 10.3 | 0.8 | 0.3 | |
| 1×16 | 13.5 | 1.0 | 0.3 | |
| 1×32 | 16.8 | 1.5 | 0.3 | |
| 1×64 | 20.3 | 2.0 | 0.5 | |
| 2×2 | 4.2 | 0.8 | 55 | 0.2 |
| 2×4 | 7.5 | 1.0 | 0.3 | |
| 2×8 | 10.6 | 1.2 | 0.3 | |
| 2×16 | 13.9 | 1.5 | 0.3 | |
| 2×32 | 17.2 | 1.8 | 0.3 | |
| 2×64 | 20.8 | 2.0 | 0.5 |

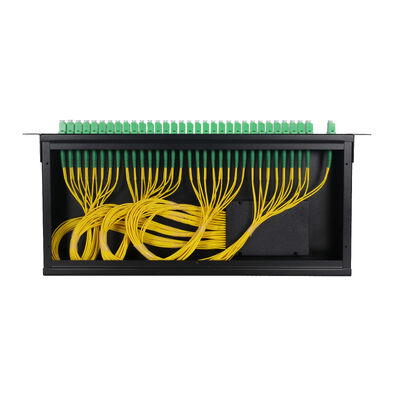

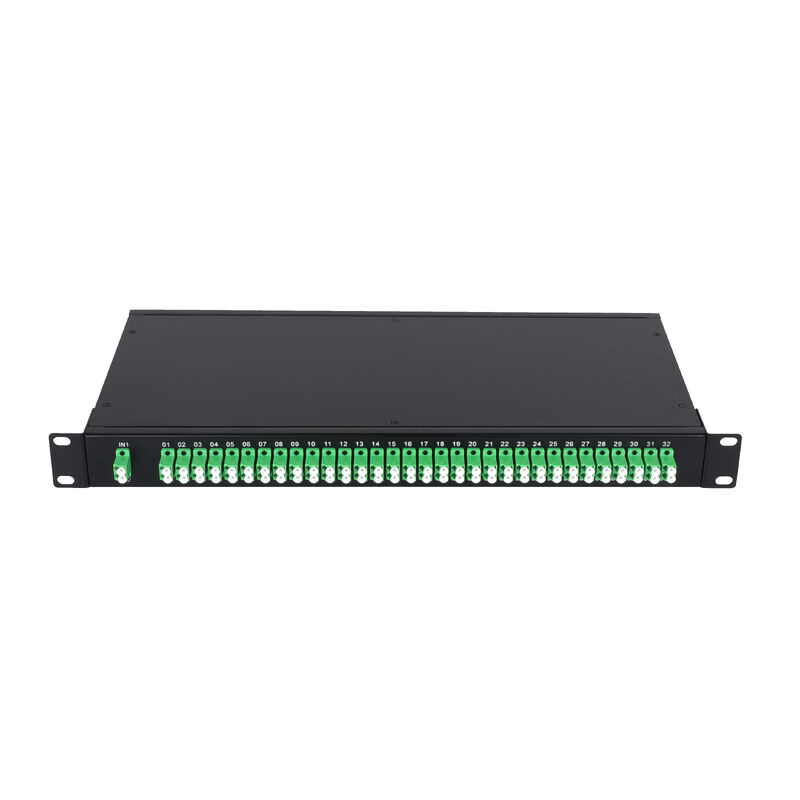

Product Images
