Outdoor GYTS+2*4mm² Optical Cable Steel wire 12F
Product Summary
GYTS+2*4mm² outdoor optical cable integrates 12 fibers with 2 power wires. Features water-blocking design, mechanical durability, and simultaneous data/power transmission. Ideal for telecom networks, FTTH, and monitoring projects with custom lengths available.
Product Custom Attributes
Product Name:
Outdoor GYTS+2*4mm² Optical Cable Steel Wire 12F
Fiber Count:
12
Clading:
125μm
Coating (±5µm):
250μm
Loose Tube Diameter(mm):
2 Mm
Loose Tube Material:
PBT/PP
Strength Member Center Reinforcement:
Steel Wire/Steel Wire With PE Cover
Sheath Sheath Material:
MDPE/HDPE
Color:
Black
Cable Weight (kg/km):
360
Operation Temperature:
-20℃~70℃
Fiber Brand:
Corning, YOFC, OFS, Draka
Highlight:
Outdoor GYTS fiber optic cable
,12F steel wire optical cable
,4mm² armored fiber cable
Basic Properties
Place of Origin:
China, Shenzhen
Brand Name:
DF/OEM/Nuetral
Certification:
CE/ROHS/REACH/ISO9001/ISO14001
Model Number:
Outdoor GYTS+2*4mm² Optical Cable Steel wire 12F
Trading Properties
Minimum Order Quantity:
negotiable
Price:
negotiable denpend on QTY
Packaging Details:
Blister box+Carton
Delivery Time:
5-9 working days depends on QTY
Payment Terms:
Western Union, T/T, MoneyGram/Paypal
Supply Ability:
1000PCS/Day
Product Description
Outdoor GYTS+2*4mm² Optical Cable Steel wire 12F
The fibers,250μm,are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound.
The cable core is FRP or metallic strength member( some structures need add PE as bedding layer in the strength member). Electric wires and tubes (and fillers) are stranded around the strength member into a compact and circular cable core. The cable core is filled with the filling compound to protect it from water ingress. After two sides PSP are longitudinally applied over the inner sheath ,the cable is completed with PE or LSZH outer sheath.
Outdoor GYTS+2*4mm² Optical Cable Applications
-
Telecommunications network;
-
Construction of communication base stations in villages, remote areas in cities and towns ;
-
Residential areas and buildings FTTH;
-
Security monitoring project;
-
Others occasion which information together with electric power at the same time.
Outdoor GYTS+2*4mm² Optical Cable Features
-
Good mechanical and temperature performance;
-
Opto and electricity integrated, fully save pipeline resources;
-
Electric and optical cable maintain relatively independent structure, easy to import; export and link when installation;
-
Electricity lines, telephone lines, television lines, network lines, monitor lines and data lines are multi-one network, saves costs;
-
Larger operating temperature range;
-
Larger construction temperature range;
-
Cable diameter and bending radius are small, freely install in small space and compatible with optical signal and electric energy transmission.
Outdoor GYTS+2*4mm² Optical Cable Parameter and Properties
| Optical fiber type | G.652D | G.655 | 50/125um | 62.5/125um | |
|
Attenuation |
@850nm |
... |
... |
≤3.5 dB/km |
≤3.5 dB/km |
|
@1300nm |
... |
... |
≤1.5 dB/km |
≤1.5 dB/km |
|
|
@1310nm |
≤0.36 dB/km | ≤0.40 dB/km |
... |
... |
|
|
@1550nm |
≤0.22 dB/km |
≤0.23dB/km |
... |
... |
|
|
Bandwidth |
@850nm |
... |
... |
≥500 MHz·km |
≥200 MHz·km |
|
@1300nm |
... |
... |
≥1000 MHz·km |
≥600 MHz·km |
|
|
Numerical Aperture |
... |
... |
0.200±0.015NA |
0.275±0.015NA |
|
|
Cable Cut-off Wavelengthλcc |
≤1260nm |
≤1480nm |
... |
... |
|

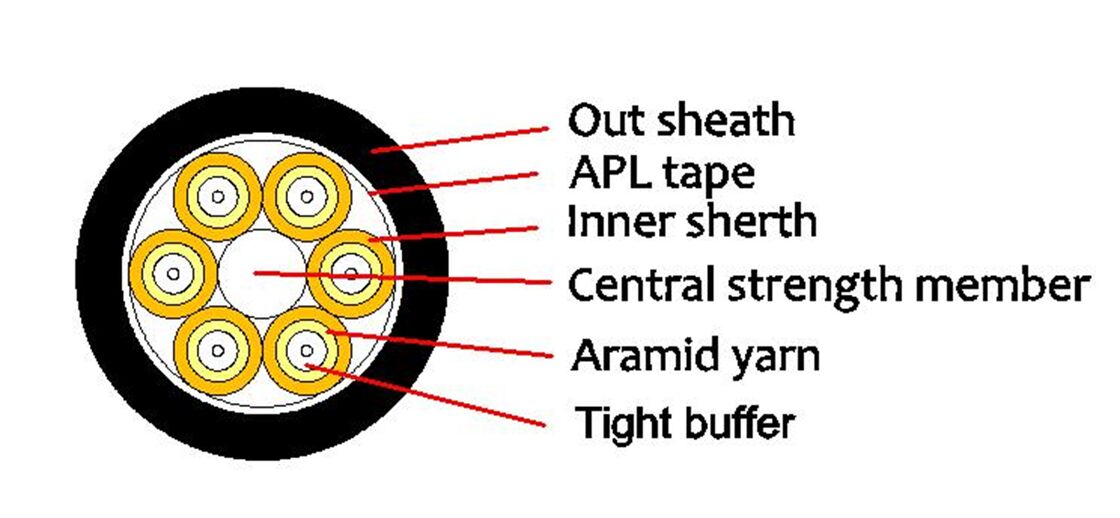

Outdoor GYTS+2*4mm² Optical Cable Structure
Other Requirements
Length of production optical cable:2000M
Optical cable outer sheath printing specifications, such as:
OPTICAL FIBER CABLE GYTS-12B1.3+2*4MM 12.5 MM/YY 00000M
