Φ 7.0 MM 2 Core LSZH RRH FIBER OPTIC Break-out Cable
Product Details:
| Place of Origin: | China, Shenzhen |
| Brand Name: | DF/OEM/Nuetral |
| Certification: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Model Number: | Φ 7.0 MM 2 Core LSZH RRH FIBER OPTIC Break-out Cable |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiable |
|---|---|
| Price: | negotiable denpend on QTY |
| Packaging Details: | Blister box+Carton |
| Delivery Time: | 5-9 working days depends on QTY |
| Payment Terms: | Western Union, T/T, MoneyGram/Paypal |
| Supply Ability: | 1000PCS/Day |
|
Detail Information |
|||
| Product Name: | Φ 7.0 MM 2 Core LSZH RRH FIBER OPTIC Break-out Cable | Core Diameter μm: | 9 、62.5、50 |
|---|---|---|---|
| Cladding Diameter μm: | 125± 1.0 | Coating Diameter μm: | 245± 10 |
| Attenuation(max.): | 850nm 3.5 、1300nm 1.5、 1310nm 0.45、1550nm 0.3 | Buffer Diameter: | 850µm±50µm |
| Fiber Count: | 2 | Buffer Material: | LSZH |
| Jacket Diameter: | 7.0 (0/-0.2) Mm | Tension (Long Term) N: | 200 |
| Operation Temperature C: | -30~+70 | Crush (Long Term) N/ 10cm: | 1100 |
| Fiber Brand: | Corning, YOFC, OFS, Draka | ||
| Highlight: | 2 core LSZH fiber optic cable,7.0mm fiber optic breakout cable,RRH fiber optic cable with warranty |
||
Product Description
Φ 7.0 MM 2 Core LSZH RRH Fiber Optic Break-out Cable
High-performance fiber optic break-out cable designed for reliable data transmission in demanding industrial environments.
Applications
- Optical fiber active connection jumper or tail fiber
- Indoor shaft stage and forced ventilation level wiring
- Interconnection of instruments and communication equipment
Key Features
Protective Coating
Excellent protection and peeling performance
Flame Retardant
Tight sleeve optical fiber with superior flame retardant properties
Precision Engineering
Accurate geometric parameters ensure low welding loss and high efficiency
Technical Parameters
| Item | Unit | Specification |
|---|---|---|
| Core Diameter | μm | 9, 62.5, 50 |
| Cladding Diameter | μm | 125±1.0 |
| Core Non-circularity | % | ≤6.0 |
| Cladding Non-circularity | % | ≤2.0 |
| Core-cladding Concentricity | μm | ≤1.0 |
| Coating Diameter | μm | 245±10 |
| Cladding-coating Concentricity | μm | ≤12.5 |
| Attenuation (max.) | dB/km | 850nm: 3.5, 1300nm: 1.5, 1310nm: 0.45, 1550nm: 0.3 |

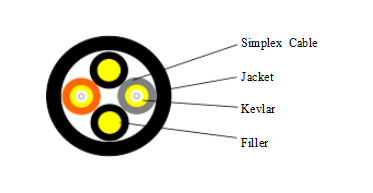

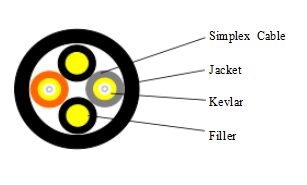

Cable Structure
| Component | Specifications |
|---|---|
| Fiber Count | 2 |
| Buffer | Diameter: 850µm±50µm, Material: LSZH |
| Simplex Cable | Diameter: 2.0mm±0.1mm, Material: LSZH, Color: SM: blue/yellow, MM: Orange/Gray |
| Filler | Diameter: 2.0mm±0.1mm, Material: LSZH, Color: Black |
| Strength Member | Kevlar |
| Jacket | Diameter: 7.0 (0/-0.2) mm, Material: LSZH, Color: Black |
Mechanical and Environmental Characteristics
| Characteristic | Unit | Specification |
|---|---|---|
| Tension (Long Term) | N | 200 |
| Tension (Short Term) | N | 400 |
| Crush (Long Term) | N/10cm | 1100 |
| Crush (Short Term) | N/10cm | 2200 |
| Min. Bend Radius (Dynamic) | mm | 20D |
| Min. Bend Radius (Static) | mm | 10D |
| Installation Temperature | °C | -20 to +60 |
| Operation Temperature | °C | -30 to +70 |
| Storage Temperature | °C | -30 to +70 |
Product Image
Why Choose TAKFLY?
Professional Manufacturer
- 25+ years manufacturing experience in fiber optic products
- 450+ assembly workers with 3+ years experience
- 10+ R&D Engineers
- 16 sets of Germany imported injection machines and production lines
- 30+ sets of testing equipment including OTDR, 3D, VFL, IL&RL test instruments
- OEM branding available
- Global exhibition participation: OFC, ECOC, CommunicAsia, and more
Quality Control
- Raw material incoming inspection before production
- Full inspection after every individual process
- Comprehensive half-done production checks
- Complete finished product inspection before packing
- Final spot check before shipping
Delivery & Packaging
- Samples: 1-3 working days
- Mass production: 3-7 working days
- Packaging options: Plastic Bag, Carton, and Pallet available
